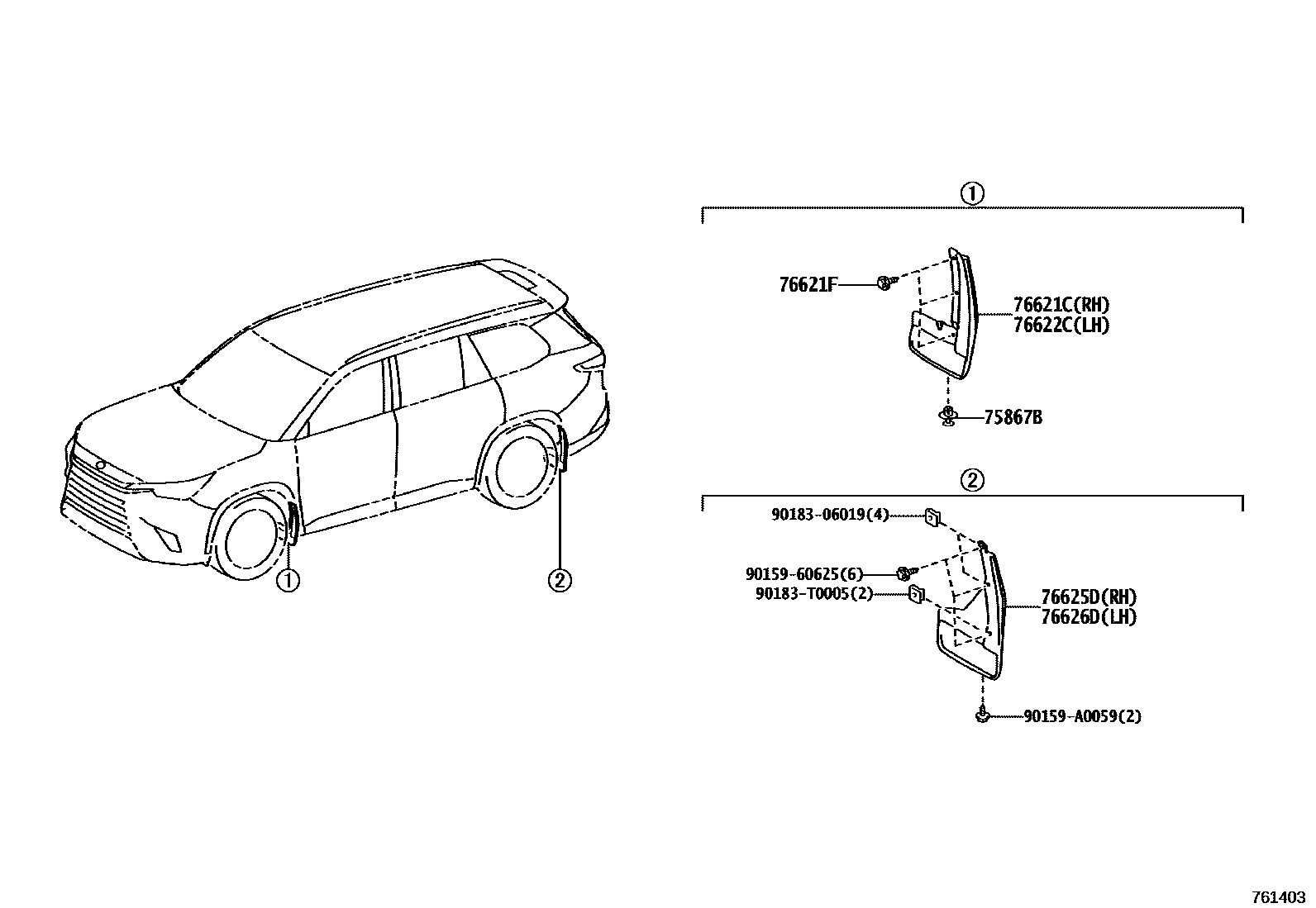

MUDGUARD & SPOILER

0001 1WITH(MUD GUARD) 0002 1

75867BCLIP, ROCKER PANEL MOULDING

main75867-06030×2iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

76621CMUDGUAD, FRONT FENDER, RH

main76621-YY240iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

76621FSCREW, NO.1

main90159-60625×6iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

76622CMUDGUARD, FRONT FENDER, LH

main76622-YY240iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-YY280iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-YY270iTAUH15;GYU15,TAUA1#..G,M,N202309

MUD GUARD-WITH

9015960625

main90159-60625

90159A0059

main90159-A0059

9018306019

main90183-06019

90183T0005

main90183-T0005

10 parts on this diagram · 2 diagrams in section
