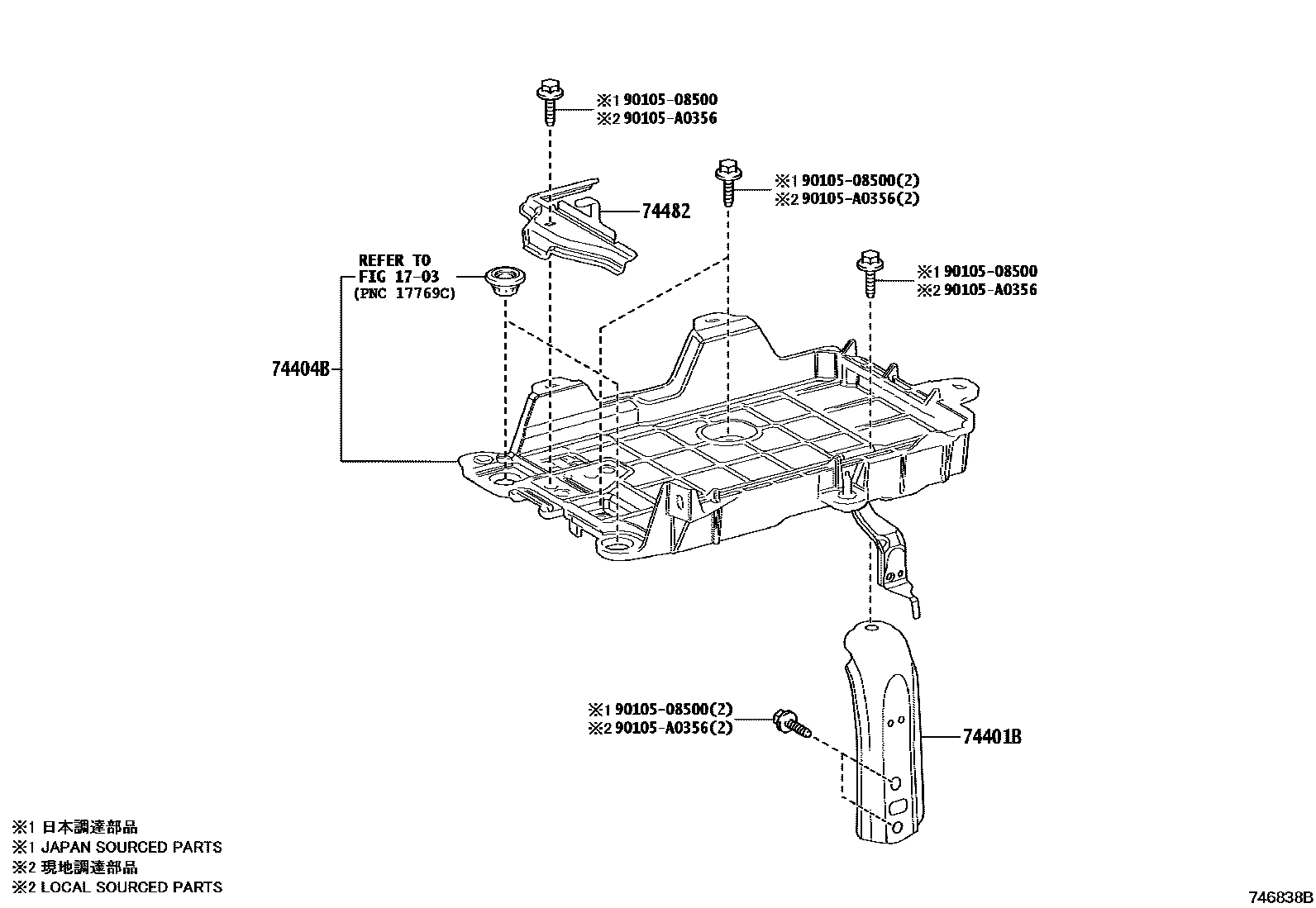

BATTERY CARRIER

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-06010iTAUA1#..G,M,N202309

74404BCLAMP SUB-ASSY, BATTERY

main74404-0R060iTAUA1#..G,M,N202309

74482CLAMP, BATTERY, NO.2

main74482-06050iTAUA1#..G,M,N202309

9010508500

main90105-08500

90105A0356

main90105-A0356

6 parts on this diagram · 2 diagrams in section
