REAR SEAT & SEAT TRACK

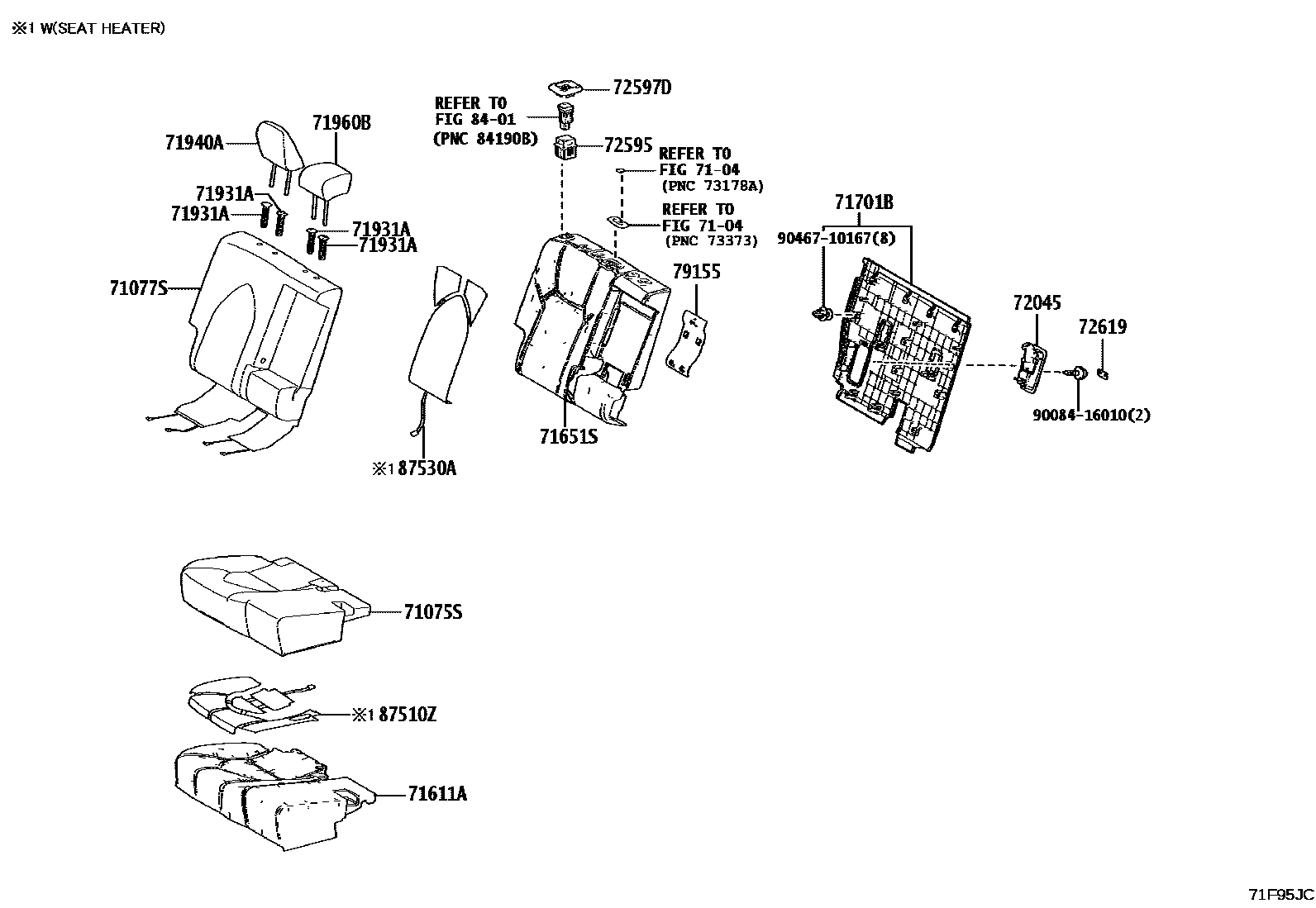

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-0EA90-B2i202309-202409
WHITE ASH,TRIM0#
main71075-0EA90-C4i202309-202409
BLACK,TRIM2#
main71075-0EA91-B3i202410
WHITE ASH,TRIM0#
main71075-0EA91-C5i202410
BLACK,TRIM2#
main71075-0EB80-B3supersedes 71075-0EB11-B3i202312-202409
WHITE ASH,TRIM0#
main71075-0EB80-C3supersedes 71075-0EB11-C3i202312-202409
BLACK,TRIM2#
main71075-0EB80-E3supersedes 71075-0EB11-E3i202312-202409
DK BROWN,TRIM4#
main71075-0EB81-B4i202410
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#; WHITE ASH,TRIM0#
main71075-0EB81-C4i202410
BLACK,TRIM2#; REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71075-0EB81-E4i202410
DK.SEPIA,TRIM4#; REAR NO.1 SEAT-CAPTAIN SEAT,DK.SEPIA,TRIM4#
main71075-0EB00-B2i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0EB00-C4i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0EB00-E4supersedes 71075-0EA91-E5i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK BROWN,TRIM4#
main71075-0EB01-B3i202410
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0EB01-C5i202410
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0EB01-E5supersedes 71075-0EA91-E5i202410
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
main71075-0EB70-B4supersedes 71075-0EB61-B5i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK/ WHITE ASH,TRIM0#
main71075-0EB70-C4supersedes 71075-0EB61-C5i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0EB71-B5supersedes 71075-0EB61-B5i202412
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH/BLACK,TRIM0#
main71075-0EB71-C5supersedes 71075-0EB61-C5i202412
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK/BLACK,TRIM2#
main71075-0EC10-B4supersedes 71075-0EB61-B5i202309-202409
UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71075-0EC10-C3supersedes 71075-0EB61-C5i202309-202409
UPGRADE PACKAGE,BLACK,TRIM2#
main71075-0EC11-B5supersedes 71075-0EB61-B5i202410
UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71075-0EC11-C4supersedes 71075-0EB61-C5i202410
UPGRADE PACKAGE,BLACK,TRIM2#
main71075-0EC20-B4supersedes 71075-0EB61-B5i202309-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0EC20-C3supersedes 71075-0EB61-C5i202309-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0EC21-B5supersedes 71075-0EB61-B5i202410
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0EC21-C4supersedes 71075-0EB61-C5i202410
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0ED00-B1i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#
main71075-0ED00-C2i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71075-0ED00-E2supersedes 71075-0EA91-E5i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,DK BROWN,TRIM4#
main71075-0ED01-B2i202410
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#
main71075-0ED01-C3i202410
REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71075-0ED01-E3supersedes 71075-0EA91-E5i202410
REAR NO.1 SEAT-CAPTAIN SEAT,DK.SEPIA,TRIM4#
main71075-0ED10-B1i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0ED10-C2i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0ED10-E2supersedes 71075-0EA91-E5i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK BROWN,TRIM4#
main71075-0ED11-B2i202410
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71075-0ED11-C3i202410
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71075-0ED11-E3supersedes 71075-0EA91-E5i202410
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0EC80-B4i202309-202409
WHITE ASH,TRIM0#
main71077-0EC80-C5i202309-202409
BLACK,TRIM2#
main71077-0EC80-C6i202409
BLACK,TRIM2#
main71077-0EC80-C8i202409
WHITE ASH,TRIM0#
main71077-0ED70-B3supersedes 71077-0ED01-C5i202312-202409
WHITE ASH,TRIM0#
main71077-0ED70-C3supersedes 71077-0ED01-C4i202312-202409
BLACK,TRIM2#
main71077-0ED70-C5i202409
BLACK,TRIM2#; REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71077-0ED70-C6i202409
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#; WHITE ASH,TRIM0#
main71077-0ED70-C7supersedes 71077-0ED01-E3i202409
DK.SEPIA,TRIM4#; REAR NO.1 SEAT-CAPTAIN SEAT,DK.SEPIA,TRIM4#
main71077-0ED70-E4i202312-202409
DK.SEPIA,TRIM4#
main71077-0EC90-B3i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EC90-C5i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EC90-C6i202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EC90-C7supersedes 71077-0EC80-E6i202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
main71077-0EC90-C8i202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EC90-E5supersedes 71077-0EC80-E6i202309-202408
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK BROWN,TRIM4#
main71077-0EC90-E6supersedes 71077-0EC80-E6i202408-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
main71077-0ED60-B2supersedes 71077-0ED50-C6i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0ED60-C2supersedes 71077-0ED50-C5i202309-202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0ED60-C5supersedes 71077-0ED50-C5i202409
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0ED60-C6supersedes 71077-0ED50-C6i202412
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EE00-B4supersedes 71077-0ED50-C6i202309-202409
UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71077-0EE00-C3supersedes 71077-0ED50-C5i202309-202409
UPGRADE PACKAGE,BLACK,TRIM2#
main71077-0EE00-C5supersedes 71077-0ED50-C5i202409
UPGRADE PACKAGE,BLACK,TRIM2#
main71077-0EE00-C6supersedes 71077-0ED50-C6i202409
UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71077-0EE10-B4supersedes 71077-0ED50-C6i202309-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EE10-C3supersedes 71077-0ED50-C5i202309-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EE10-C5supersedes 71077-0ED50-C5i202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EE10-C6supersedes 71077-0ED50-C6i202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EE70-B0i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#
main71077-0EE70-C3i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71077-0EE70-C4i202409
REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM2#
main71077-0EE70-C5supersedes 71077-0EC80-E6i202409
REAR NO.1 SEAT-CAPTAIN SEAT,DK.SEPIA,TRIM4#
main71077-0EE70-C6i202409
REAR NO.1 SEAT-CAPTAIN SEAT,WHITE ASH,TRIM0#
main71077-0EE70-E3supersedes 71077-0EC80-E6i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT,DK.SEPIA,TRIM4#
main71077-0EE80-B0i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EE80-C3i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EE80-C4i202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71077-0EE80-C5supersedes 71077-0EC80-E6i202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
main71077-0EE80-C6i202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#
main71077-0EE80-E3supersedes 71077-0EC80-E6i202309-202409
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),DK.SEPIA,TRIM4#
71611APAD, REAR SEAT CUSHION, RH
main71611-0E280i202309
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main71611-0E300supersedes 71611-0E290i202312
main71611-0E290i202309
REAR NO.1 SEAT-CAPTAIN SEAT
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0E340i202309
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main71651-0E360supersedes 71651-0E350i202312
main71651-0E350i202309
REAR NO.1 SEAT-CAPTAIN SEAT
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-0E060i202309
main71701-0E070i202309
REAR NO.1 SEAT-CAPTAIN SEAT; REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
71931ASUPPORT, REAR SEAT HEADREST
main71930-0R070-C0×2supersedes 71931-0R050-C0i202309
W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM0#,2#,4#; W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#; W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM0#,2#,4#
main71931-0R050-C0×2i202309
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM0#,2#,4#; W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#; W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM0#,2#,4#
71940AHEADREST ASSY, REAR SEAT
main71940-0E620-B0×2i202309-202405
WHITE ASH,TRIM0#
main71940-0E620-C0×2i202309-202405
BLACK,TRIM2#
main71940-0E620-E0×2i202309-202405
DK BROWN,TRIM4#
main71940-0E621-B0×2i202405-202409
WHITE ASH,TRIM0#
main71940-0E621-B3×2i202409
WHITE ASH,TRIM0#
main71940-0E621-C0×2i202405-202409
BLACK,TRIM2#
main71940-0E621-C2×2i202409
BLACK,TRIM2#
main71940-0E621-C3×2i202412
WHITE ASH,TRIM0#
main71940-0E621-E0×2i202405-202409
DK.SEPIA,TRIM4#
main71940-0E621-E1×2i202409
DK.SEPIA,TRIM4#
main71940-0E640-B0×2i202309-202405
WHITE ASH,TRIM0#
main71940-0E640-C0×2i202309-202405
BLACK,TRIM2#
main71940-0E640-E0×2i202309-202405
DK BROWN,TRIM4#
main71940-0E641-B0×2i202405-202409
WHITE ASH,TRIM0#
main71940-0E641-B3×2i202409
WHITE ASH,TRIM0#
main71940-0E641-C0×2i202405-202409
BLACK,TRIM2#
main71940-0E641-C3×2i202409
BLACK,TRIM2#
main71940-0E641-E0×2i202405-202409
DK.SEPIA,TRIM4#
main71940-0E641-E3×2i202409
DK.SEPIA,TRIM4#
main71940-0E630-B2×2supersedes 71940-0E621-C3i202309-202405
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#; UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71940-0E630-C1×2i202309-202405
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#; UPGRADE PACKAGE,BLACK,TRIM2#
main71940-0E631-B2×2supersedes 71940-0E621-C3i202405-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#; UPGRADE PACKAGE,WHITE ASH,TRIM0#
main71940-0E631-C1×2i202405-202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#; UPGRADE PACKAGE,BLACK,TRIM2#
main71940-0E631-C2×2i202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#; UPGRADE PACKAGE,BLACK,TRIM2#
main71940-0E631-C3×2supersedes 71940-0E621-C3i202409
UPGRADE PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM0#; UPGRADE PACKAGE,WHITE ASH,TRIM0#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0E440-B0i202309-202405
WHITE ASH,TRIM0#
main71960-0E440-C0i202309-202405
BLACK,TRIM2#
main71960-0E440-E0i202309-202405
DK BROWN,TRIM4#
main71960-0E441-B0i202405-202409
WHITE ASH,TRIM0#
main71960-0E441-B1i202409
WHITE ASH,TRIM0#
main71960-0E441-C0i202405-202409
BLACK,TRIM2#
main71960-0E441-C1i202409
BLACK,TRIM2#
main71960-0E441-E0i202405-202409
DK.SEPIA,TRIM4#
main71960-0E441-E1i202409
DK.SEPIA,TRIM4#
main71960-0E460-B0i202309-202405
WHITE ASH,TRIM0#
main71960-0E460-C0i202309-202405
BLACK,TRIM2#
main71960-0E460-E0i202309-202405
DK BROWN,TRIM4#
main71960-0E461-B0i202405-202409
WHITE ASH,TRIM0#
main71960-0E461-B1i202409
WHITE ASH,TRIM0#
main71960-0E461-C0i202405-202409
BLACK,TRIM2#
main71960-0E461-C1i202409
BLACK,TRIM2#
main71960-0E461-E0i202405-202409
DK.SEPIA,TRIM4#
main71960-0E461-E1i202409
DK.SEPIA,TRIM4#
72045COVER SUB-ASSY, RR SEAT TRACK, OUTER RH
main72045-0E010-C0i202309
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#
72595BASE, RECLINING REMOTE CONTROL, RH
main72595-0E020i202309
72597DBEZEL, RECLINING REMOTE CONTROL, RH
main72597-0E140-C0i202309
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#
72619COVER, REAR SEATBACK LOCK STRIKER
main72615-0E300-C0×2i202309
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#
79155PLATE, NO.1 SEATBACK
main79155-0E010i202309
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-0E600i202309
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT); SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
main87530-0E380i202309
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT); SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-0E380i202309
REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT); SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
9008416010
main90084-16010
9046710167
main90467-10167

20 parts on this diagram · 11 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
