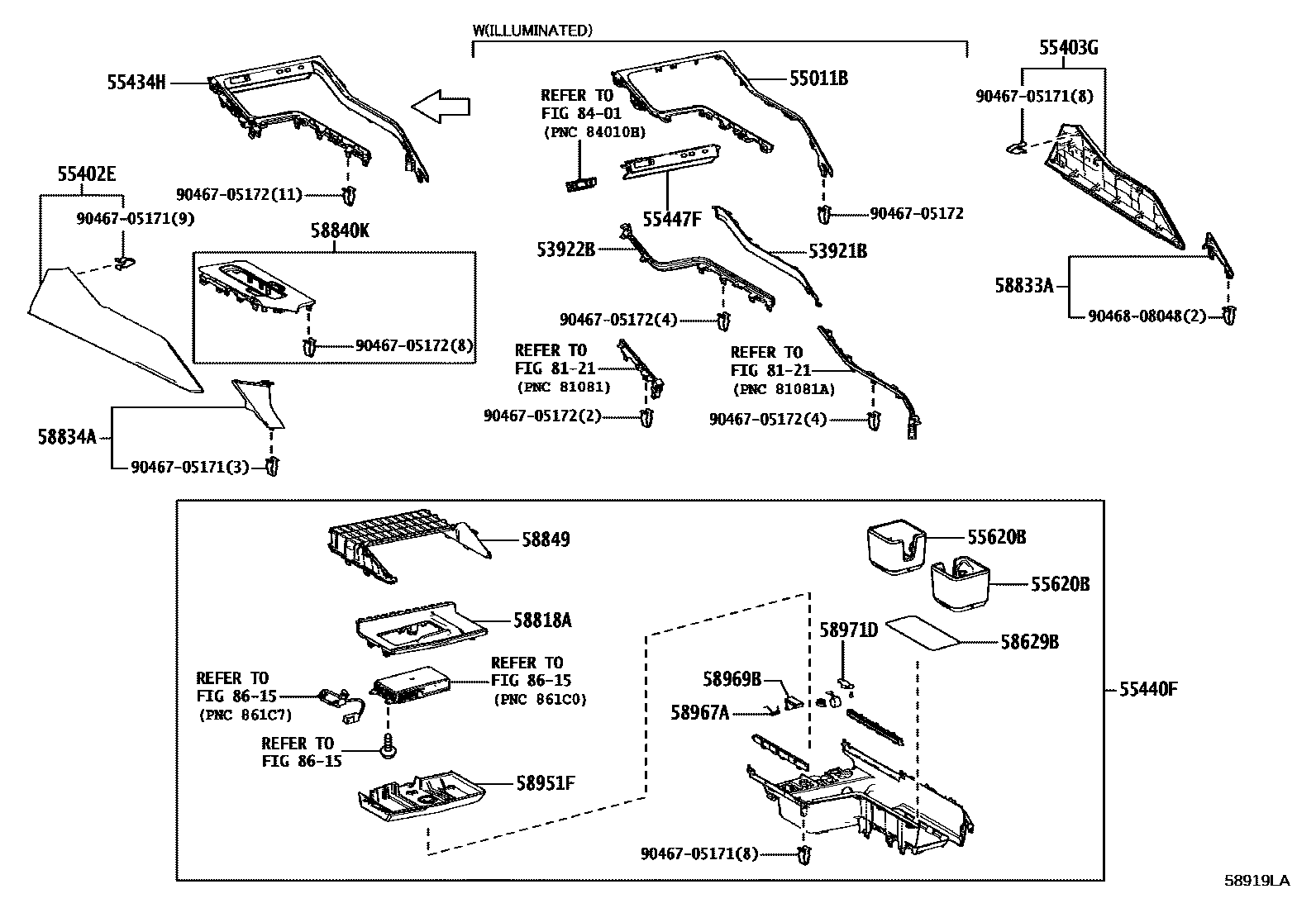

CONSOLE BOX & BRACKET

0001 1FRONT CENTER CONSOLE BOX 0002 1FRONT CENTER CONSOLE BOX 0003 1REAR SEAT CONSOLE BOX 0004 1REAR SEAT CONSOLE BOX

53921BGARNISH, FRONT PANEL, RH

main53921-0E080-C0iGYU15,TAUA1#..G; TAUA15,TAUH15..S202309

TSUYASUMI,TRIM0#,2#; TSUYASUMI,TRIM0#,2#,4#

53922BGARNISH, FRONT PANEL, LH

main53922-0E080-C0iGYU15,TAUA1#..G; TAUA15,TAUH15..S202309

TSUYASUMI,TRIM0#,2#; TSUYASUMI,TRIM0#,2#,4#

55011BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

main55011-0E130iGYU15,TAUA1#,TAUH15..G,S202309

55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1

main55402-0E100-C0iGYU15,TAUA1#..G,M; TAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#

55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2

main55403-0E210-C0iGYU15,TAUA1#..G,M; TAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-0E100iTAUA1#..M,N202309

main55434-0E160iTAUA10..M202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

55440FBOX ASSY, INSTRUMENT PANEL

main55440-0E020iTAUH15;GYU15,TAUA1#..G,M,N202309

55447FBASE, SWITCH HOLE, NO.2

main55447-0E100iGYU15,TAUA1#,TAUH15..G,S202309

main55447-0E110iTAUA10..G202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-0E170×2iTAUH15;GYU15,TAUA1#..G,M,N202309

58629BMAT, CENTER CONSOLE

main58629-0E030iTAUH15;GYU15,TAUA1#..G,M,N202309

58818ACOVER, CONSOLE BOX, FR

main58818-0E180iTAUA15..S202412

58833ACOVER, CONSOLE, UPPER

main58833-0E280iTAUA15..S202412

58834ACOVER, CONSOLE, LOWER

main58834-0E280iTAUA1#..M,N202309

main58834-0E290iTAUH15;GYU15,TAUA1#..G202309

58840KCOVER ASSY, SHIFTING HOLE

main58840-0E010iTAUA1#..M,N202309

main58840-0E020-C0iGYU15,TAUA1#..G; TAUH15202309

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#

58849COVER, CONSOLE BOX HOLE, NO.2

main58849-0E280iTAUH15;GYU15,TAUA1#..G,M,N202309

58951FDOOR, CONSOLE COMPARTMENT

main58951-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

58967ASPRING, CONSOLE DOOR STOPPER

main58967-06320iTAUH15;GYU15,TAUA1#..G,M,N202309

58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3

main58969-F6010iTAUH15;GYU15,TAUA1#..G,M,N202309

58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK

main58971-F6020iTAUH15;GYU15,TAUA1#..G,M,N202309

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9046705171

main90467-05171

9046705172

main90467-05172

9046808048

main90468-08048

25 parts on this diagram · 4 diagrams in section
