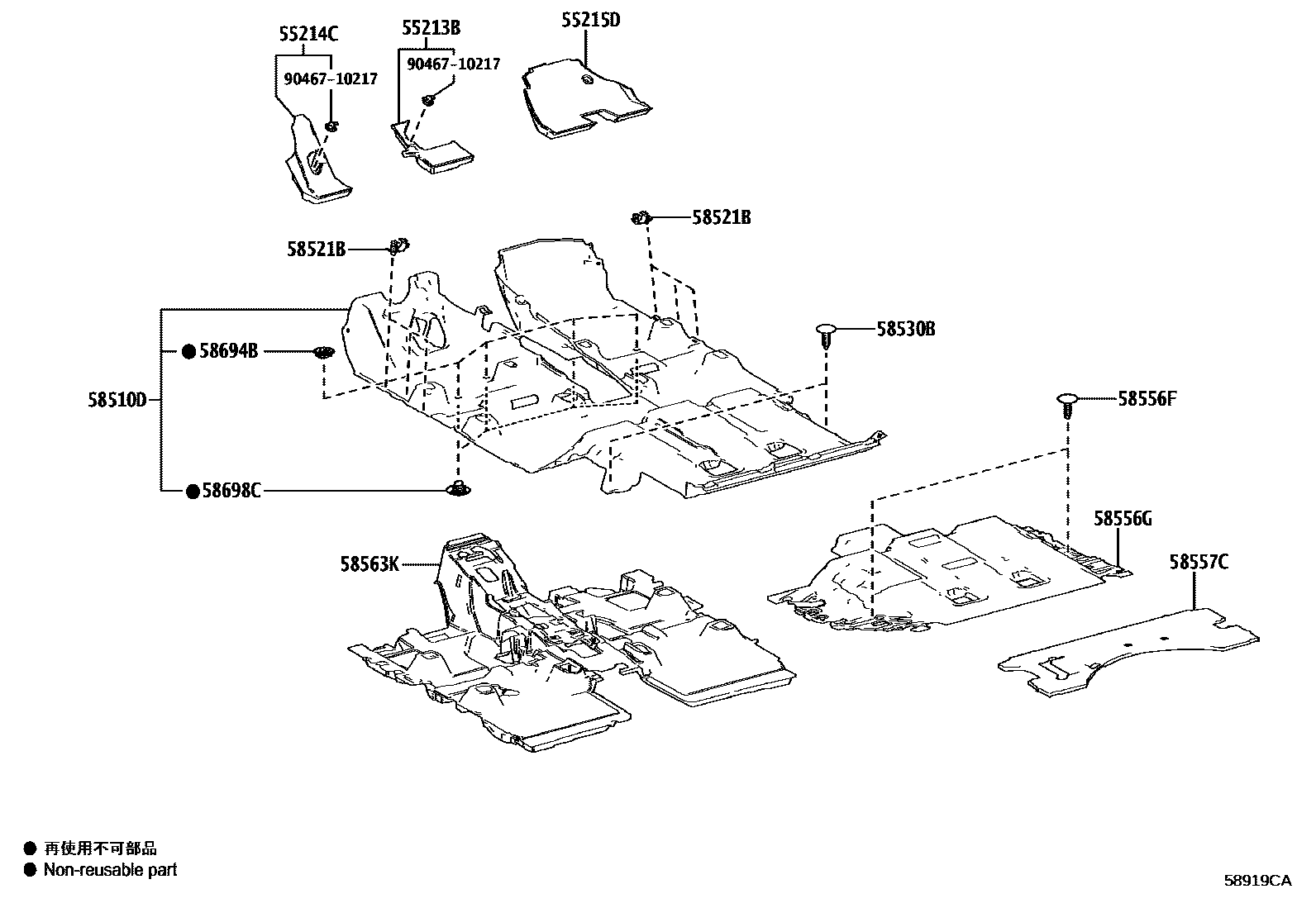

Toyota LEXUS TX SERIES — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

55214CPAD, DASH PANEL INSULATOR, NO.2

55215DPAD, DASH PANEL INSULATOR, NO.3

58510DCARPET ASSY, FLOOR, FRONT

58521BHOOK, FLOOR CARPET

58530BCLIP(FOR FRONT FLOOR CARPET)

58556FCLIP, REAR FLOOR SILENCER

58556GSILENCER, REAR FLOOR, NO.1

58557CSILENCER, REAR FLOOR, NO.2

58563KSILENCER, FRONT FLOOR

58694BPLATE, MAT SET, UPPER

58698CPLATE, MAT SET, LOWER

9046710217

90467-10217

13 parts on this diagram · 4 diagrams in section

MAT & CARPET for Toyota LEXUS TX SERIES

This section contains 19 genuine Toyota parts for the MAT & CARPET system of the Toyota LEXUS TX SERIES. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CLIP, REAR FLOOR BOARD, CARPET ASSY, FLOOR, FRONT.
