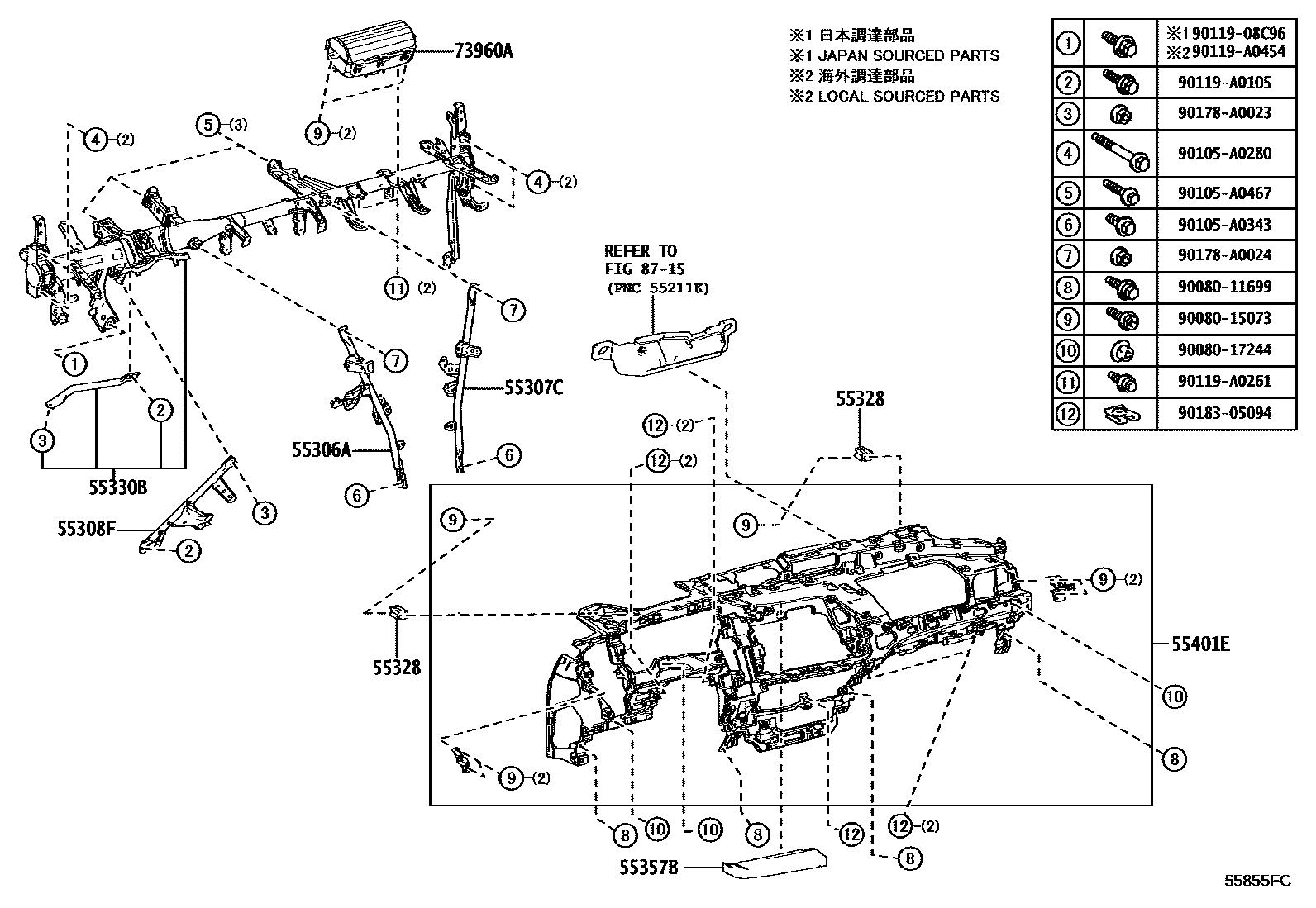

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E190iTAUH15;GYU15,TAUA1#..G,M,N202309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E190iGYU15202312

main55307-0E200iTAUA15..S202412

55308FBRACE SUB-ASSY, INSTRUMENT PANEL, NO.3

main55308-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iTAUH15;GYU15,TAUA1#..G,M,N202309

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E320iGYU15,TAUA1#,TAUH15202309

main55330-0E330iTAUA10..G,M;TAUA15..M,S202309-202509

HEAD UP DISPLAY-WITH

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E900iTAUH15;GYU15,TAUA1#..G,M,N202309

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E190iTAUH15;GYU15,TAUA1#..G,M,N202309

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9008011699

main90080-11699

9008015073

main90080-15073

9008017244

main90080-17244

90105A0280

main90105-A0280

90105A0343

main90105-A0343

90105A0467

main90105-A0467

9011908C96

main90119-08C96

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90119A0454

main90119-A0454

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094

22 parts on this diagram · 6 diagrams in section
