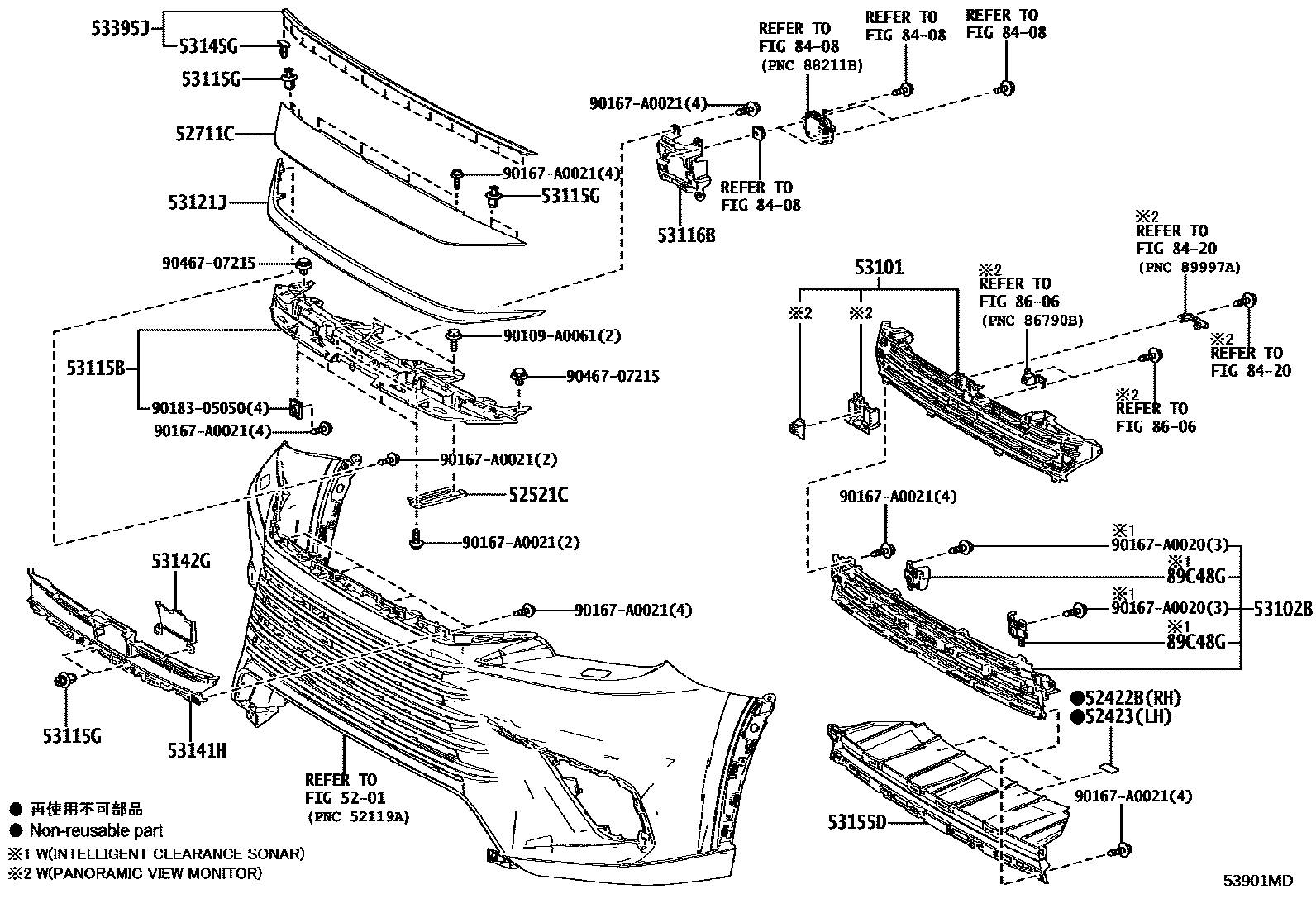

5201FRONT BUMPER & BUMPER STAY

52422BPAD, FRONT BUMPER, RH

main52462-0E130i202309

52423PAD, FRONT BUMPER, LH

main52462-0E130i202309

52521CRETAINER, FRONT BUMPER, UPPER

main52521-0E050×2i202309

52711CMOULDING, FRONT BUMPER

main52711-0E904i202309

53101GRILLE SUB-ASSY, RADIATOR

main53114-0E060i202309

NO PAINT REQ.

main53101-0E660i202412

NO PAINT REQ.,CANADA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CANADA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,CANADA SPEC&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CANADA SPEC&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMICVIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

main53101-0E670i202309-202412

NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(PANORAMICVIEW MONITOR); NO PAINT REQ.,CANADA SPEC&COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(PANORAMICVIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

53102BGRILLE SUB-ASSY, RADIATOR, LOWER

main53102-0E240supersedes 53111-0E540i202309

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM); PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

main53102-0E250i202309

53115BBRACKET, RADIATOR GRILLE

main53115-0E100i202309

53115GCLIP, RADIATOR GRILLE BRACKET

main90467-05063-C0×6i202309

BLACK

53116BBRACKET, RADIATOR GRILLE, NO.2

main53116-0E070i202309

53121JMOULDING, RADIATOR GRILLE, NO.1

main53121-0E330i202309

53141HGARNISH, RADIATOR GRILLE

main53141-0E180i202309

53142GGARNISH, RADIATOR GRILLE, NO.2

main53142-0E040i202309

main53143-48070i202412-202509

CANADA SPEC; CANADA SPEC&HEADLAMP LIGHT CONTROL-WITH; CANADA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); CANADA SPEC&HEADLAMP LIGHT CONTROL-WITH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); CANADA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM); CANADA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

53145GCLIP, RADIATOR GRILLE

main53145-60030×14i202309

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-0E020i202309

53395JSEAL, HOOD TO FRONT END PANEL

main53395-0E160i202309

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-0E410i202309

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),RH; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM),RH; RH

main89348-0E420i202309

LH; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR),LH; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM),LH

90109A0061

main90109-A0061

90167A0020

main90167-A0020

90167A0021

main90167-A0021

9018305050

main90183-05050

9046707215

main90467-07215
