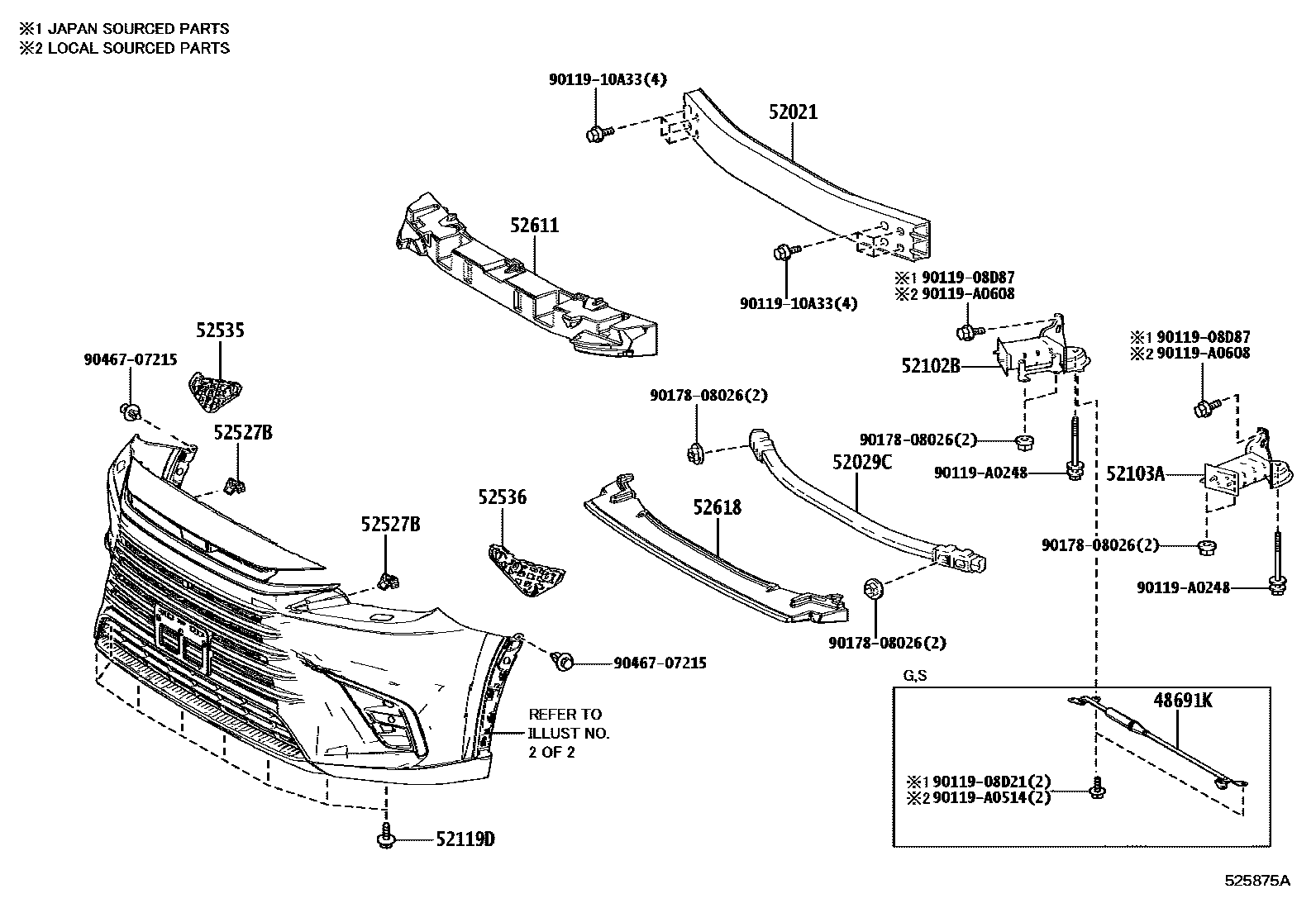

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

48691KDAMPER, SUSPENSION TOWER

main48691-48070iTAUA15..S202412

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0E170iTAUA1#..G,M,N202309-202508

main52021-0E190iTAUA15,TAUH15..S202309-202508

main52021-48180iGYU15202312-202408

main52021-48181iGYU15202409-202507

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-0E010iTAUH15;GYU15,TAUA1#..G,M,N202309

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0E040iTAUH15;GYU15,TAUA1#..G,M,N202309

52119DSCREW, NO.1

main90159-A0059×8iGYU15,TAUA1#,TAUH15202309

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02020×2iGYU15,TAUA1#,TAUH15202309

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E120iGYU15,TAUA1#,TAUH15202309

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E100iGYU15,TAUA1#,TAUH15202309

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E210iTAUH15;GYU15,TAUA1#..G,M,N202309

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

9011908D21

main90119-08D21

9011908D87

main90119-08D87

9011910A33

main90119-10A33

90119A0248

main90119-A0248

90119A0514

main90119-A0514

90119A0608

main90119-A0608

9017808026

main90178-08026

9046707215

main90467-07215

19 parts on this diagram · 3 diagrams in section
