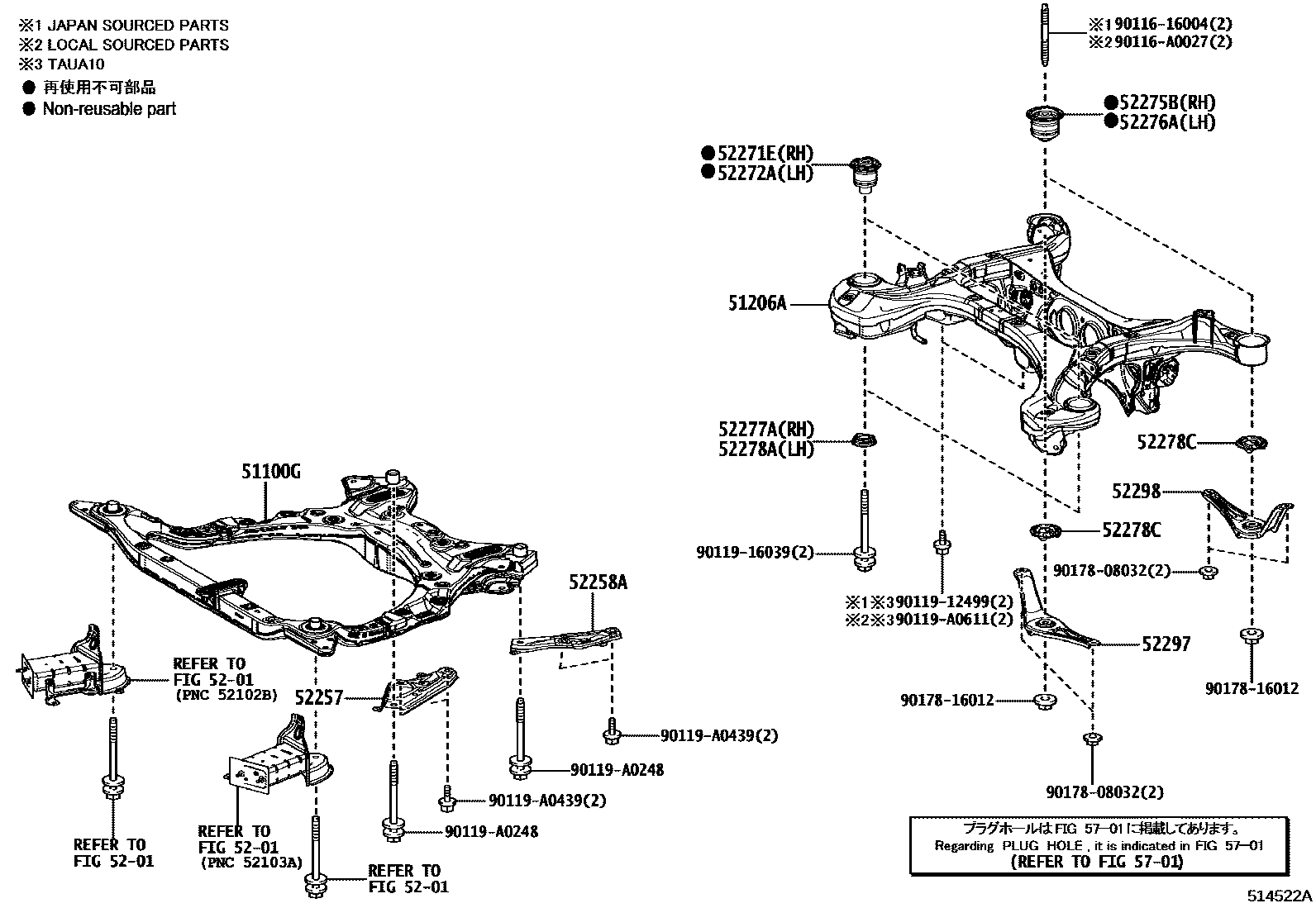

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51100GFRAME ASSY, FRONT

main51100-0E140iTAUA1#,TAUH15202309

main51100-0E170iGYU15202312

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E170iTAUA15..S202309

main51206-0E190iTAUH15202309

main51206-0E200iGYU15202312

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040iTAUH15;TAUA1#..G,M,N202309

main52257-40010iGYU15202312

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040iTAUA15..S202309

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E110iTAUH15202309

main52271-0E120iTAUA1#..G,M,N202309

main52271-40030iGYU15202312

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E110iTAUH15202309

main52271-0E120iTAUA1#..G,M,N202309

main52271-40030iGYU15202312

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E110iTAUA15..S202309

main52275-40030iGYU15202312

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E060iTAUH15;TAUA1#..G,M,N202309

main52276-40030iGYU15202312

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E110iTAUH15202309

main52277-0E120iTAUA1#..G,M,N202309

main52277-40030iGYU15202312

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E110iTAUH15202309

main52277-0E120iTAUA15..S202309

main52277-40030iGYU15202312

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-0E020iTAUH15;TAUA1#..G,M,N202309

main52278-40030iGYU15202312

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0E030iTAUA15..S202309

main52297-40010iGYU15202312

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-0E010iTAUH15;TAUA1#..G,M,N202309

main52298-40010iGYU15202312

5701HOLE PLUG

→ Go to FIG 57-01

9011616004

main90116-16004

90116A0027

main90116-A0027

9011912499

main90119-12499

9011916039

main90119-16039

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90119A0611

main90119-A0611

9017808032

main90178-08032

9017816012

main90178-16012

24 parts on this diagram · 6 diagrams in section
