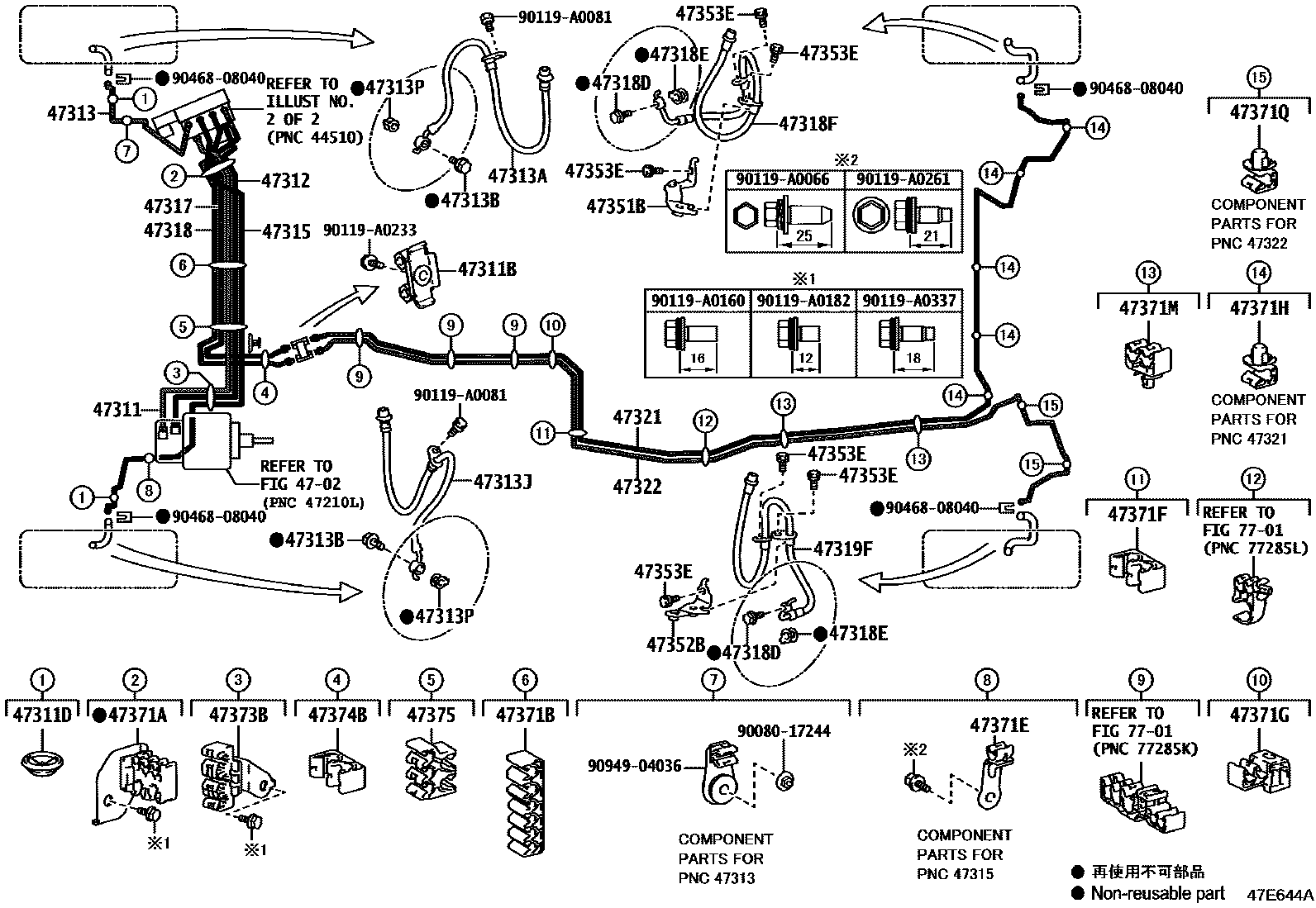

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0E140iTAUA15..S202412

main47311-0E150iGYU15,TAUH15202309

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10314iGYU15,TAUH15202309

main90412-A0011iTAUA1#..G,M,N202309

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iTAUH15;GYU15,TAUA1#..G,M,N202309

47312TUBE, FRONT BRAKE, NO.2

main47312-0E110iTAUA1#..G,M,N202309

main47312-0E120iGYU15,TAUH15202309

47313TUBE, FRONT BRAKE, NO.3

main47313-0E140iTAUA1#..G,M,N202309

main47313-0E150iTAUH15202309

main47313-0E180iGYU15202312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2147iTAUA1#..G,M,N202309

main90947-A2153iGYU15,TAUH15202309

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-A0001×2iTAUH15;GYU15,TAUA1#..G,M,N202309

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-A2148iTAUA1#..G,M,N202309

main90947-A2154iGYU15,TAUH15202309

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iTAUH15;GYU15,TAUA1#..G,M,N202309

47315TUBE, FRONT BRAKE, NO.5

main47315-0E240iTAUA1#..G,M,N202309

main47315-0E250iGYU15,TAUH15202309

47317TUBE, FRONT BRAKE, NO.7

main47317-0E260iTAUA1#..G,M,N202309

main47317-0E270iTAUH15202309

main47317-0E280iGYU15202312

47318TUBE, FRONT BRAKE, NO.8

main47318-0E260iTAUA1#..G,M,N202309

main47318-0E270iTAUH15202309

main47318-0E280iGYU15202312

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-A0001×2iTAUA15..S202412

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iTAUH15;GYU15,TAUA1#..G,M,N202309

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2143iTAUH15;GYU15,TAUA1#..G,M,N202309

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2144iTAUH15;GYU15,TAUA1#..G,M,N202309

47321TUBE, REAR BRAKE, NO.1

main47321-0E180iTAUH15;TAUA1#..G,M,N202309

main47321-0E190iGYU15202312

47322TUBE, REAR BRAKE, NO.2

main47322-0E180iTAUH15;TAUA1#..G,M,N202309

main47322-0E190iGYU15202312

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0E070iTAUH15;GYU15,TAUA1#..G,M,N202309

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0E070iTAUH15;GYU15,TAUA1#..G,M,N202309

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-A0081×6iTAUH15;GYU15,TAUA1#..G,M,N202309

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48190iTAUA1#..G,M,N202309

main47371-48230iGYU15,TAUH15202309

47371BCLAMP, BRAKE TUBE, NO.6

main47371-0E150iTAUA1#..G,M,N202309

main90949-01E22iGYU15,TAUH15202309

47371ECLAMP, BRAKE TUBE, NO.9

main47371-0R020iGYU15,TAUH15202309

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00903iTAUA15..S202412

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D11iTAUH15;TAUA1#..G,M,N202309

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D17×5iTAUH15;TAUA1#..G,M,N202309

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01E02×2iTAUA15..S202412

47371QCLAMP, BRAKE TUBE, NO.15

main90949-01D17×2iTAUH15;GYU15,TAUA1#..G,M,N202309

47373BCLAMP, BRAKE TUBE, NO.3

main47371-48240iGYU15,TAUH15202309

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00903iTAUH15;GYU15,TAUA1#..G,M,N202309

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E40iGYU15,TAUH15; TAUA1#..G,M,N202309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008017244

main90080-17244

90119A0066

main90119-A0066

90119A0081

main90119-A0081

90119A0160

main90119-A0160

90119A0182

main90119-A0182

90119A0233

main90119-A0233

90119A0261

main90119-A0261

90119A0337

main90119-A0337

9046808040

main90468-08040

9094904036

main90949-04036

44 parts on this diagram · 4 diagrams in section
