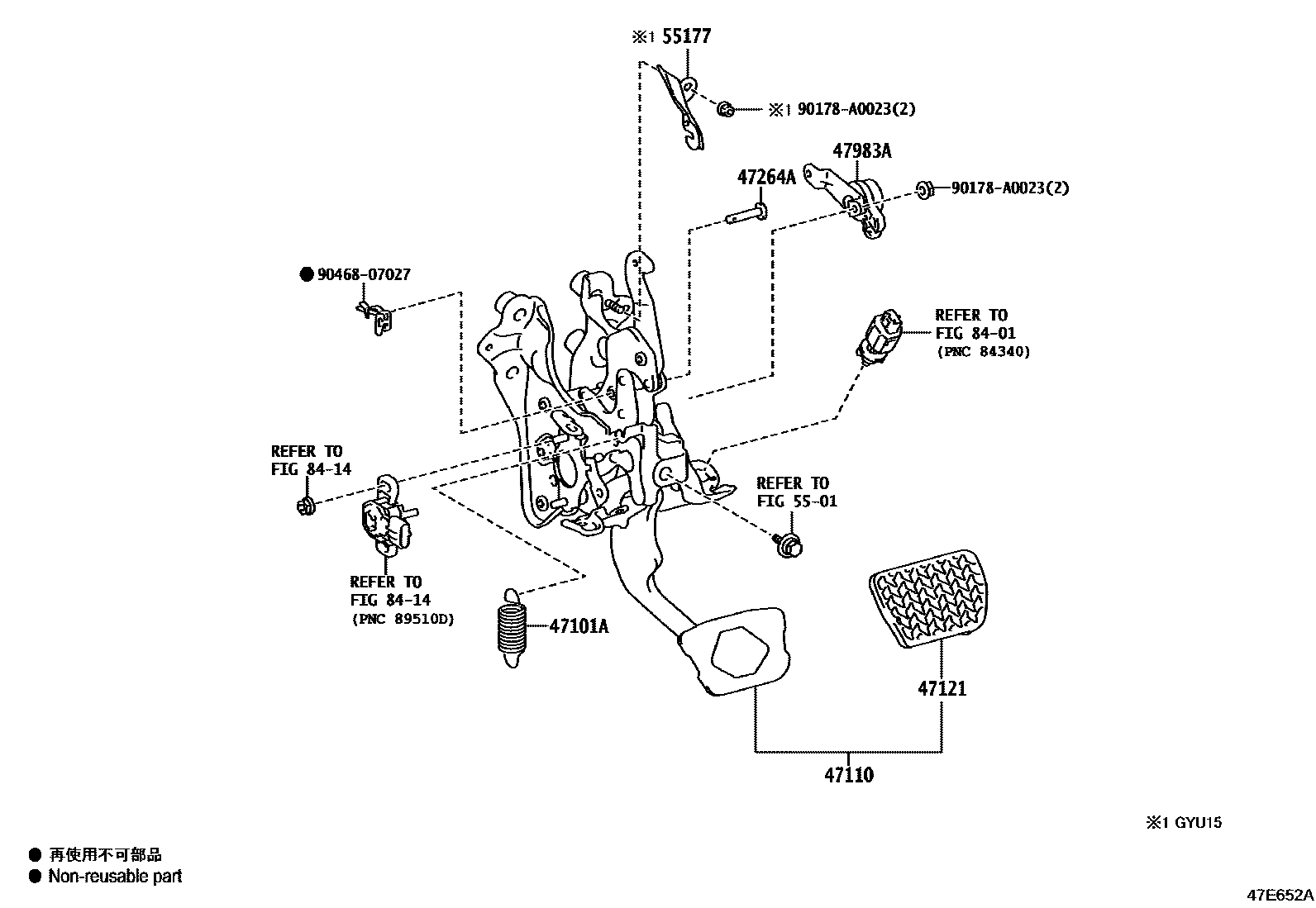

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iTAUA1#..G,M,N202309

main90507-19008iGYU15,TAUH15202309

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E240iTAUA1#..G,M,N202309

main47110-0E260iTAUH15202309

main47110-0E270iGYU15202312

main47110-0E280iTAUA15..S202412

47121PAD, BRAKE PEDAL

main47121-11020iTAUH15202309

main47121-62010iGYU15,TAUA1#..G,M,N202309

47264APIN(FOR PUSH ROD)

main90240-06028iTAUA1#..G,M,N202309

main90240-08078iGYU15,TAUH15202309

47983ADAMPER, BRAKE TRACTION

main47983-78010iGYU15,TAUH15202309

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55177BRACKET, BRAKE PEDAL SLIDING SUPPORT

main55177-48010iGYU15202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

90178A0023

main90178-A0023

9046807027

main90468-07027

11 parts on this diagram · 2 diagrams in section
