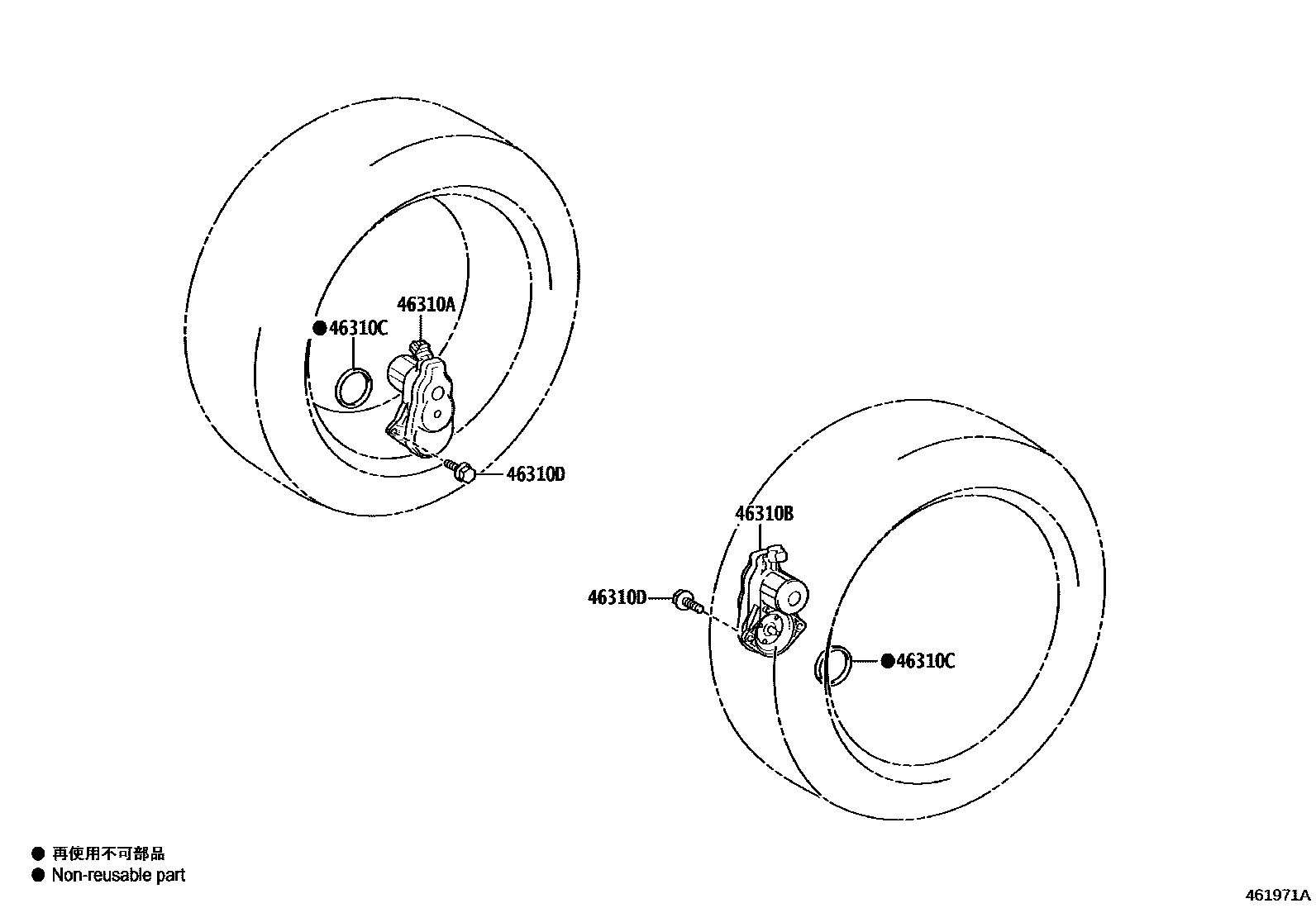

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-0A010iTAUA15..S202412

MARK 46310-0A010

main46310-33010iGYU15,TAUA1#..G,M,N; TAUH15202309

MARK 46310-33010

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-0A010iGYU15,TAUA1#..G,M,N202405

MARK 46310-0A010

main46310-33010iGYU15,TAUA1#..G,M,N; TAUH15202309

MARK 46310-33010

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iGYU15,TAUA1#..G,M,N; TAUH15202309

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702×4iTAUH15202309

main90016-AA703×2iTAUA15..S202412

4 parts on this diagram · 1 diagram in section
