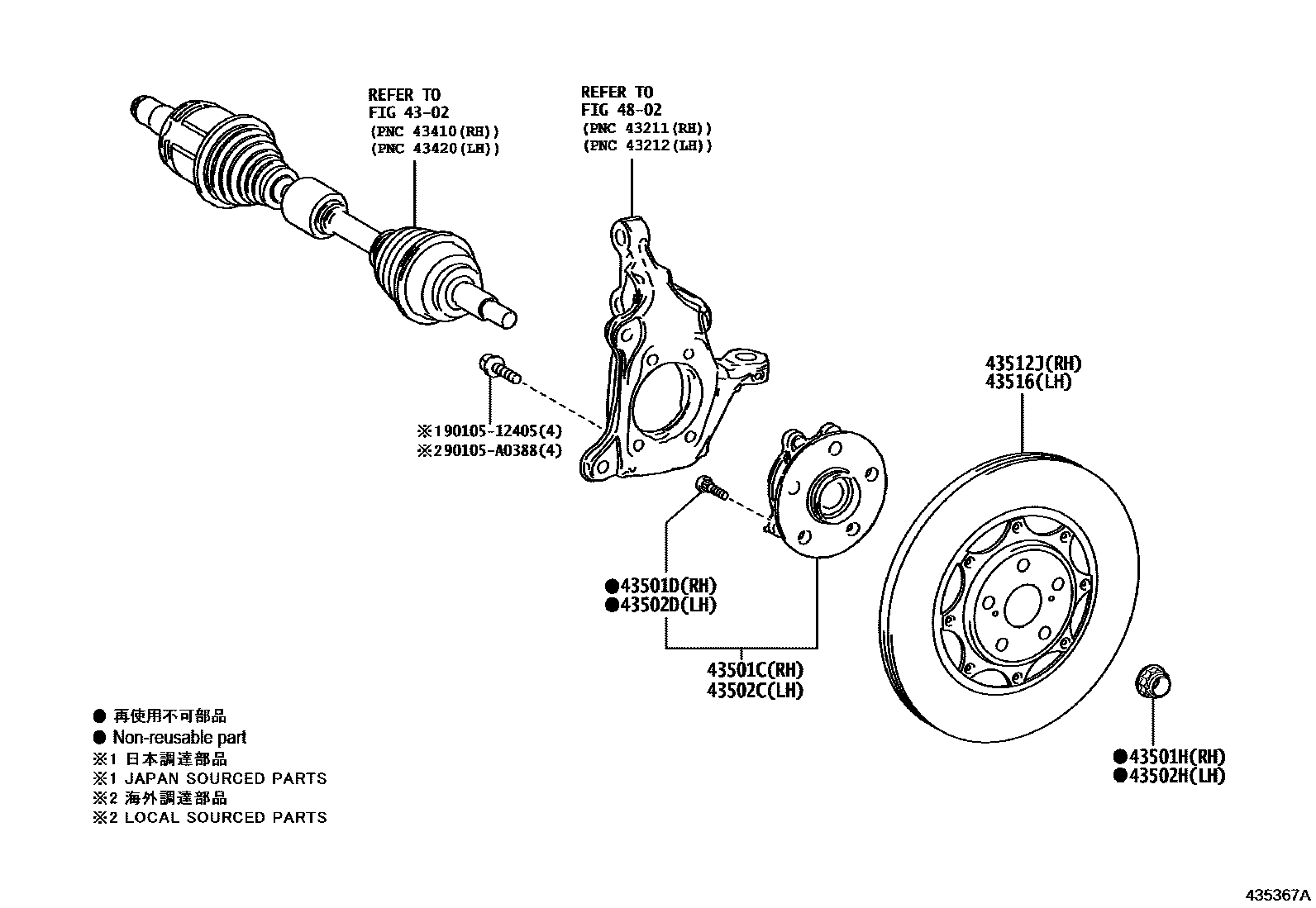

FRONT AXLE HUB

0001 1 0003 1

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5iTAUH15;GYU15,TAUA1#..G,M,N202309

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iTAUA15..S202412

(L)

main90177-22001iTAUH15;GYU15,TAUA1#..G,M,N202309

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5iTAUA15..S202412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iTAUH15;GYU15,TAUA1#..G,M,N202309

(L)

main90177-22001iTAUH15;GYU15,TAUA1#..G,M,N202309

(J)

43512JDISC, FRONT RH

main43512-0E120iTAUA1#..G,M,N202309

main43512-48200iGYU15,TAUH15202309

43516DISC, FRONT LH

main43512-0E120iTAUA1#..G,M,N202309

main43516-48020iGYU15,TAUH15202309

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105A0388

main90105-A0388

12 parts on this diagram · 2 diagrams in section
