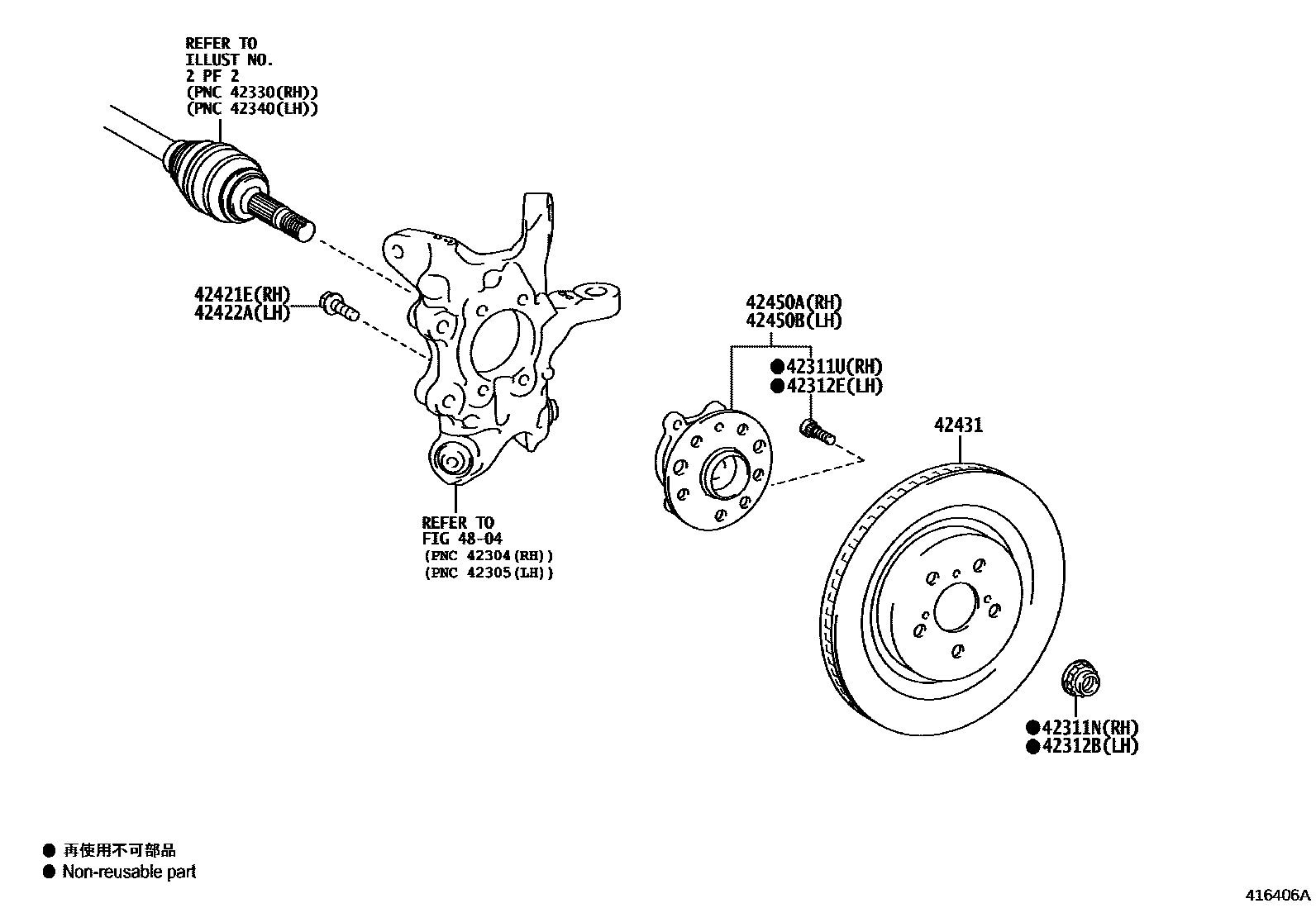

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90080-17238iTAUH15;GYU15,TAUA15..G,M,N202309

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083iTAUH15;GYU15,TAUA1#..G,M,N202309

42312BNUT(FOR REAR AXLE SHAFT LH)

main90080-17238iTAUH15;GYU15,TAUA15..G,M,N202309

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083iTAUH15;GYU15,TAUA1#..G,M,N202309

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017iTAUH15;GYU15,TAUA1#..G,M,N202309

(J)

main90110-A0012iTAUH15;GYU15,TAUA1#..G,M,N202309

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017iTAUH15;GYU15,TAUA1#..G,M,N202309

(J)

main90110-A0012iTAUA15..S202309

(L)

42431DISC, REAR

main42431-0E110iTAUH15;GYU15,TAUA1#..G,M,N202309

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E090iTAUH15;GYU15,TAUA15..G,M,N202309

main42450-0E120iTAUA10202309

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E090iTAUH15;GYU15,TAUA15..G,M,N202309

main42450-0E120iTAUA10202309

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

10 parts on this diagram · 4 diagrams in section
