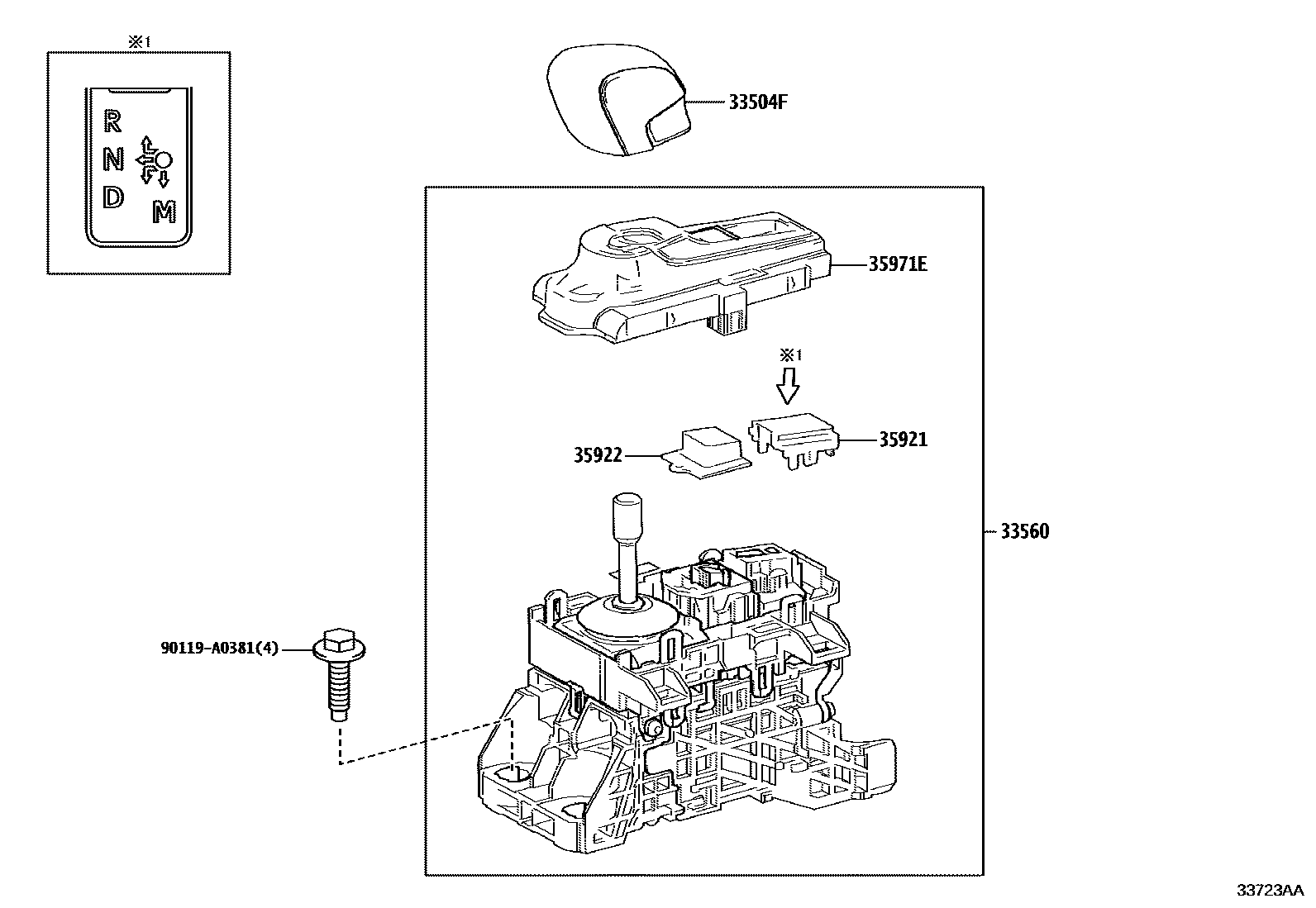

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-78010-C0iTAUA1#..M; TAUA1#..N202309

BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#

main33504-78020-C0iTAUA15,TAUH15..S202309

BLACK,TRIM0#,2#

main33504-78030-C0iGYU15,TAUA1#..G202309

BLACK,TRIM0#,2#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33550-0E380iTAUA1#202309

*614

main33550-0E390iTAUH15202309

*614

main33550-0E400iGYU15202312

*614

main33550-0E450iTAUA1#..G,M,S202412

ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

35921PLATE, CONTROL POSITION INDICATOR

main35921-F6010iTAUA1#,TAUH15202309

main35921-F6020iGYU15202312

35922KNOB, TRANSMISSION PARKING SWITCH

main35922-F6010iGYU15,TAUA1#,TAUH15202309

35971EHOUSING, POSITION INDICATOR

main35971-F6010iGYU15,TAUA1#,TAUH15202309

90119A0381

main90119-A0381

6 parts on this diagram · 1 diagram in section
