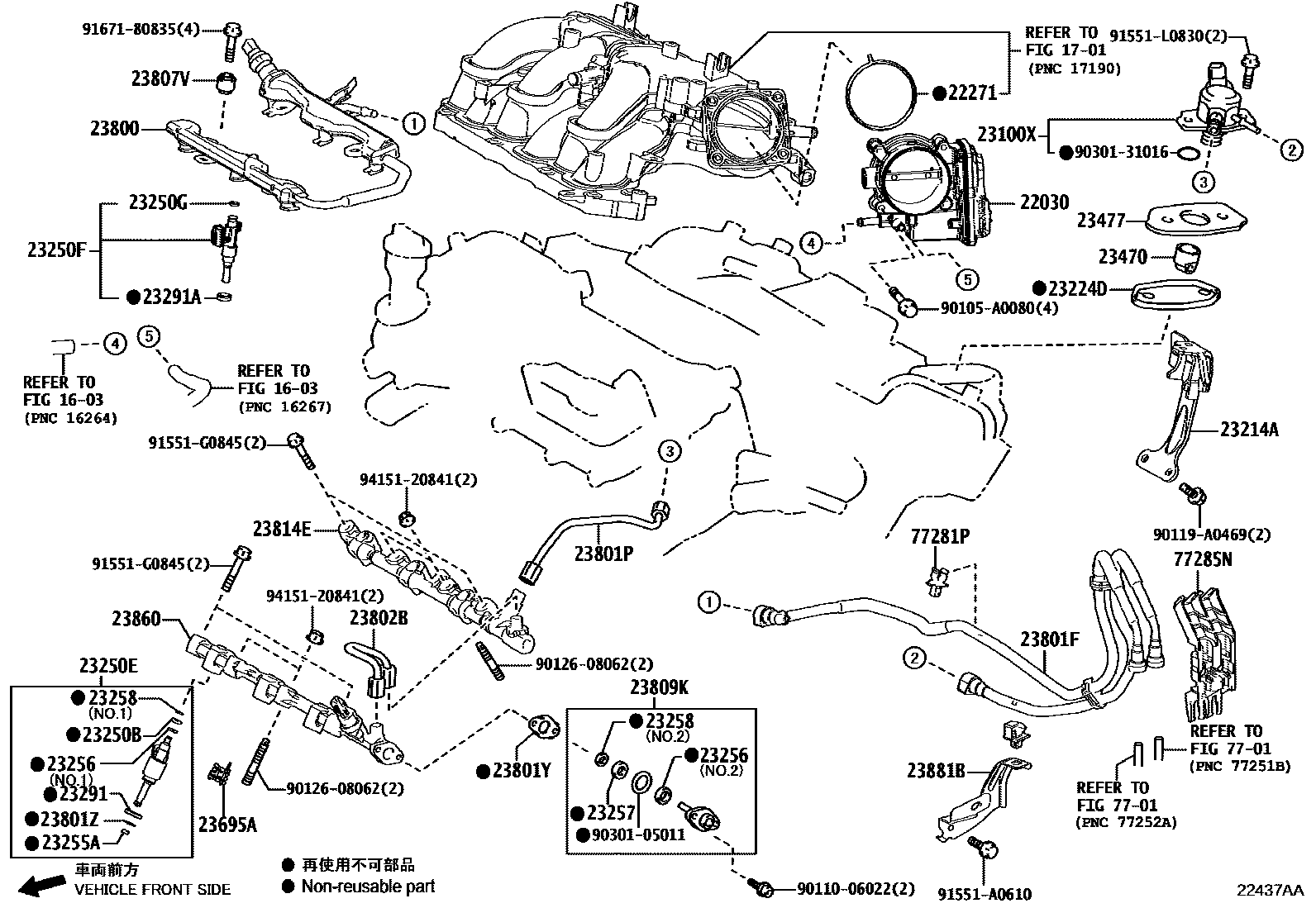

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P060i2GR..GYU15202312

main22030-25030iT24..TAUA15..S202412

(J)

main22030-F0030iT24..TAUA15..S202412

(L)

22271GASKET, THROTTLE BODY

main22271-25030iT24..TAUA15..S202412

main22271-31040i2GR..GYU15202312

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25050iT24..TAUA1#..G,M,N202309

(J)

main23101-31100i2GR..GYU15202312

main23101-F0020iT24..TAUH15;T24..TAUA1#..G,M,N202309

(L)

23214APROTECTOR, FUEL PUMP

main23214-31040i2GR..GYU15202312

23224DGASKET, FUEL PUMP SPACER

main23224-25011iT24..TAUA1#..G,M,N202309

(J)

main23224-31021i2GR..GYU15202312

main23224-F0011iT24..TAUH15;T24..TAUA1#..G,M,N202309

(L)

23250BRING, O(FOR FUEL INJECTOR)

main90301-04019×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

main90301-05013×6i2GR..GYU15202312

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25070-01×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

MARK 1

main23209-25070-02×4iT24..TAUA15..S202412

MARK 2

main23209-25070-03×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

MARK 3

main23209-25070-04×4iT24..TAUA15..S202412

MARK 4

main23209-25070-05×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

MARK 5

main23209-25070-06×4iT24..TAUA15..S202412

MARK 6

main23209-25070-07×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

MARK 7

main23209-25070-08×4iT24..TAUA15..S202412

MARK 8

main23209-25070-09×4iT24..TAUA15..S202412

MARK 9

main23209-31170-06×6i2GR..GYU15202312

MARK 6,REFER REPAIR MANUAL

main23209-31170-07×6i2GR..GYU15202312

MARK 7,REFER REPAIR MANUAL

main23209-31170-08×6i2GR..GYU15202312

MARK 8,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-39325×6i2GR..GYU15202312

main23209-F9110×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90301-07037×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

(J)

main90301-A0036×6i2GR..GYU15202312

(L)

23255ASEAL, FUEL INJECTOR

main23255-25020×4iT24..TAUA15..S202412

main23255-31030×6i2GR..GYU15202312

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×6i2GR..GYU15202312

NO.1

main23256-25020×4iT24..TAUA15..S202412

main23256-31010i2GR..GYU15202312

NO.2

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-47010i2GR..GYU15202312

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-25020×4iT24..TAUA15..S202412

main23258-31010i2GR..GYU15202312

NO.2

main23258-31020×6i2GR..GYU15202312

NO.1

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4iT24..TAUH15;T24..TAUA1#..G,M,N202309

(L)

main23291-28020×4iT24..TAUA1#..G,M,N202309

(J)

main23291-31030×6i2GR..GYU15202312

23291AINSULATOR, INJECTOR VIBRATION

main23291-25020×4iT24..TAUA15..S202412

main23291-28020×6i2GR..GYU15202312

23470LIFTER ASSY, FUEL PUMP

main23470-25010i2GR..GYU15202312

main23470-25020iT24..TAUA15..S202412

(J)

main23470-F0020iT24..TAUA15..S202412

(L)

23477GUIDE, FUEL PUMP LIFTER

main23477-25020iT24..TAUA1#..G,M,N202309

(J)

main23477-31020i2GR..GYU15202312

main23477-F0020iT24..TAUA15..S202412

(L)

23695ACLAMP, NOZZLE HOLDER

main23695-25020×4iT24..TAUA15..S202412

main23695-31020×6i2GR..GYU15202312

23800PIPE ASSY, FUEL DELIVERY W/SENSOR

main23800-31040i2GR..GYU15202312

23801FHOSE, FUEL, NO.1

main23801-31360i2GR..GYU15202312

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25040iT24..TAUH15;T24..TAUA1#..G,M,N202309

main23801-31210i2GR..GYU15202312

23801YGASKET

main23893-47010i2GR..GYU15202312

23801ZRING, SNAP(FOR FUEL PIPE)

main90520-14004×6i2GR..GYU15202312

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31160i2GR..GYU15202312

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-25011iT24..TAUA1#..G,M,N202309

(J)

main23807-F0011iT24..TAUA15..S202412

(L)

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08023×4i2GR..GYU15202312

23809KPLUG SUB-ASSY, FUEL PIPE

main23809-47010i2GR..GYU15202312

23814EPIPE, FUEL DELIVERY, RH

main23807-31110i2GR..GYU15202312

23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH

main23860-31030i2GR..GYU15202312

23881BBRACKET, FUEL HOSE

main23881-31080i2GR..GYU15202312

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77281PCLAMP, FUEL HOSE

main77281-48140iGYU15202312

77285NCLAMP, FUEL TUBE, NO.1

main77285-40020iGYU15202312

90105A0080

main90105-A0080

9011006022

main90110-06022

90119A0469

main90119-A0469

9012608062

main90126-08062

9030105011

main90301-05011

9030131016

main90301-31016

91551A0610

main91551-A0610

91551G0845

main91551-G0845

91551L0830

main91551-L0830

9167180835

main91671-80835

9415120841

main94151-20841

46 parts on this diagram · 2 diagrams in section
