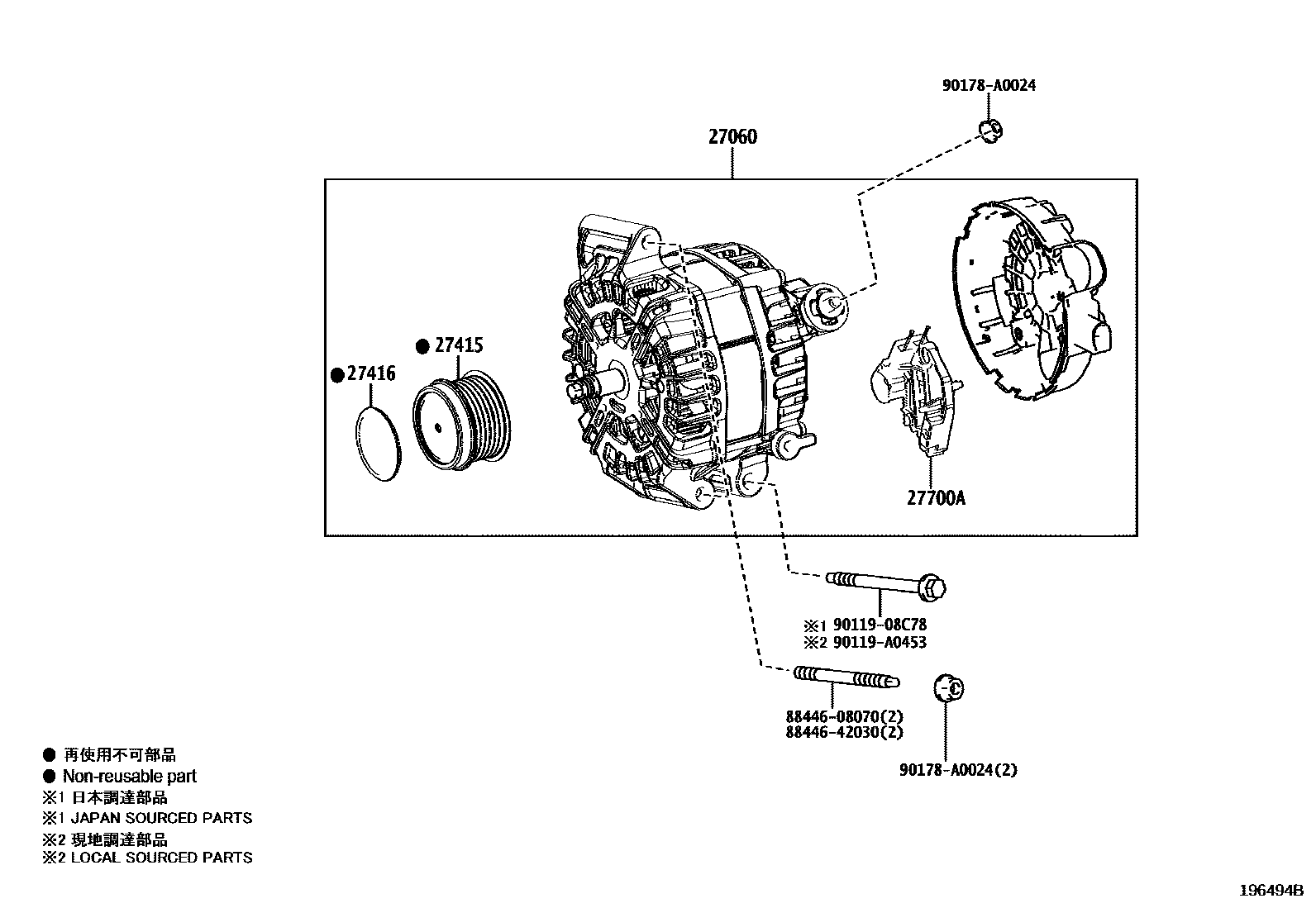

ALTERNATOR

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W020iT24..TAUA1#..G,M,N202309-202411

12V 180A

main27060-F0180iT24..TAUA1#202412

12V 180A

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W320iT24..TAUA1#..G,M,N202309

27416CAP, ALTERNATOR PULLEY

main27416-0W050iT24..TAUA1#..G,M,N202309

27700AREGULATOR ASSY, GENERATOR

main27700-0W030iT24..TAUA1#..G,M,N202309-202412

main27700-F0100iT24..TAUA1#202412

8844608070BOLT, IDLE PULLEY

main88446-08070

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

90119A0453

main90119-A0453

90178A0024

main90178-A0024

9 parts on this diagram · 1 diagram in section
