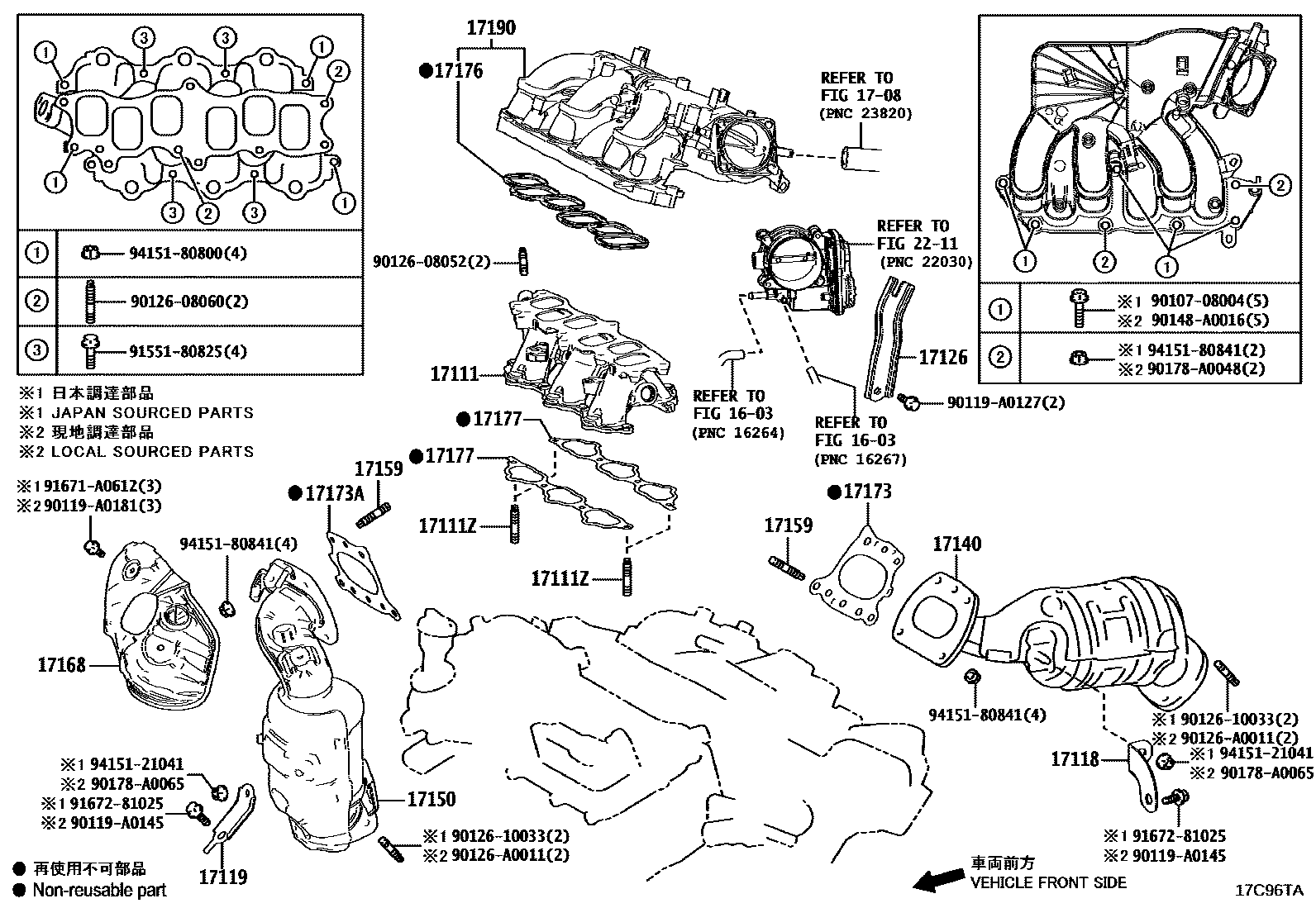

MANIFOLD
1603
1708
17111MANIFOLD, INTAKE
(J)
(L)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
(L)
(J)
(J)
(L)
17126STAY, SURGE TANK, NO.2
17140MANIFOLD ASSY, EXHAUST, RH
17150MANIFOLD ASSY, EXHAUST, LH
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
(L)
(J)
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17190TANK ASSY, INTAKE AIR SURGE
2211
9010708004
main90107-08004
90119A0127
main90119-A0127
90119A0145
main90119-A0145
90119A0181
main90119-A0181
9012608052
main90126-08052
9012608060
main90126-08060
9012610033
main90126-10033
90126A0011
main90126-A0011
90148A0016
main90148-A0016
90178A0048
main90178-A0048
90178A0065
main90178-A0065
9155180825
main91551-80825
91671A0612
main91671-A0612
9167281025
main91672-81025
9415121041
main94151-21041
9415180800
main94151-80800
9415180841
main94151-80841
34 parts on this diagram · 5 diagrams in section
