OIL FILTER

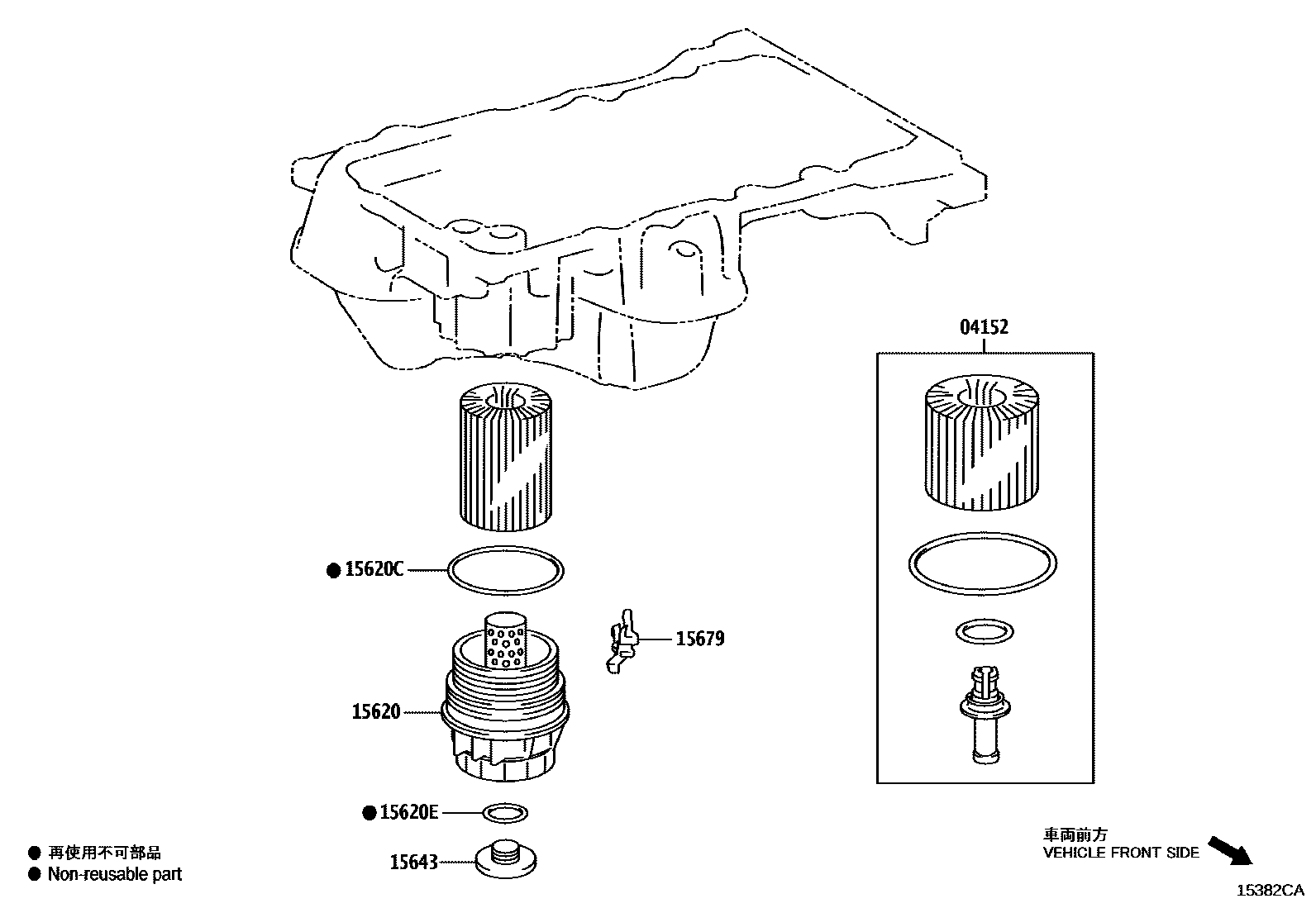

Parts diagram

04152ELEMENT KIT, OIL FILTER

main04152-31090i202312

15620CAP ASSY, OIL FILTER

main15620-31060i202312

ALUMINUM

main15620-36020i202312

PLASTIC

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i202312

15620EPLUG(FOR OIL FILTER CAP)

main96723-35028i202312

15643PLUG, OIL FILTER DRAIN

main15643-31050i202312

15679CLIP, OIL FILTER BRACKET

main15679-31050i202312

6 parts on this diagram · 2 diagrams in section
