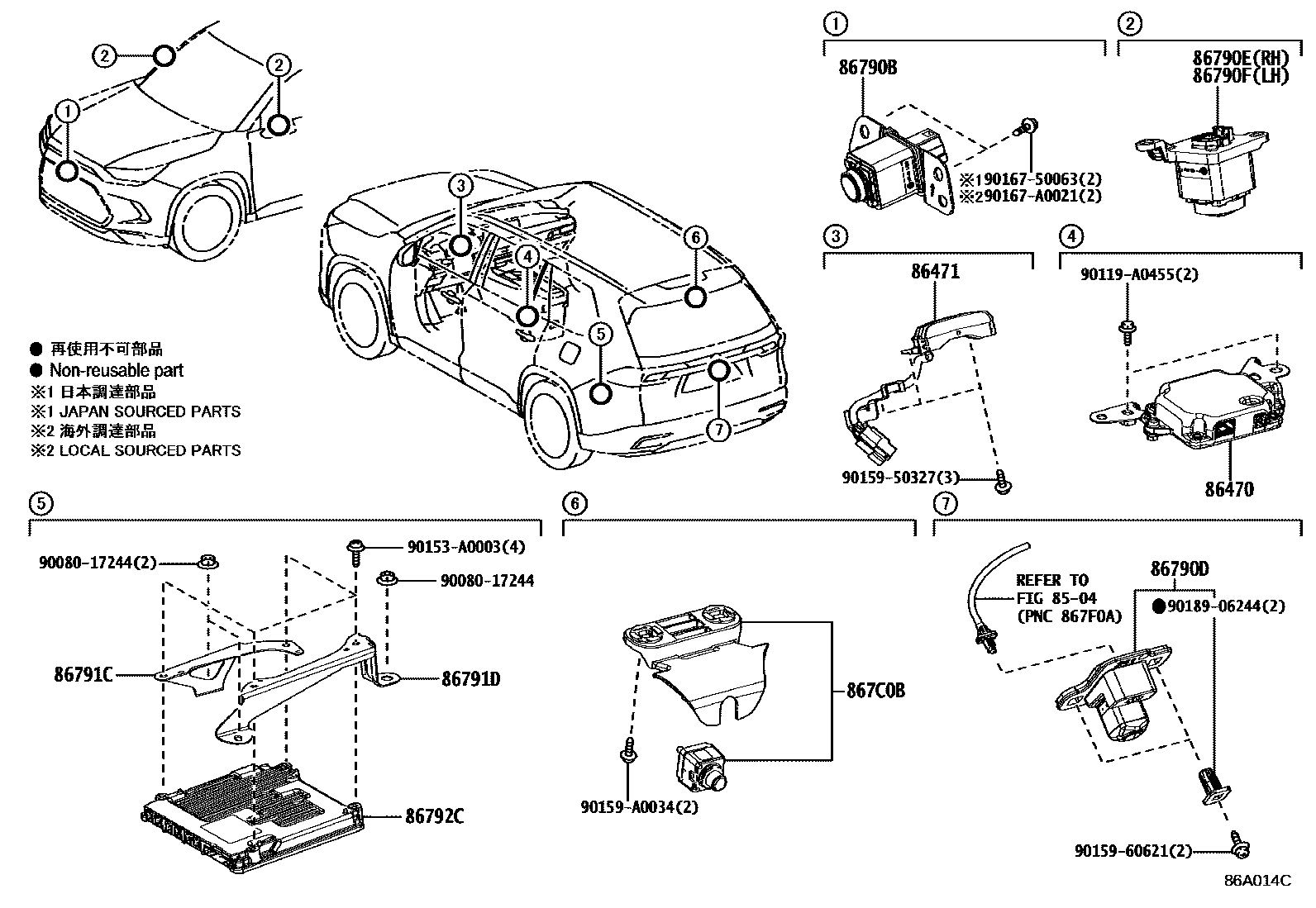

CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-48030iTASA15,TASH15..Z202306

86471CAMERA, DRIVER MONITOR

main86471-30040

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E460iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E450supersedes 867B0-0E250iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

main867B0-0E240iAASH1#,TASA1#..M,N202306-202309

main867B0-0E241iAASH1#,TASA1#..M,N202310

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E580iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E570iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-0E110iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-0E120iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86792CCOMPUTER, PARKING ASSIST

main86792-48860iTASA15,TASH15..Z202306

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-0E060iTASA15,TASH15..Z202306

9008017244

main90080-17244

90119A0455

main90119-A0455

90153A0003

main90153-A0003

9015950327

main90159-50327

9015960621

main90159-60621

90159A0034

main90159-A0034

9016750063

main90167-50063

90167A0021

main90167-A0021

9018906244

main90189-06244

20 parts on this diagram · 1 diagram in section
