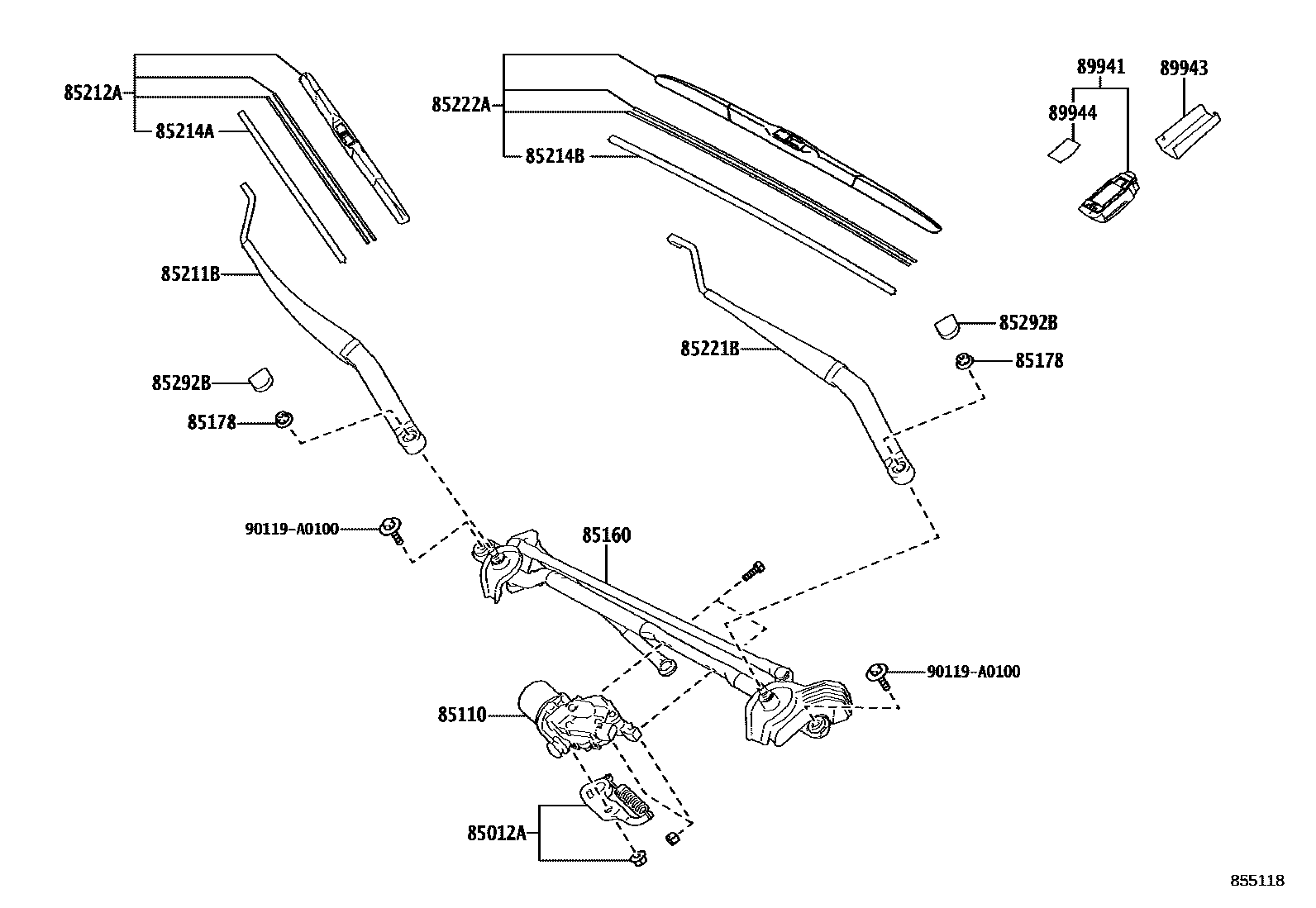

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iAASH1#,TASA1#,TASH15202306

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42270iAASH1#,TASA1#,TASH15202306

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E190iAASH1#,TASA1#,TASH15202306

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017iAASH1#,TASA1#,TASH15202306

85211BARM, FRONT WIPER, RH

main85211-0E180iAASH1#,TASA1#,TASH15202306

85212ABLADE, FR WIPER, RH

main85212-0E170iAASH1#,TASA1#,TASH15202306

85214ARUBBER, WIPER, RH

main85214-0E140iAASH1#,TASA1#,TASH15202306

85214BRUBBER, WIPER, LH

main85214-0E151iAASH1#,TASA1#,TASH15202306

85221BARM, FRONT WIPER, LH

main85221-0E190iAASH1#,TASA1#,TASH15202306

85222ABLADE, FR WIPER, LH

main85222-0E160iAASH1#,TASA1#,TASH15202306

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iAASH1#,TASA1#,TASH15202306

89941SENSOR, RAIN

main89941-78020iAASH1#,TASA1#,TASH15..G,V,Z202306

89943COVER, RAIN SENSOR

main89943-12040iAASH1#,TASA1#,TASH15..G,V,Z202306

89944TAPE, RAIN SENSOR

main89944-42020iAASH1#,TASA1#,TASH15..G,V,Z202306

90119A0100

main90119-A0100

15 parts on this diagram · 1 diagram in section
