HEV INVERTER

0001 1 0002 1 0003 1CONVERTER 0004 1TRANSAXLE

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

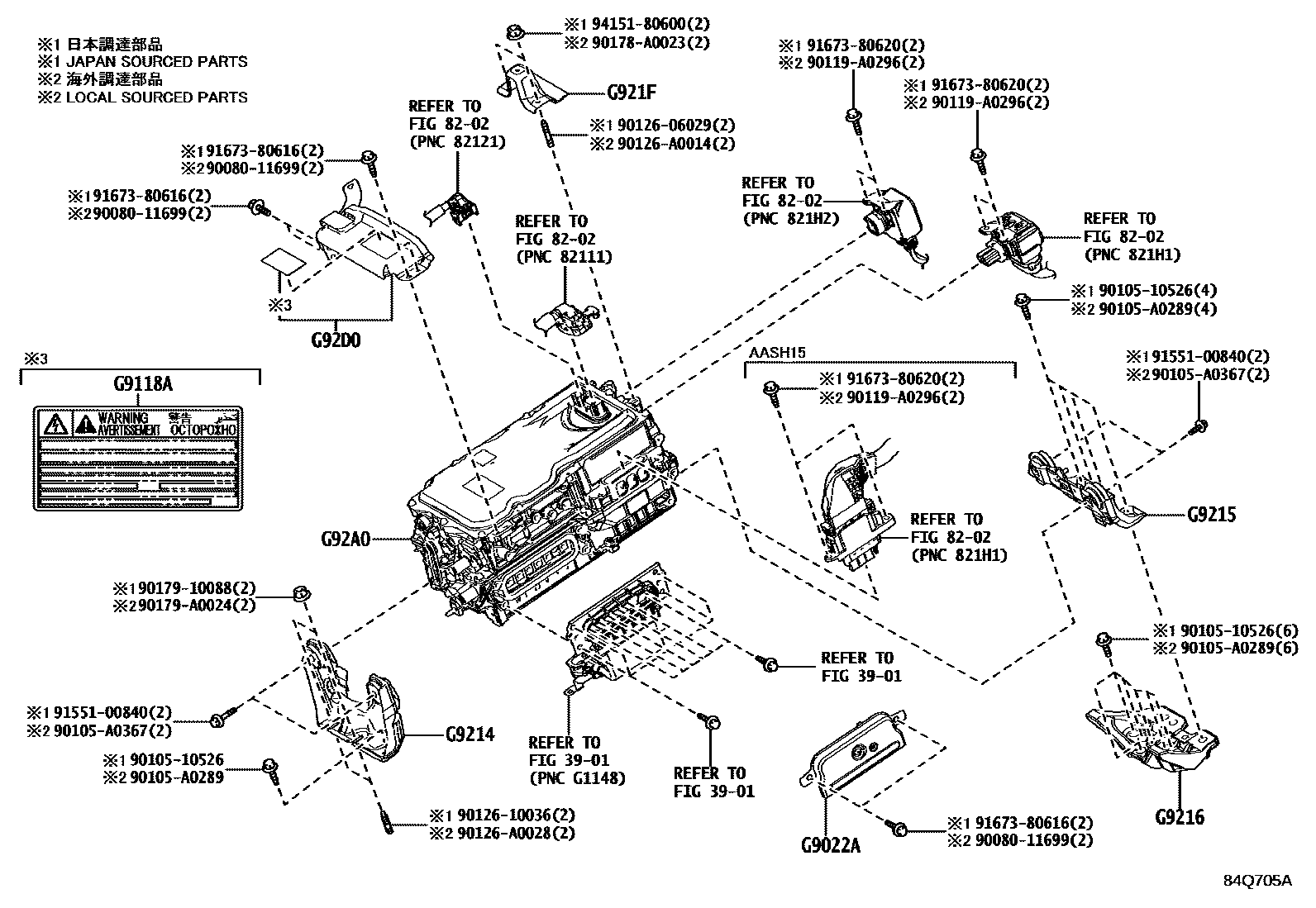

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAASH1#202306

mainG920348030iTASH15202306

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG91180E010iAASH1#202306

G9214BRACKET, INVERTER, NO.1

mainG921448070iAASH1#202306

G9215BRACKET, INVERTER, NO.2

mainG921542010iAASH1#202306

G9216BRACKET, INVERTER, NO.3

mainG92160E020iAASH1#202306

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAASH1#202306

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A048382iAASH15202306-202312

mainG92A048383iAASH15202401

mainG92A048392iAASH10202306-202312

mainG92A048393iAASH10202401

mainG92H048030iTASH15202306

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D00E010iAASH1#202306

9008011699

main90080-11699

9010510526

main90105-10526

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0296

main90119-A0296

9012606029

main90126-06029

9012610036

main90126-10036

90126A0014

main90126-A0014

90126A0028

main90126-A0028

90178A0023

main90178-A0023

9017910088

main90179-10088

90179A0024

main90179-A0024

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600
