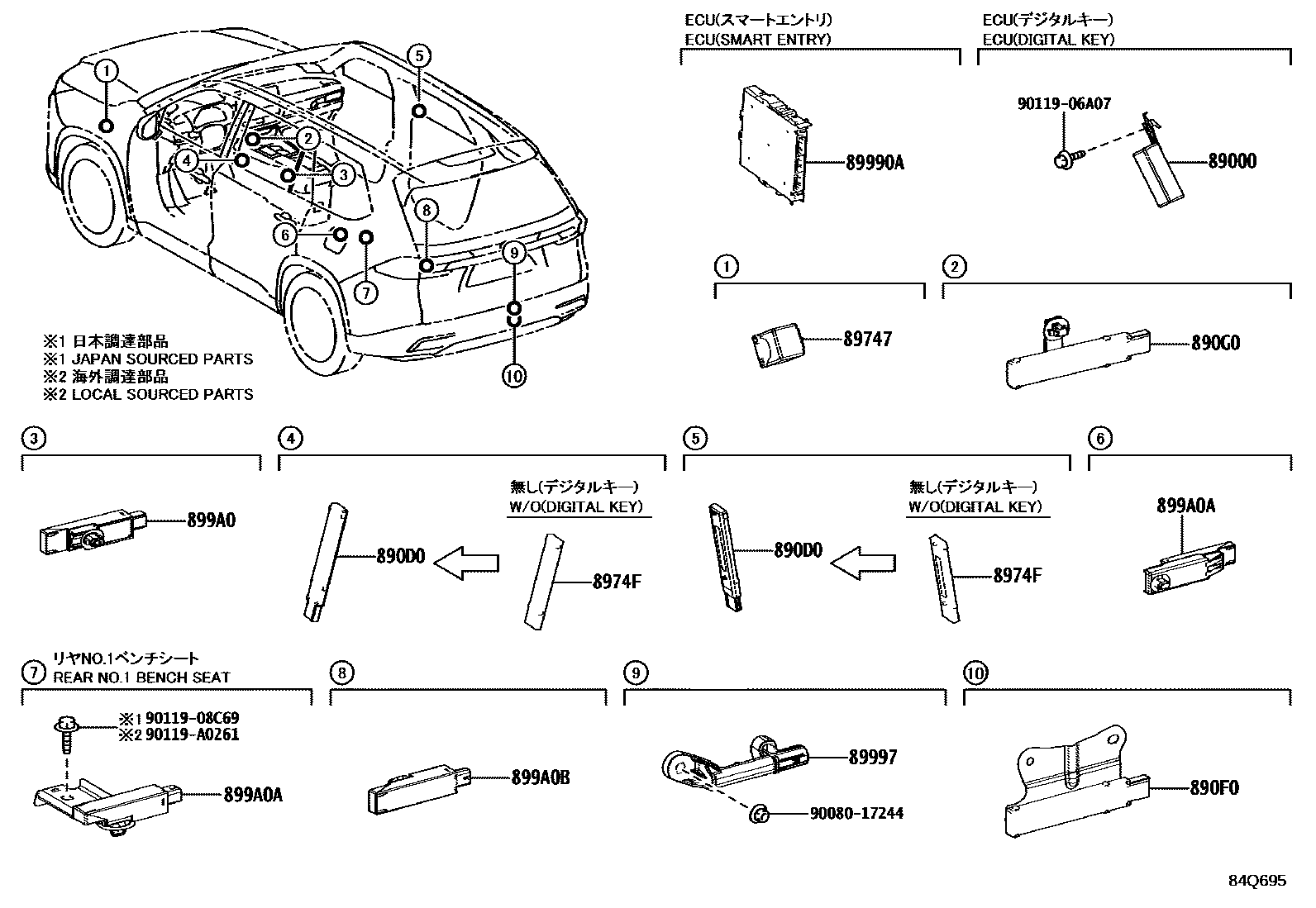

WIRELESS DOOR LOCK

0001 1 0002 1

89000COMPUTER ASSY, DIGITAL KEY

main89000-48030supersedes 89000-48080iAASH1#,TASA1#,TASH15..G,M,V,Z202306-202308

DIGITAL KEY-WITHOUT

main89000-48080iAASH1#,TASA1#,TASH15..G,M,V,Z202309

DIGITAL KEY-WITHOUT

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2iAASH1#,TASA1#,TASH15..G,M,V,Z202306

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-47010iAASH1#,TASA1#,TASH15..G,M,V,Z202306

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-48020iAASH1#,TASA1#,TASH15..G,M,V,Z202306

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iTASA1#202306

8974FCASE, W/O DIGITAL KEY

main8974F-0E020×2iAASH1#,TASA1#,TASH15..G,M,V,Z; AASH1#,TASA1#..N202306

DIGITAL KEY-WITHOUT

89990ACOMPUTER ASSY, SMART KEY

main899H0-0E140iTASA1#202306-202412

main899H0-0E150iAASH1#,TASH15202306-202412

main899H0-0E481iTASA1#202412

main899H0-0E491iAASH1#,TASH15202412

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iAASH1#,TASA1#,TASH15202306

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0A020iAASH1#,TASA1#,TASH15202306

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0A020iTASA1#..G,M,Z202306

main899A0-0E090iTASA1#..G,M; TASA1#..N202306

REAR NO.1 SEAT-BENCH SEAT

main899A0-0E100iAASH1#,TASH15202306

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0A020iAASH1#,TASA1#,TASH15202306

9008017244

main90080-17244

9011906A07

main90119-06A07

9011908C69

main90119-08C69

90119A0261

main90119-A0261

15 parts on this diagram · 2 diagrams in section
