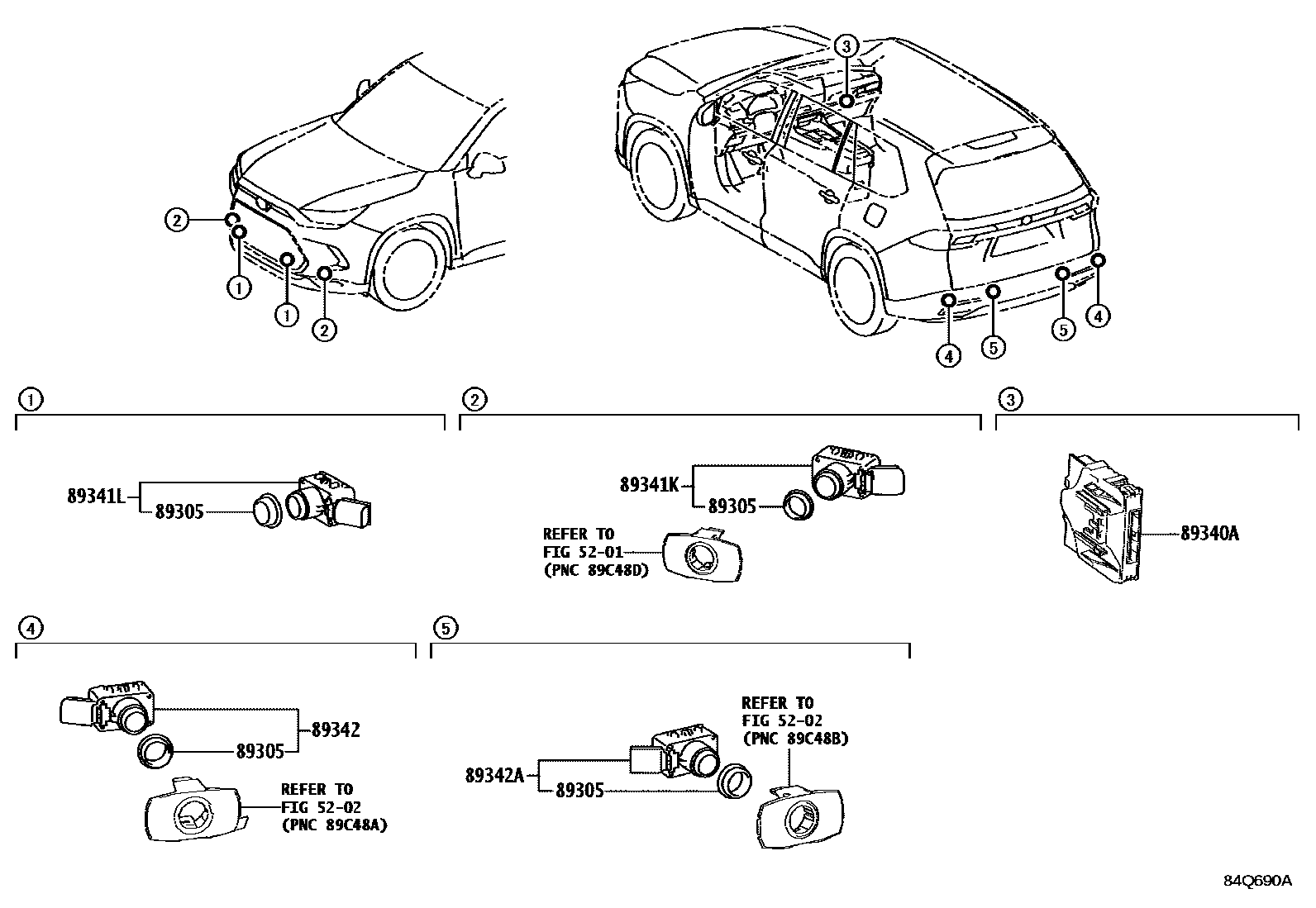

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iAASH1#,TASA1#,TASH15..G,V,Z202306

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0E150iAASH1#,TASA1#,TASH15..G,V,Z202306

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0E040-A0×2iAASH1#,TASA1#,TASH15..G,V,Z202306

PLATINUM WHITE PEARL MC.,089

main89341-0E040-A1×2iAASH1#,TASA1#,TASH15..G,V,Z202306-202409

CREAM MC.,092

main89341-0E040-B1×2iAASH1#,TASA1#,TASH15..G,V,Z202306-202409

SILVER ME.,1J9

main89341-0E040-B2×2iAASH1#,TASA1#,TASH15..G,V,Z202306

MASSIVE GRAY,1L6

main89341-0E040-B4×2iAASH1#,TASA1#,TASH15..G,V,Z202412

PRECIOUS METAL,1L5

main89341-0E040-C3×2iAASH1#,TASA1#,TASH15..G,V,Z202306

ATTITUDE BLACK MC.,218

main89341-0E040-D0×2iAASH1#,TASA1#,TASH15..G,V,Z202306

RED MC.,3T3

main89341-0E040-J0×2iAASH1#,TASA1#,TASH15..G,V,Z202306

DK. BLUE MC.,8X8

main89341-0E040-P0×2iAASH15,TASH15..G,V,Z202412

CEMENT GRAY ME.,1H5

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0E040-B0×2iTASH15202306

DK.GRAY ME

main89341-0E040-C1×2iAASH1#,TASA1#..G,Z202306

BLACK

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0E040-C0×2iAASH1#,TASA1#,TASH15..G,V,Z202306

DUMMY-MAT BLACK

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0E040-C0×2iAASH1#,TASA1#,TASH15..G,V,Z202306

DUMMY-MAT BLACK

8 parts on this diagram · 1 diagram in section
