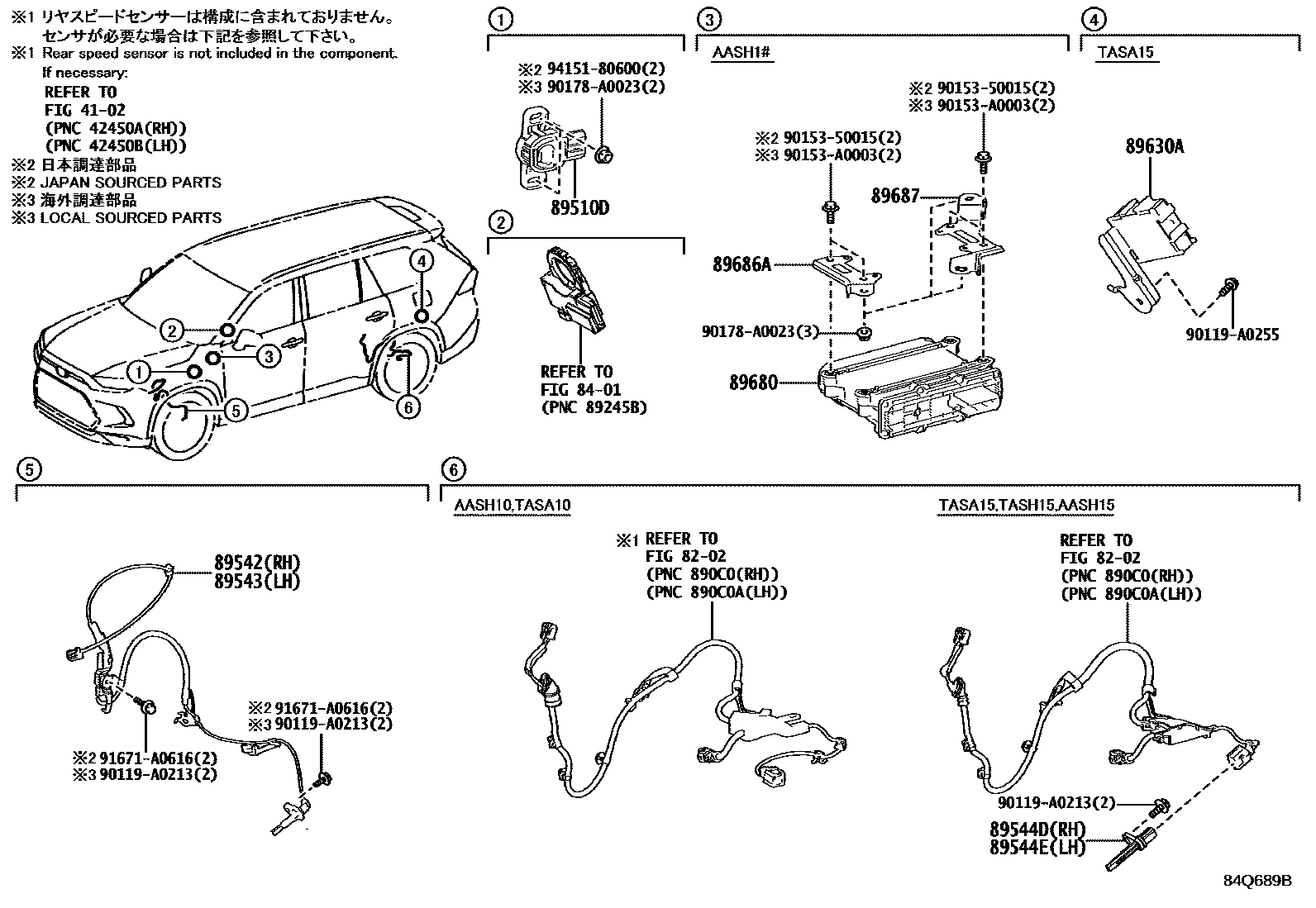

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iAASH1#,TASH15202306

89542SENSOR, SPEED, FRONT RH

main89542-0E120iAASH1#,TASA1#,TASH15202306

89543SENSOR, SPEED, FRONT LH

main89543-0E120iAASH1#,TASA1#,TASH15202306

89544DSENSOR, SKID CONTROL, REAR RH

main89544-0E080iAASH15,TASA15,TASH15202306

89544ESENSOR, SKID CONTROL, REAR LH

main89544-0E080iAASH15,TASA15,TASH15202306

89630ACOMPUTER ASSY, 4WD

main89630-48140iTASA15202306-202310

main89630-48141iTASA15202310

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iAASH1#202306

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-0E020iAASH1#202306

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-0E020iAASH1#202306

90119A0213

main90119-A0213

90119A0255

main90119-A0255

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

91671A0616

main91671-A0616

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
