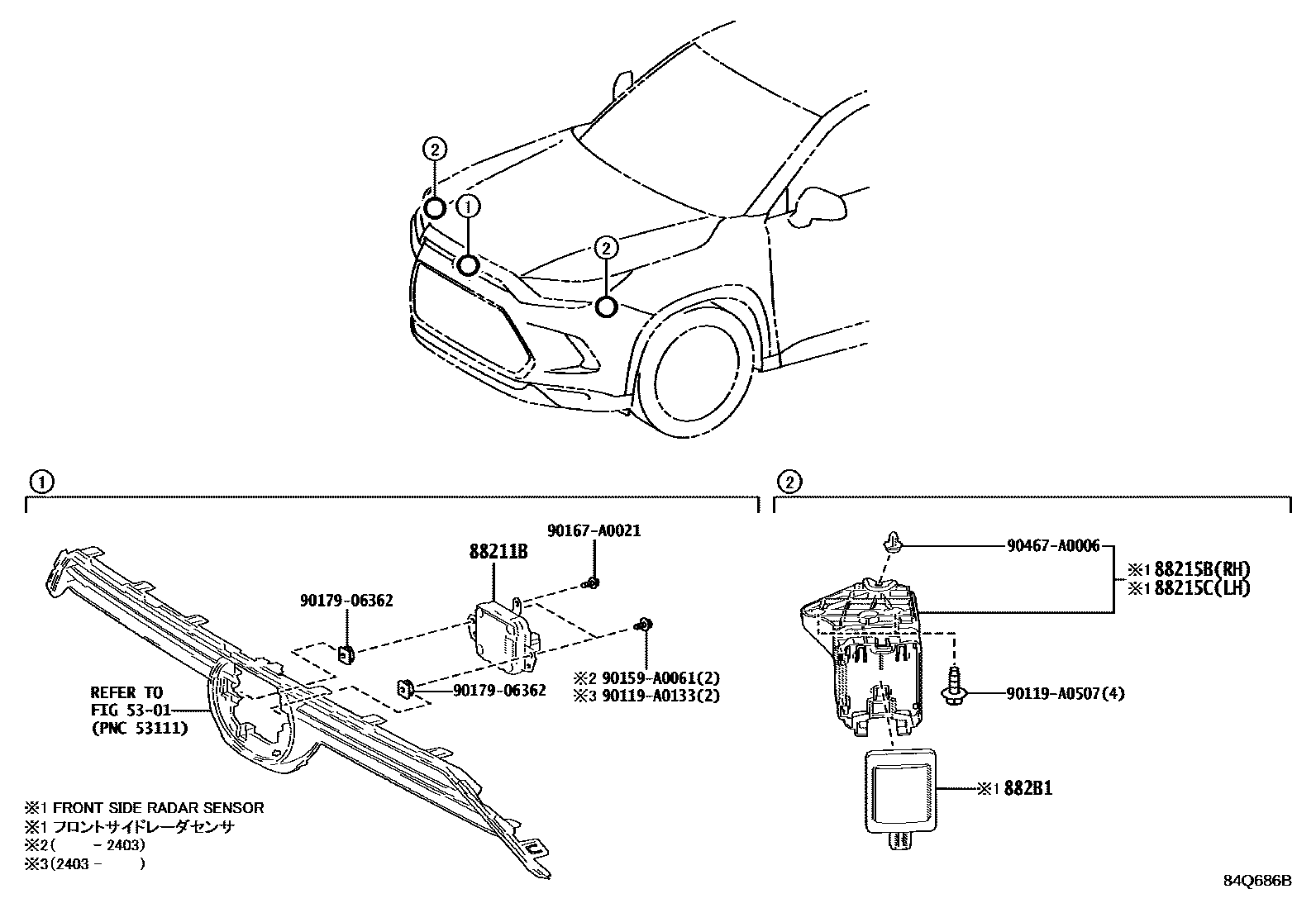

CRUISE CONTROL (AUTO DRIVE)

5301RADIATOR GRILLE

→ Go to FIG 53-01

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-0E060iAASH1#,TASA1#,TASH15202306

88215BBRACKET, FRONT SIDE RADAR SENSOR, RH

main88215-0E030iTASA15,TASH15..Z202306

LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

88215CBRACKET, FRONT SIDE RADAR SENSOR, LH

main88215-0E040iTASA15,TASH15..Z202306

LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

882B1SENSOR, FRONT SIDE RADAR

main882B1-0E010×2supersedes 882B1-0E012iTASA15,TASH15..Z202306-202308

LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

main882B1-0E011×2supersedes 882B1-0E012iTASA15,TASH15..Z202308-202408

LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

main882B1-0E012×2iTASA15,TASH15..Z202408

LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

90119A0133

main90119-A0133

90119A0507

main90119-A0507

90159A0061

main90159-A0061

90167A0021

main90167-A0021

9017906362

main90179-06362

90467A0006

main90467-A0006

11 parts on this diagram · 1 diagram in section
