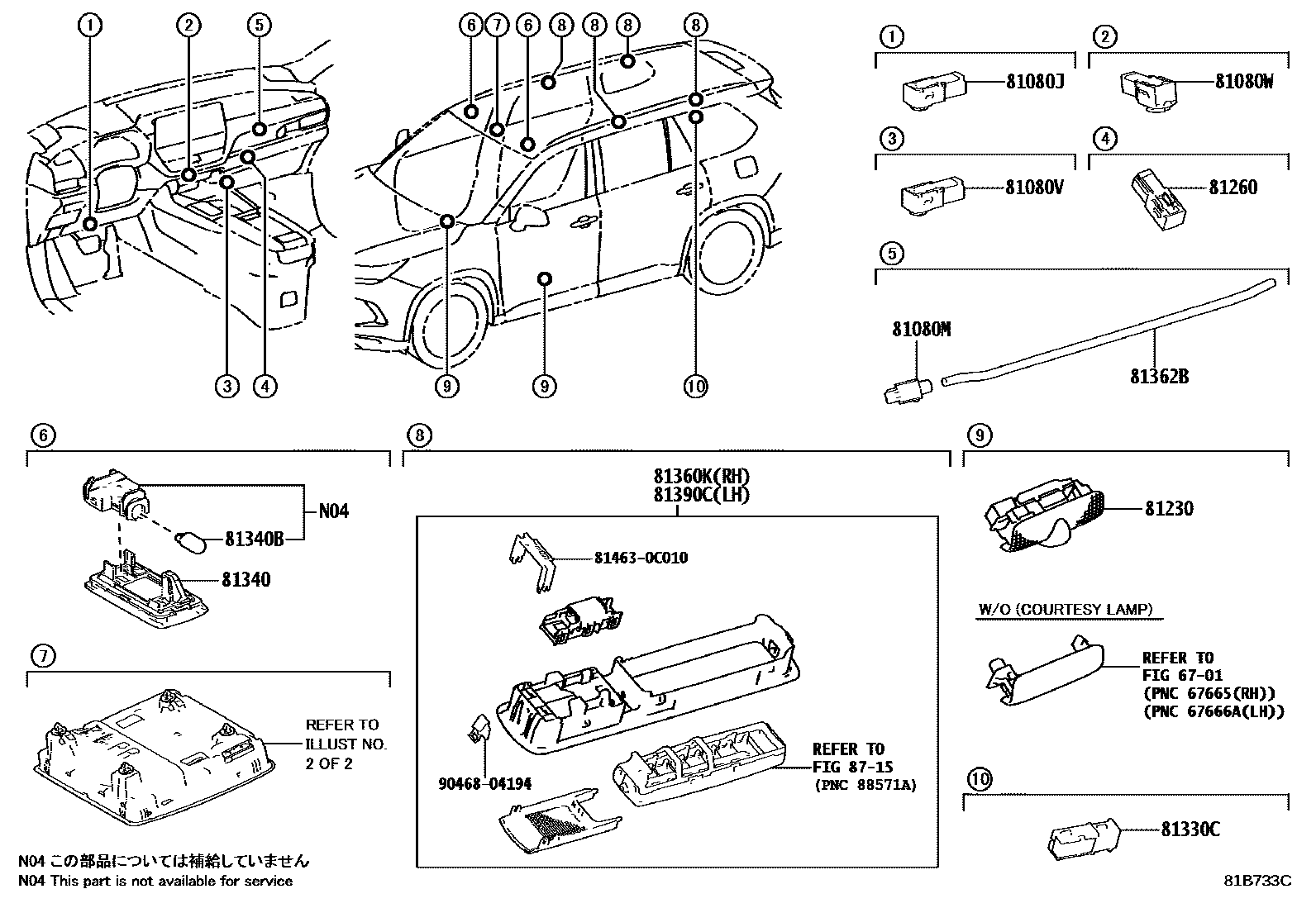

INTERIOR LAMP

0001 1 0002 1

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iAASH1#,TASA1#,TASH15..G,V,Z202306

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0E140iAASH1#,TASA1#,TASH15..G,V,Z202306

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33290iAASH1#,TASA1#,TASH15..G,V,Z202306

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-42110iAASH1#,TASA1#,TASH15..G,V,Z202306

81230LAMP ASSY, COURTESY

main81230-YY050×2iAASH1#,TASA1#,TASH15202306

DOOR COURTESY LAMP-WITH(ACCESORY)

81260LAMP ASSY, GLOVE BOX

main81080-33290iAASH1#,TASA1#,TASH15202306

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81080-48200iAASH1#,TASA1#,TASH15202306

81340LAMP ASSY, VANITY

main81340-30110×2iAASH1#,TASA1#,TASH15202306

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAASH1#,TASA1#,TASH15202306

12V 8W

81360KLAMP ASSY, SPOT, RH

main81360-0E190-B0×2iAASH15..G; AASH15..M,N;AASH10,TASA1#..G,M,N; TASA15..Z202306-202406

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20

main81360-0E190-C0×2iAASH15..G; TASH15202306-202406

BLACK,TRIM1#,2#,4#; BLACK,TRIM20

main81360-0E191-B0×2iAASH15..G; AASH15..M,N;AASH10,TASA1#..G,M,N; TASA15..Z202406

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20

main81360-0E191-C0×2iAASH15..G; TASH15202406

BLACK,TRIM1#,2#,4#; BLACK,TRIM20

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-0E090iAASH1#,TASA1#,TASH15..G,V,Z202306

81390CLAMP ASSY, SPOT, LH

main81390-0E100-B0×2iAASH15..G; AASH15..M,N;AASH10,TASA1#..G,M,N; TASA15..Z202306-202406

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20

main81390-0E100-C0×2iAASH15..G; TASH15202306-202406

BLACK,TRIM1#,2#,4#; BLACK,TRIM20

main81390-0E101-B0×2iAASH15..G; AASH15..M,N;AASH10,TASA1#..G,M,N; TASA15..Z202406

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20

main81390-0E101-C0×2iAASH15..G; TASH15202406

BLACK,TRIM1#,2#,4#; BLACK,TRIM20

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

814630C010

main81463-0C010

9046804194

main90468-04194

16 parts on this diagram · 2 diagrams in section
