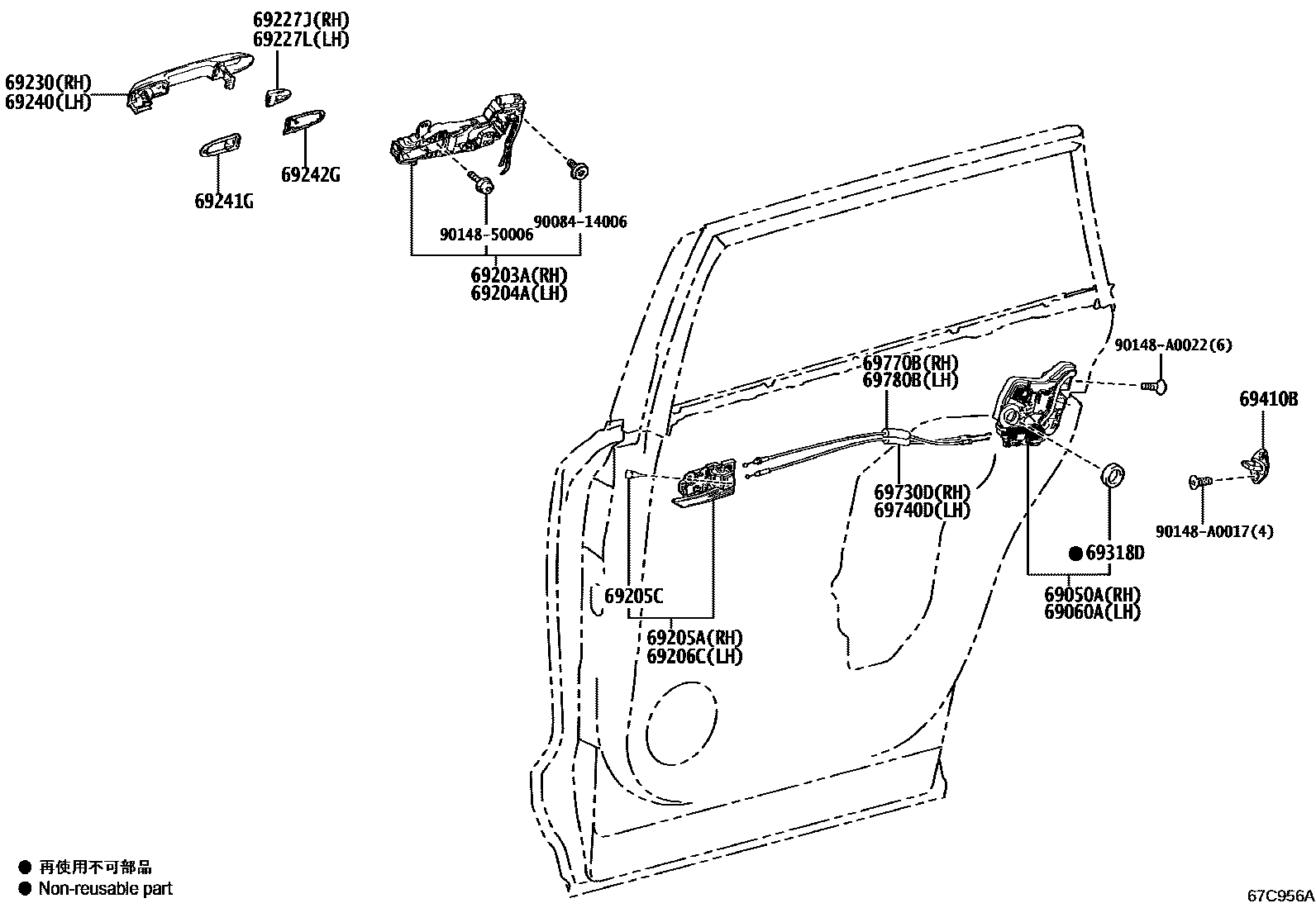

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK MATERIAL
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK MATERIAL
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089
CREAM MC.,092
SILVER ME.,1J9
MASSIVE GRAY,1L6
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
ATTITUDE BLACK MC.,089 ,1H5 ,218; ATTITUDE BLACK MC.,218
RED MC.,3T3
DK. BLUE MC.,8X8
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
CREAM MC.,092
SILVER ME.,1J9
MASSIVE GRAY,1L6
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
ATTITUDE BLACK MC.,089 ,1H5 ,218; ATTITUDE BLACK MC.,218
RED MC.,3T3
DK. BLUE MC.,8X8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9008414006
main90084-14006
9014850006
main90148-50006
90148A0017
main90148-A0017
90148A0022
main90148-A0022
23 parts on this diagram · 1 diagram in section
