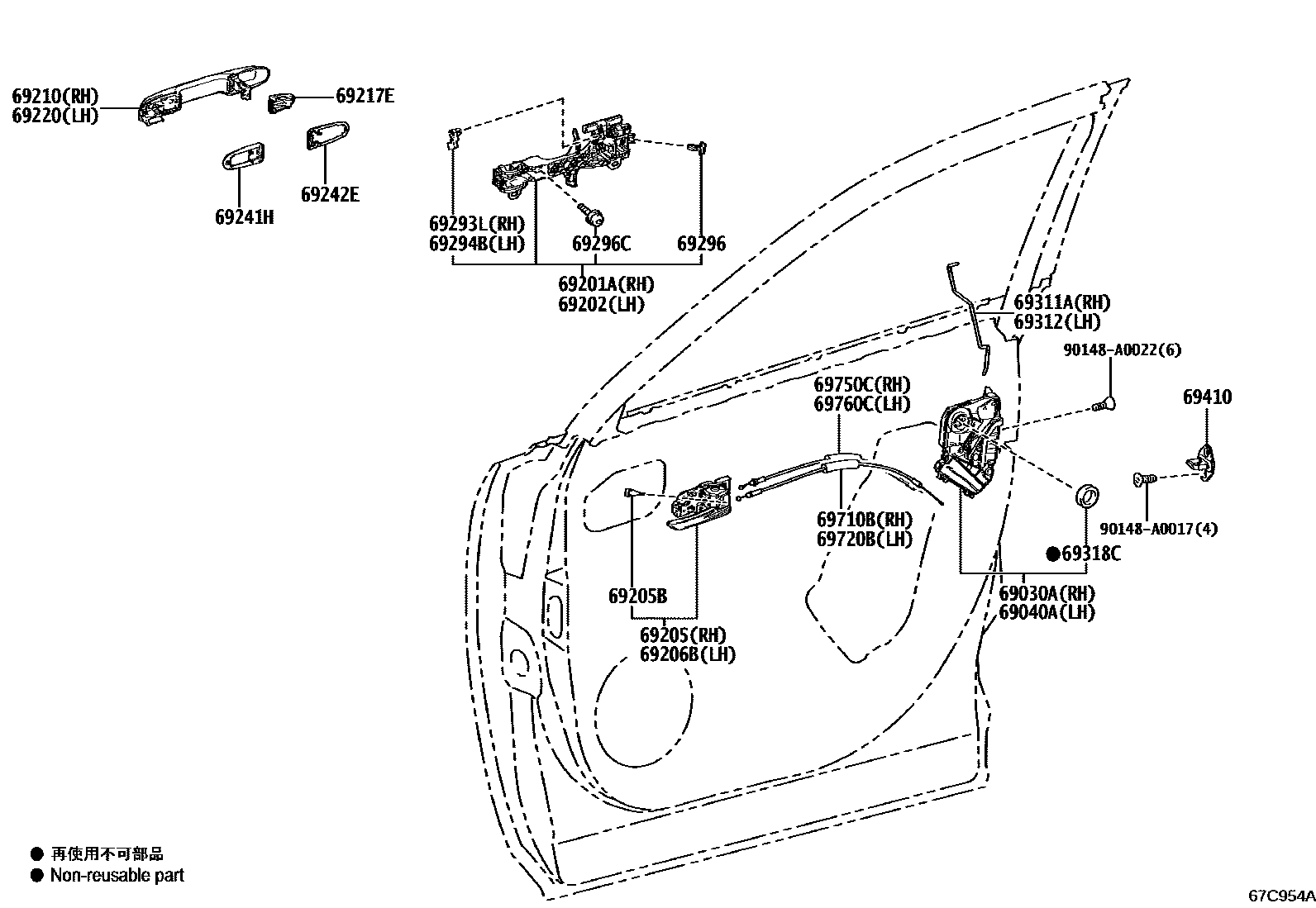

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-AK010iAASH1#,TASA1#,TASH15202306

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-AK010iAASH1#,TASA1#,TASH15202306

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0E160iAASH1#,TASA1#,TASH15202306

69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH

main69202-0E140iAASH1#,TASA1#,TASH15202306

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02380-C0iAASH1#,TASA1#..G,M,N; TASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005×4iAASH1#,TASA1#,TASH15202306

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02380-C0iAASH1#,TASA1#..G,M,N; TASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0E270-A0iAASH1#,TASA1#,TASH15202306

PLATINUM WHITE PEARL MC.,089

main69210-0E270-A1iAASH1#,TASA1#,TASH15202306-202409

CREAM MC.,092

main69210-0E270-B0iAASH1#,TASA1#,TASH15202306

SILVER ME.,1J9

main69210-0E270-B1iAASH1#,TASA1#,TASH15202306

MASSIVE GRAY,1L6

main69210-0E270-B3iAASH1#,TASA1#,TASH15..G,V,Z202412

PRECIOUS METAL,1L5

main69210-0E270-B4iAASH15,TASH15..G,V,Z202412

CEMENT GRAY ME.,1H5

main69210-0E270-C1iAASH15..G; AASH15..M,N;AASH10,TASA1#,TASH15202306

ATTITUDE BLACK MC.,089 ,1H5 ,218; ATTITUDE BLACK MC.,218

main69210-0E270-D0iAASH1#,TASA1#,TASH15202306

RED MC.,3T3

main69210-0E270-J0iAASH1#,TASA1#,TASH15202306

DK. BLUE MC.,8X8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0E120iAASH1#,TASA1#,TASH15202306

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0E260-A0iAASH1#,TASA1#,TASH15202306

PLATINUM WHITE PEARL MC.,089

main69210-0E260-A1iAASH1#,TASA1#,TASH15202306-202409

CREAM MC.,092

main69210-0E260-B0iAASH1#,TASA1#,TASH15202306

SILVER ME.,1J9

main69210-0E260-B1iAASH1#,TASA1#,TASH15202306

MASSIVE GRAY,1L6

main69210-0E260-B3iAASH1#,TASA1#,TASH15..G,V,Z202412

PRECIOUS METAL,1L5

main69210-0E260-B4iAASH15,TASH15..G,V,Z202412

CEMENT GRAY ME.,1H5

main69210-0E260-C1iAASH15..G; AASH15..M,N;AASH10,TASA1#,TASH15202306

ATTITUDE BLACK MC.,089 ,1H5 ,218; ATTITUDE BLACK MC.,218

main69210-0E260-D0iAASH1#,TASA1#,TASH15202306

RED MC.,3T3

main69210-0E260-J0iAASH1#,TASA1#,TASH15202306

DK. BLUE MC.,8X8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0E130×2iAASH1#,TASA1#,TASH15202306

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0E120×2iAASH1#,TASA1#,TASH15202306

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAASH1#,TASA1#,TASH15202306

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAASH1#,TASA1#,TASH15202306

69296SCREW, DOOR INSIDE HANDLE

main90084-14006×2iAASH1#,TASA1#,TASH15202306

69296CSCREW, DOOR INSIDE HANDLE

main90148-50006×2iAASH1#,TASA1#,TASH15202306

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0E140iAASH1#,TASA1#,TASH15202306

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0E130iAASH1#,TASA1#,TASH15202306

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-04010×2iAASH1#,TASA1#,TASH15202306

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030×2iAASH1#,TASA1#,TASH15202306

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0E150iAASH1#,TASA1#,TASH15202306

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0E150iAASH1#,TASA1#,TASH15202306

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0E100iAASH1#,TASA1#,TASH15202306

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0E100iAASH1#,TASA1#,TASH15202306

90148A0017

main90148-A0017

90148A0022

main90148-A0022

26 parts on this diagram · 1 diagram in section
