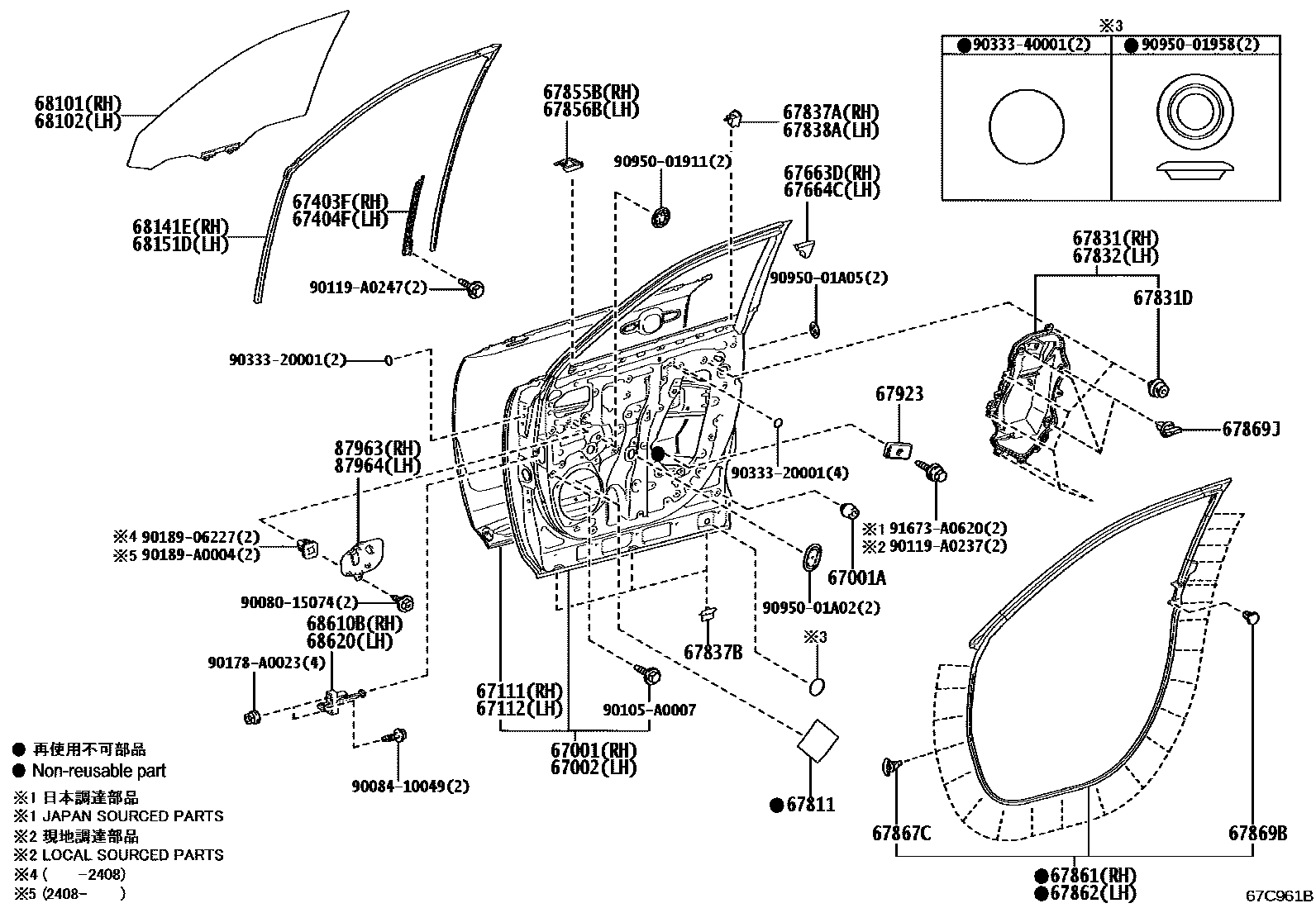

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E160iAASH1#,TASA1#,TASH15202306

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iAASH1#,TASA1#,TASH15202306

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E220iAASH1#,TASA1#,TASH15202306

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E140iAASH1#,TASA1#,TASH15202306

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E140iAASH1#,TASA1#,TASH15202306

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E130iAASH1#,TASA1#,TASH15202306

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E120iAASH1#,TASA1#,TASH15202306

67663DGARNISH, DOOR FRAME, RH

main67663-0E140iAASH1#,TASA1#,TASH15202306

67664CGARNISH, DOOR FRAME, LH

main67664-0E130iAASH1#,TASA1#,TASH15202306

67811PAD, FRONT DOOR SILENCER

main67811-0E030×2iAASH1#,TASA1#,TASH15202306

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E150iAASH1#,TASA1#,TASH15202306

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0048×10iAASH1#,TASA1#,TASH15202306

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E150iAASH1#,TASA1#,TASH15202306

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E160iAASH1#,TASA1#,TASH15202306

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0E060×6iAASH1#,TASA1#,TASH15202306

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E060iAASH1#,TASA1#,TASH15202306

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E100iAASH1#,TASA1#,TASH15202306

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E090iAASH1#,TASA1#,TASH15202306

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E150iAASH1#,TASA1#,TASH15202306

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E150iAASH1#,TASA1#,TASH15202306

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×46iAASH1#,TASA1#,TASH15202306

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×2iAASH1#,TASA1#,TASH15202306

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010×6iAASH1#,TASA1#,TASH15202306

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0E100×2iAASH1#,TASA1#,TASH15202306

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E250iAASH1#,TASA1#..M,N202306

main68101-0E260iAASH1#,TASA1#,TASH15..G,V,Z202306

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E250iAASH1#,TASA1#..M,N202306

main68102-0E260iAASH1#,TASA1#,TASH15..G,V,Z202306

68141ERUN, FRONT DOOR GLASS, RH

main68141-0E140iAASH1#,TASA1#,TASH15202306

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E140iAASH1#,TASA1#,TASH15202306

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E190iAASH1#,TASA1#,TASH15202306

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E180iAASH1#,TASA1#,TASH15202306

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E040iAASH1#,TASA1#,TASH15202306

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E040iAASH1#,TASA1#,TASH15202306

9008015074

main90080-15074

9008410049

main90084-10049

90105A0007

main90105-A0007

90119A0237

main90119-A0237

90119A0247

main90119-A0247

90178A0023

main90178-A0023

9018906227

main90189-06227

90189A0004

main90189-A0004

9033320001

main90333-20001

9033340001

main90333-40001

9095001911

main90950-01911

9095001958

main90950-01958

9095001A02

main90950-01A02

9095001A05

main90950-01A05

91673A0620

main91673-A0620

47 parts on this diagram · 2 diagrams in section
