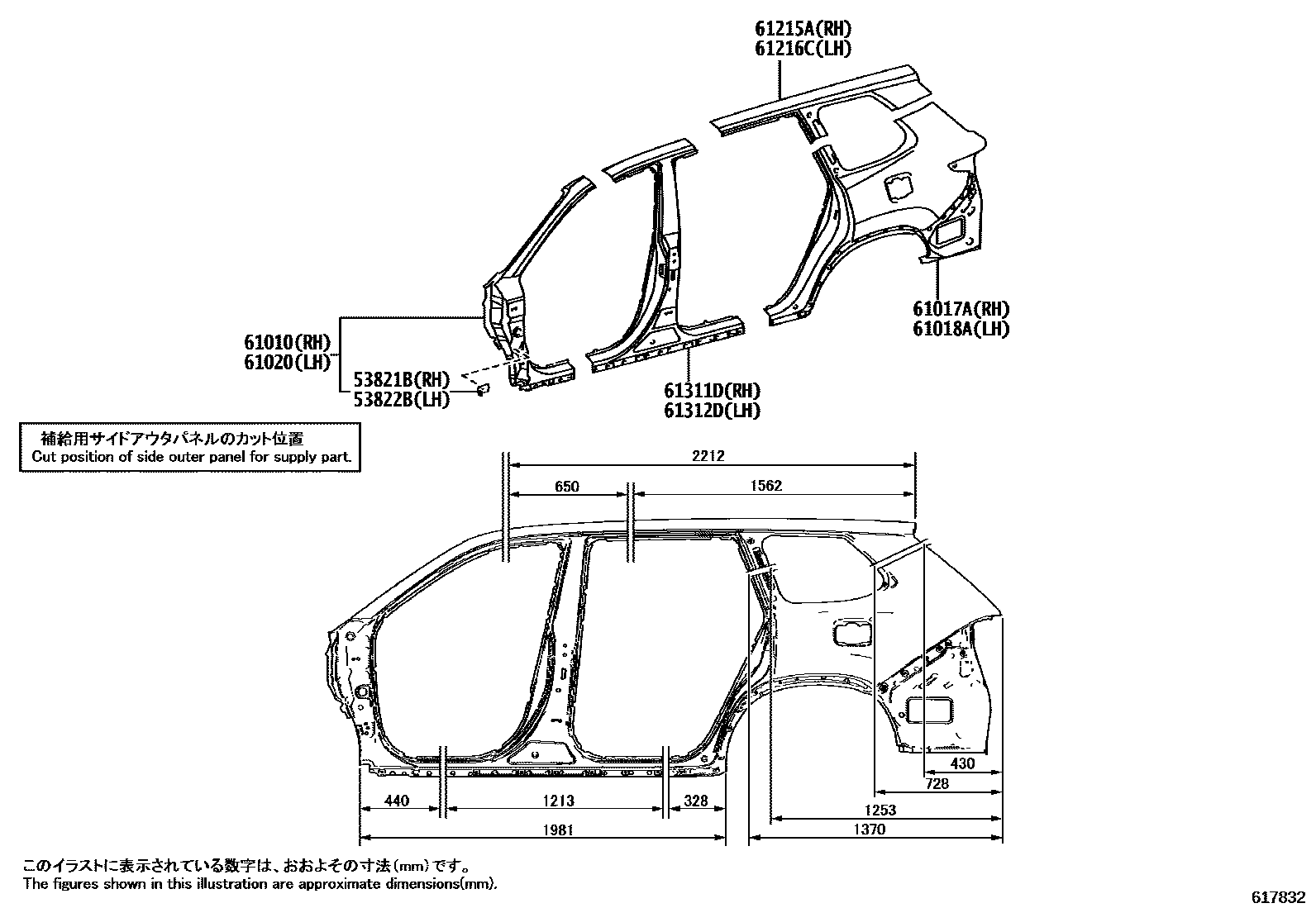

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E180iAASH1#,TASA1#,TASH15202306

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0E180iAASH1#,TASA1#,TASH15202306

61010MEMBER ASSY, SIDE, RH

main61010-0E040iAASH1#,TASA1#,TASH15202306

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-0E080iAASH1#,TASA1#,TASH15202306

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-0E070iAASH1#,TASA1#,TASH15202306

61020MEMBER ASSY, SIDE, LH

main61020-0E040iAASH1#,TASA1#,TASH15202306

61215ARAIL, ROOF SIDE, OUTER NO.3 RH

main61215-0E120iAASH1#,TASA1#,TASH15202306

61216CRAIL, ROOF SIDE, OUTER NO.3 LH

main61216-0E120iAASH1#,TASA1#,TASH15202306

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-0E130iAASH1#,TASA1#,TASH15202306

61312DPANEL, REAR BODY, FRONT OUTSIDE LH

main61312-0E130iAASH1#,TASA1#,TASH15202306

10 parts on this diagram · 3 diagrams in section
