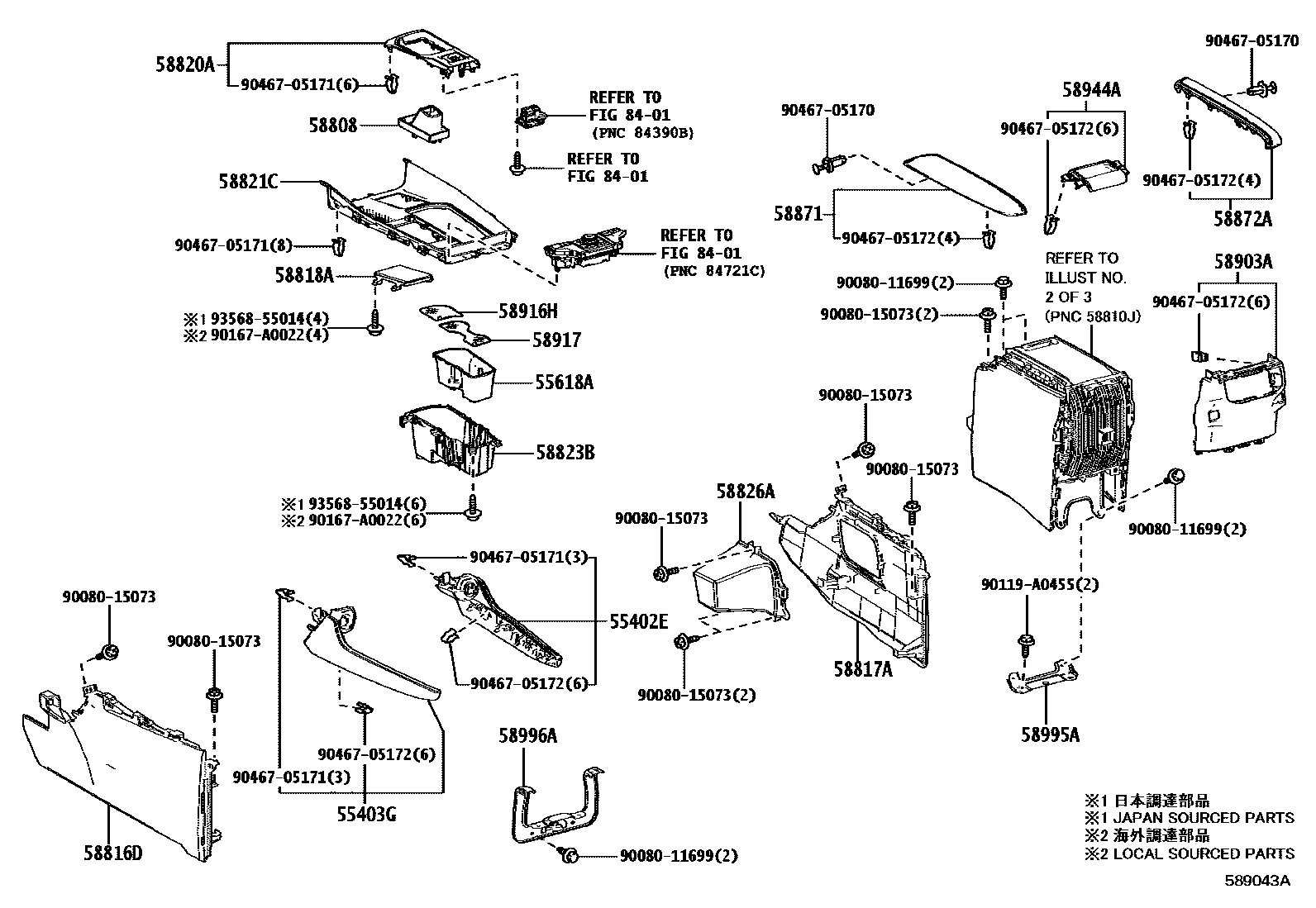

CONSOLE BOX & BRACKET

0001 1FRONT CENTER CONSOLE BOX 0002 1FRONT CENTER CONSOLE BOX 0003 1FRONT CENTER CONSOLE BOX 0004 1REAR NO.1 SEAT CONSOLE BOX 0005 1REAR NO.1 SEAT CONSOLE BOX

55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1

main55402-0E080-B0iAASH1#,TASA1#..M,N202306

LT.GRAY,TRIM1#

main55402-0E080-C0iAASH1#,TASA1#..M,N202306

BLACK,TRIM2#

main55402-0E090-B0iAASH1#,TASA1#..G,Z202306

GRAY,TRIM1#

main55402-0E090-C0iAASH1#,TASA1#..G,Z202306

BLACK,TRIM2#

main55402-0E090-E0iTASA15..Z202306

MD. BROWN,TRIM4#

main55402-0E130-B0iTASH15202306

GRAY,TRIM1#

main55402-0E130-C0iTASH15202306

BLACK,TRIM2#

main55402-0E130-E0iTASH15202306

MD. BROWN,TRIM4#

55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2

main55403-0E190-B0iAASH1#,TASA1#..M,N202306

LT.GRAY,TRIM1#

main55403-0E190-C0iAASH1#,TASA1#..M,N202306

BLACK,TRIM2#

main55403-0E200-B0iAASH1#,TASA1#..G,Z202306

GRAY,TRIM1#

main55403-0E200-C0iAASH1#,TASA1#..G,Z202306

BLACK,TRIM2#

main55403-0E200-E0iTASA15..Z202306

MD. BROWN,TRIM4#

main55403-0E240-B0iTASH15202306

GRAY,TRIM1#

main55403-0E240-C0iTASH15202306

BLACK,TRIM2#

main55403-0E240-E0iTASH15202306

MD. BROWN,TRIM4#

55618AHOLDER, CONSOLE BOX CUP

main55618-0E270iAASH1#,TASA1#,TASH15202306

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0E140-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

main58808-0E140-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0E170-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main58816-0E170-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

main58816-0E200-C0iTASH15202306

BLACK,TRIM1#,2#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0E170-C0iTASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#

main58817-0E170-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

58818ACOVER, CONSOLE BOX, FR

main58818-0E160iAASH1#,TASA1#..N202306

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-0E090iAASH1#,TASA1#202306

main58820-0E100iTASH15202306

58821CPANEL, CONSOLE, UPPER

main58821-0E290iAASH1#,TASA1#202306

main58821-0E300iTASH15202306

58823BBOX, CONSOLE COMPARTMENT

main58823-0E060iAASH1#,TASA1#,TASH15202306

58826APOCKET, CONSOLE BOX, LOWER

main58826-0E030iAASH1#,TASA1#,TASH15202306

58871CUSHION, CONSOLE BOX

main58871-0E080-B0iAASH1#,TASA1#,TASH15202306

GRAY,TRIM1#

main58871-0E080-C0iAASH1#,TASA1#,TASH15202306

BLACK,TRIM2#

main58871-0E080-E0iTASA15,TASH15..V,Z202306

MD. BROWN,TRIM4#

58872ACUSHION, CONSOLE BOX, NO.2

main58872-0E060-B0iAASH1#,TASA1#,TASH15202306

GRAY,TRIM1#

main58872-0E060-C0iAASH1#,TASA1#,TASH15202306

BLACK,TRIM2#

main58872-0E060-E0iTASA15,TASH15..V,Z202306

MD. BROWN,TRIM4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0E260-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main58903-0E260-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

58916MAT, BOX BOTTOM

main58916-0E140iAASH1#,TASA1#,TASH15..G,V,Z202306

REAR NO.1 SEAT-BENCH SEAT

58916HMAT, BOX BOTTOM, NO.3

main58916-0E060iAASH1#,TASA1#,TASH15202306

58917MAT, BOX BOTTOM, NO.2

main58917-0E020iAASH1#,TASA1#,TASH15202306

58944ACOVER, CONSOLE, REAR

main58944-0E130iAASH1#,TASA1#,TASH15202306

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0E090iAASH1#,TASA1#..M,N202306

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0E130iAASH1#,TASA1#,TASH15202306

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011699

main90080-11699

9008015073

main90080-15073

90119A0455

main90119-A0455

90167A0022

main90167-A0022

9046705170

main90467-05170

9046705171

main90467-05171

9046705172

main90467-05172

9356855014

main93568-55014

29 parts on this diagram · 5 diagrams in section
