MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0E121iAASH1#,TASA1#,TASH15202306

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0E070iAASH1#,TASA1#,TASH15202306

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0E070iAASH1#,TASA1#,TASH15202306

58415JCLIP, REAR FLOOR BOARD

main90467-07049-23×2iAASH1#; TASH15202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

58510DCARPET ASSY, FLOOR, FRONT

main58510-0E580-C0supersedes 58510-0E590-C0iTASA1#..G,M; TASA1#..N202306

BLACK,TRIM1#,2#; REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM1#,2#

main58510-0E590-C0iTASA1#..G,M; TASA15..Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

main58510-0E600-C1supersedes 58510-0E610-C1iAASH1#..G,M; AASH1#..N202306

BLACK,TRIM1#,2#; REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM1#,2#

main58510-0E610-C1iAASH1#..G,M; TASH15202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

58521BHOOK, FLOOR CARPET

main58521-0E160×6iAASH1#,TASA1#,TASH15202306

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×2iAASH1#,TASA1#..G,M,N; TASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

58556FCLIP, REAR FLOOR SILENCER

main90467-07049-23×2iAASH1#,TASA1#..G,M,N; TASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

58556GSILENCER, REAR FLOOR, NO.1

main58556-0E150iTASA1#202306

main58556-0E160iAASH1#,TASH15202306

58557CSILENCER, REAR FLOOR, NO.2

main58557-0E110iTASA1#202306

main58557-0E120iAASH1#,TASH15202306

58563KSILENCER, FRONT FLOOR

main58563-0E080iAASH1#,TASA1#,TASH15202306

58694BPLATE, MAT SET, UPPER

main58694-33010×4iAASH1#,TASA1#,TASH15202306

58698CPLATE, MAT SET, LOWER

main58698-33010×4iAASH1#,TASA1#,TASH15202306

65341BOARD, FLOOR, NO.1

main65341-0E050iAASH1#,TASH15202306

65342BOARD, FLOOR, NO.2

main65342-0E050iAASH1#,TASH15202306

65343BOARD, FLOOR, NO.3

main65343-0E050iAASH1#,TASH15202306

9046710217

main90467-10217

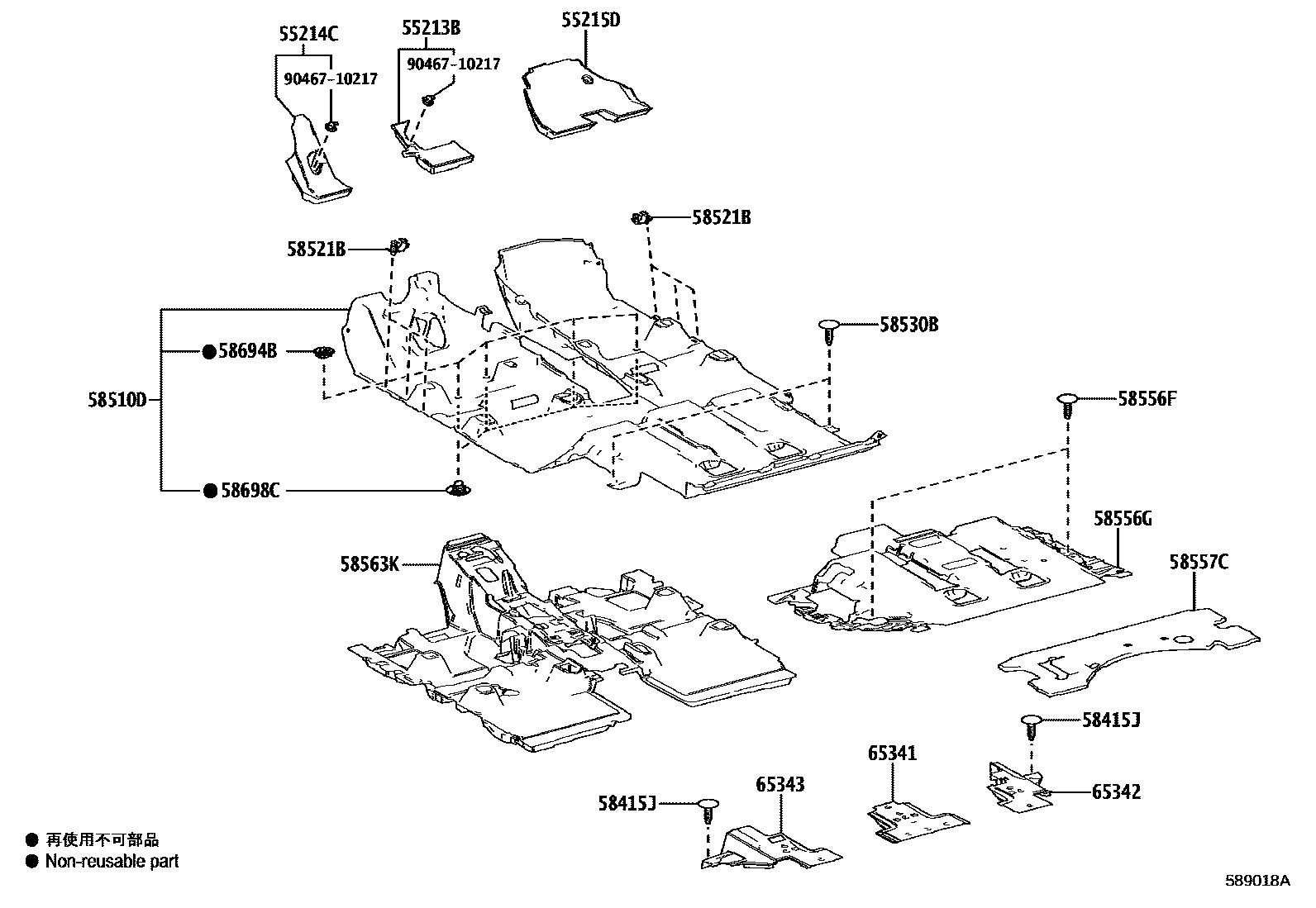

17 parts on this diagram · 2 diagrams in section
