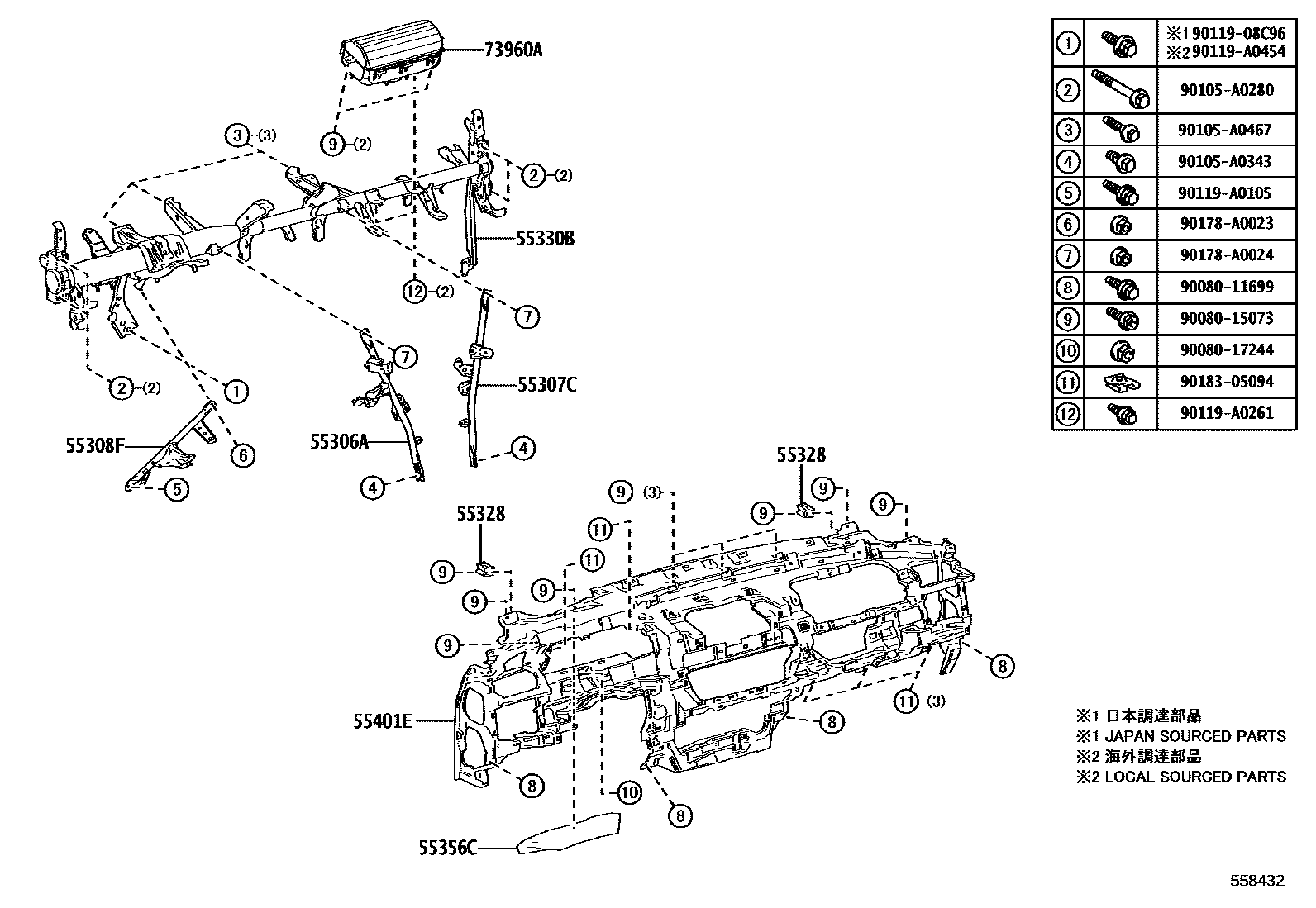

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E170iAASH1#,TASA1#,TASH15202306

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E170iAASH1#,TASA1#,TASH15202306

55308FBRACE SUB-ASSY, INSTRUMENT PANEL, NO.3

main55308-0E150iAASH1#,TASA1#,TASH15202306

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iAASH1#,TASA1#,TASH15202306

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E300iAASH1#,TASA1#,TASH15..G,M,N,V202306

main55330-0E310iTASA15,TASH15..Z202306

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0E140iAASH1#,TASA1#,TASH15202306

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E310iAASH1#,TASA1#,TASH15202306

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E180iAASH1#,TASA1#,TASH15202306

9008011699

main90080-11699

9008015073

main90080-15073

9008017244

main90080-17244

90105A0280

main90105-A0280

90105A0343

main90105-A0343

90105A0467

main90105-A0467

9011908C96

main90119-08C96

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90119A0454

main90119-A0454

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094

21 parts on this diagram · 5 diagrams in section
