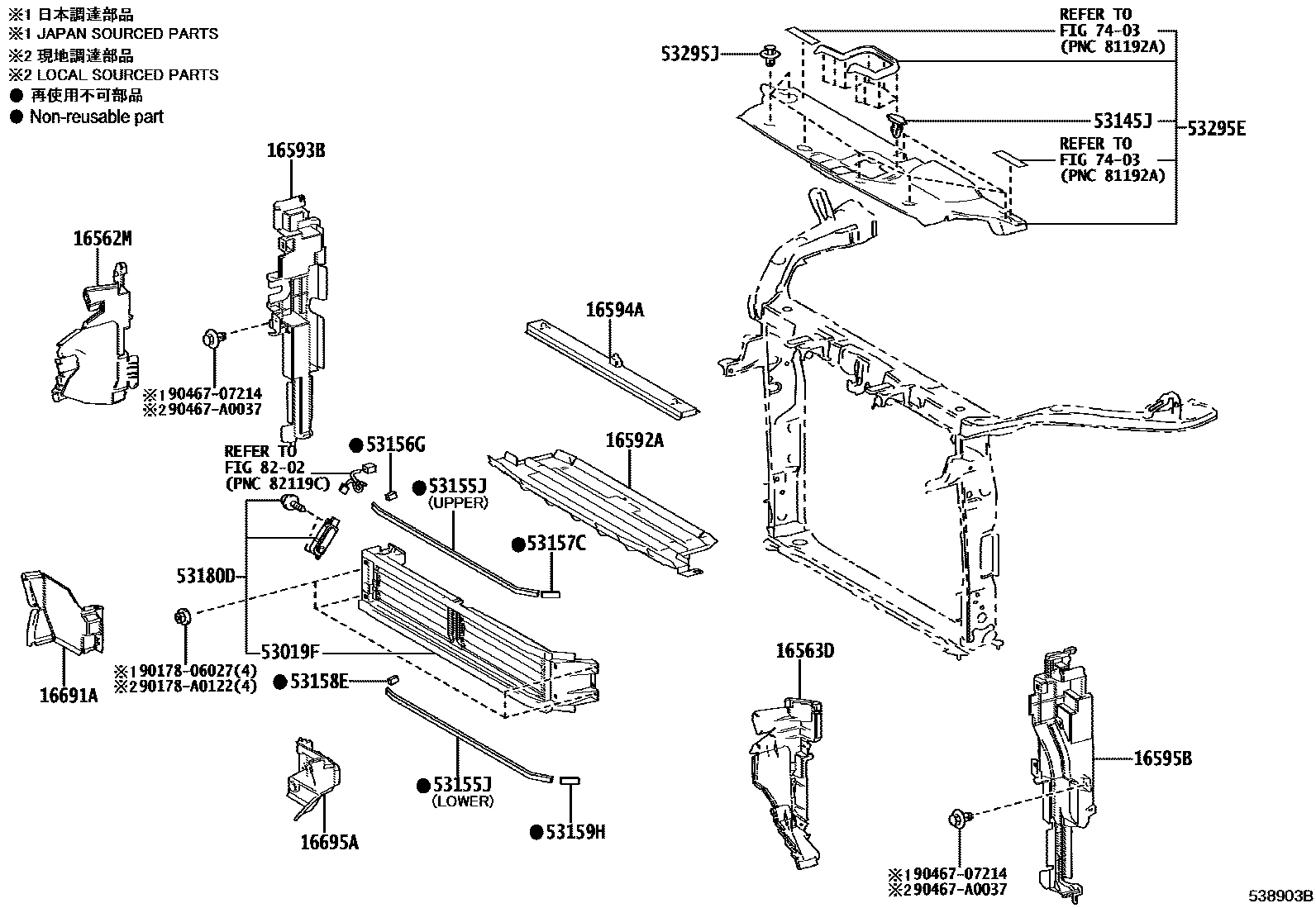

FRONT FENDER APRON & DASH PANEL

Parts diagram

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-F0080i202306

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-F0070i202306

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0190i202306

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0580i202306

main16593-F0590i202306

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0160i202306

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0600i202306

main16595-F0610i202306

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0250i202306

main16691-F0260i202306

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0280i202306

main16695-F0290i202306

main16695-F0320i202306

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-08011i202306-202406

main53019-08012i202406

53145JCLIP, RADIATOR GRILLE

main53145-60030×9i202306

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0E030i202306

UPPER

main53155-0E160i202306

LOWER

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-0E010i202306

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-0E010i202306

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-0E030i202306

53159HSEAL, RADIATOR GRILLE, NO.5

main53159-0E010i202306

53180DSHUTTER ASSY, RADIATOR

main53180-08012i202306-202405

main53180-08013i202406

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0E170i202306

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-10216×7i202306

(J)

main90467-A0051×7i202306

(L)

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9017806027

main90178-06027

90178A0122

main90178-A0122

9046707214

main90467-07214

90467A0037

main90467-A0037

24 parts on this diagram · 5 diagrams in section
