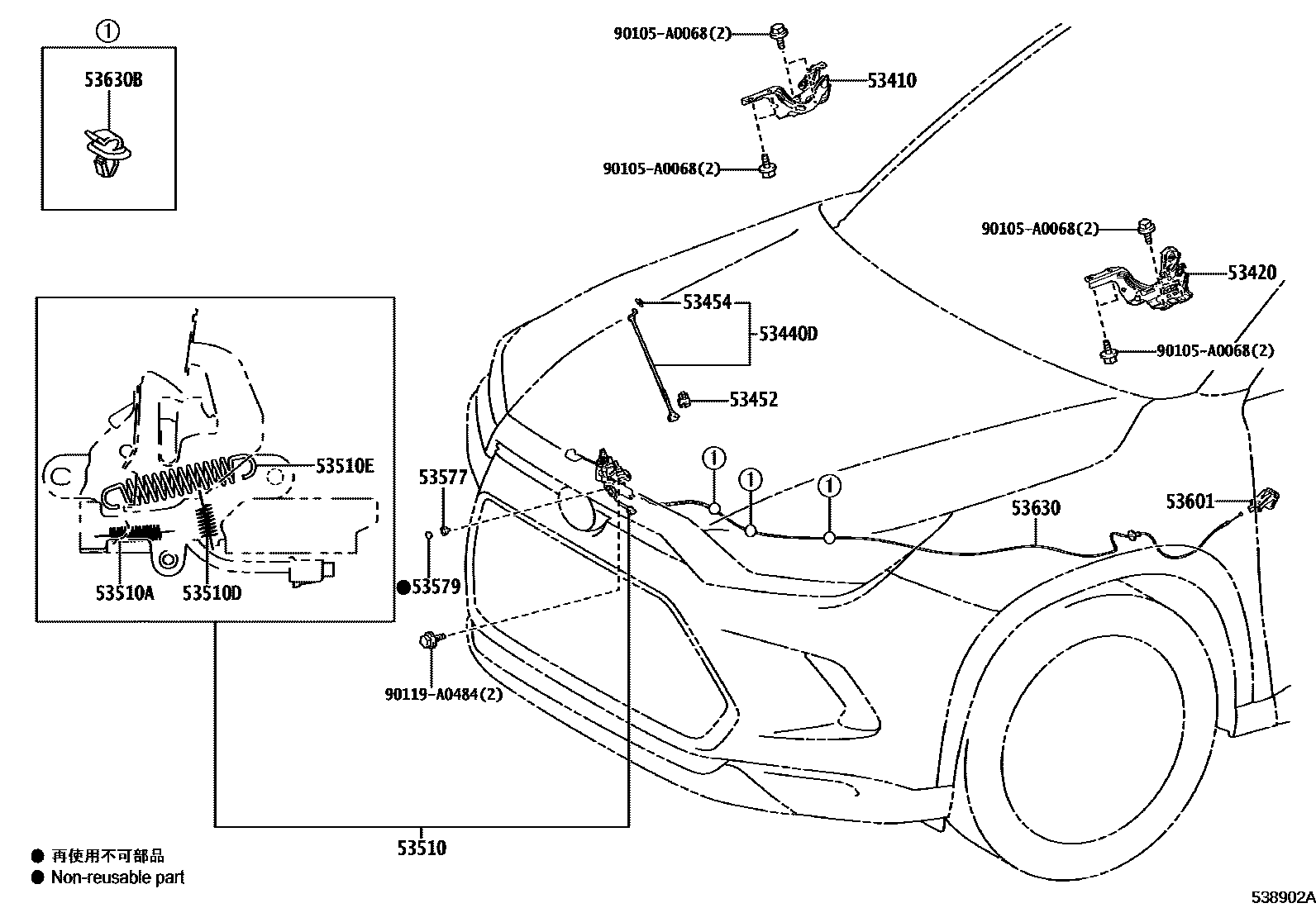

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0E420iAASH1#,TASA1#,TASH15202306

53420HINGE ASSY, HOOD, LH

main53420-0E420iAASH1#,TASA1#,TASH15202306

53440DSUPPORT ASSY, HOOD

main53440-0E080iAASH1#,TASA1#,TASH15202306

53452HOLDER, HOOD STAY

main53452-02220iAASH1#,TASA1#,TASH15202306

53454CLIP, HOOD SUPPORT ROD

main53454-52010iAASH1#,TASA1#,TASH15202306

53510LOCK ASSY, HOOD

main53510-0E210iAASH1#,TASA1#,TASH15202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAASH1#,TASA1#,TASH15202306

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAASH1#,TASA1#,TASH15202306

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAASH1#,TASA1#,TASH15202306

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iAASH1#,TASA1#,TASH15202306-202411

main53577-0E011iAASH1#,TASA1#,TASH15202412

53579CAP, HOOD LOCK NUT

main53579-0E010iAASH1#,TASA1#,TASH15202306

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02040-C0iAASH1#,TASA1#..G,M,N; TASA15,TASH15..V,Z202306

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0E160iAASH1#,TASA1#,TASH15202306

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iAASH1#,TASA1#,TASH15202306

90105A0068

main90105-A0068

90119A0484

main90119-A0484

16 parts on this diagram · 1 diagram in section
