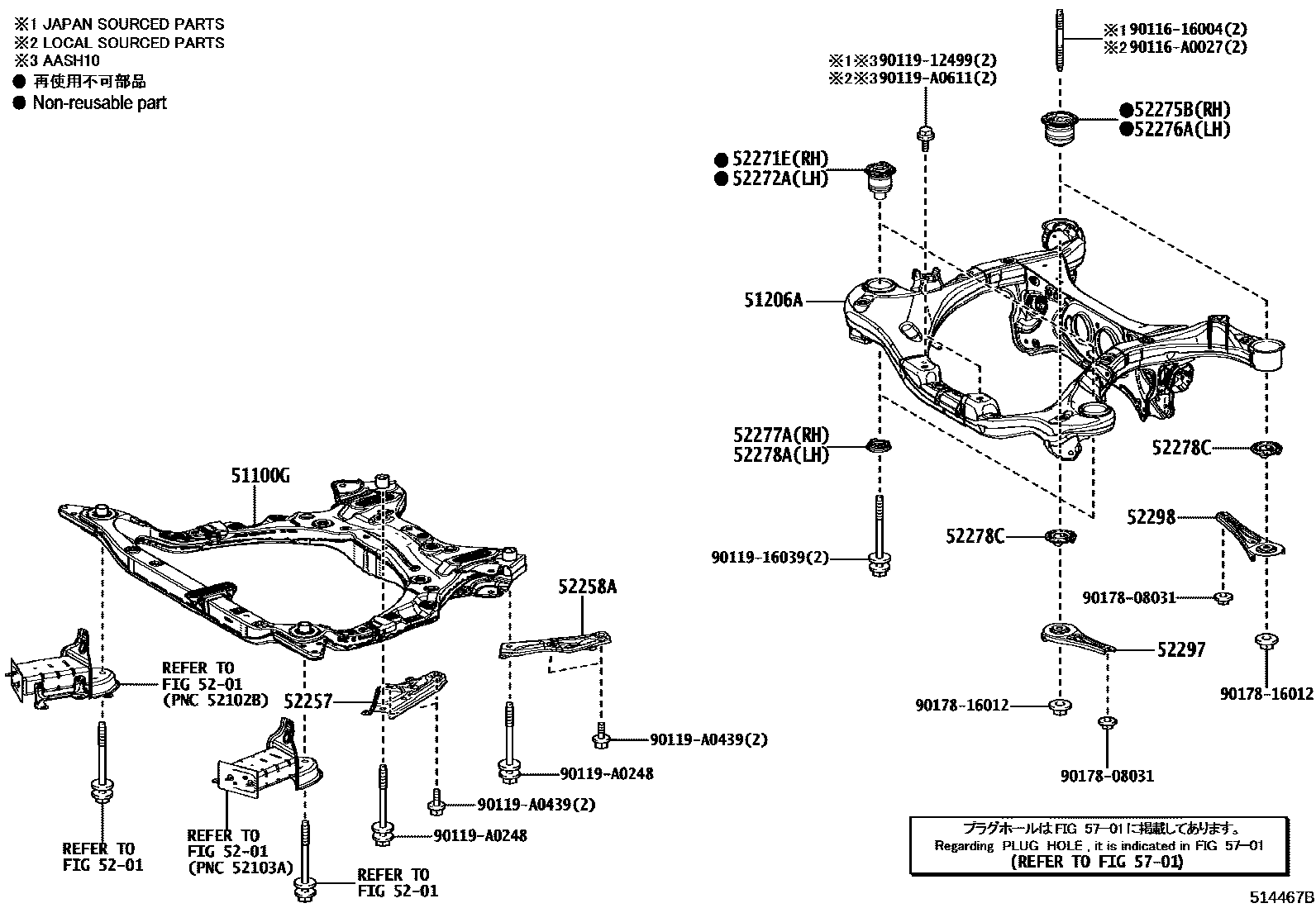

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1SUSPENSION CROSSMEMBER 0004 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E140iAASH1#,TASA1#,TASH15202306

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E170iTASA1#202306

main51206-0E180iAASH1#202306

main51206-0E200iTASH15202306

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040iAASH1#,TASA1#,TASH15202306

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040iAASH1#,TASA1#,TASH15202306

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E110iTASH15202306

main52271-0E120iAASH1#,TASA1#202306

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E110iTASH15202306

main52271-0E120iAASH1#,TASA1#202306

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E110iAASH1#,TASA1#,TASH15202306

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E060iAASH1#,TASA1#,TASH15202306

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E110iTASH15202306

main52277-0E120iAASH1#,TASA1#202306

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E110iTASH15202306

main52277-0E120iAASH1#,TASA1#202306

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-0E020iAASH1#,TASA1#,TASH15202306

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0E010iAASH1#,TASA1#,TASH15202306

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-0E010iAASH1#,TASA1#,TASH15202306

5701HOLE PLUG

→ Go to FIG 57-01

9011616004

main90116-16004

90116A0027

main90116-A0027

9011912499

main90119-12499

9011916039

main90119-16039

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90119A0611

main90119-A0611

9017808031

main90178-08031

9017816012

main90178-16012

24 parts on this diagram · 6 diagrams in section
