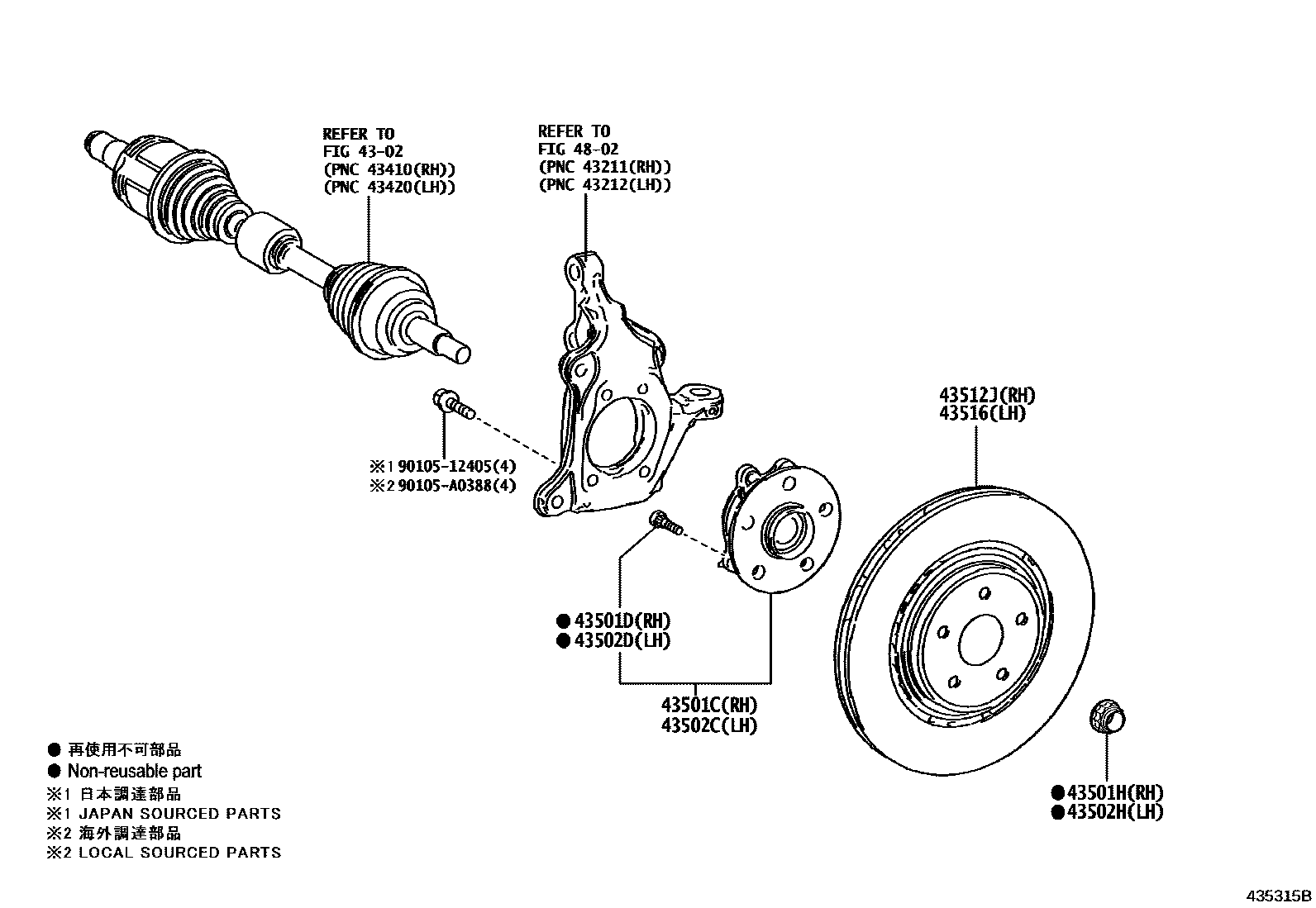

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0E050iAASH1#,TASA1#,TASH15202306

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5iAASH1#,TASA1#,TASH15202306

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iAASH1#,TASA1#,TASH15202306

(L)

main90177-22001iAASH1#,TASA1#,TASH15202306

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0E050iAASH1#,TASA1#,TASH15202306

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5iAASH1#,TASA1#,TASH15202306

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iAASH1#,TASA1#,TASH15202306

(L)

main90177-22001iAASH1#,TASA1#,TASH15202306

(J)

43512JDISC, FRONT RH

main43512-0E110iTASH15202306

main43512-0E120iAASH1#,TASA1#202306

43516DISC, FRONT LH

main43512-0E110iTASH15202306

main43512-0E120iAASH1#,TASA1#202306

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105A0388

main90105-A0388

12 parts on this diagram · 1 diagram in section
