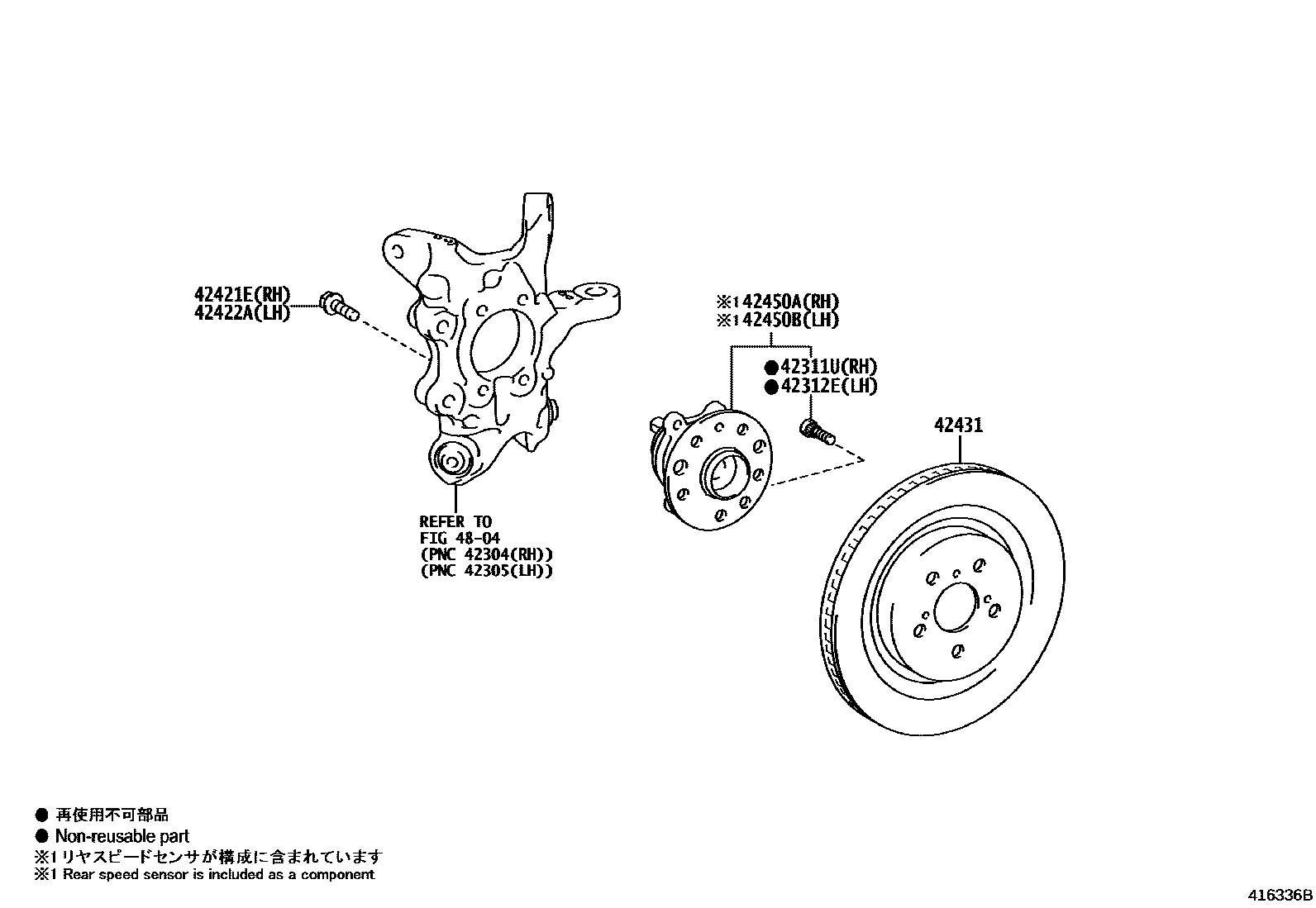

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083202306

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083202306

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017202306

main90110-A0012202306

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017202306

main90110-A0012202306

42431DISC, REAR

main42431-0E110202306

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E090202306

main42450-0E120202306

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E090202306

main42450-0E120202306

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
