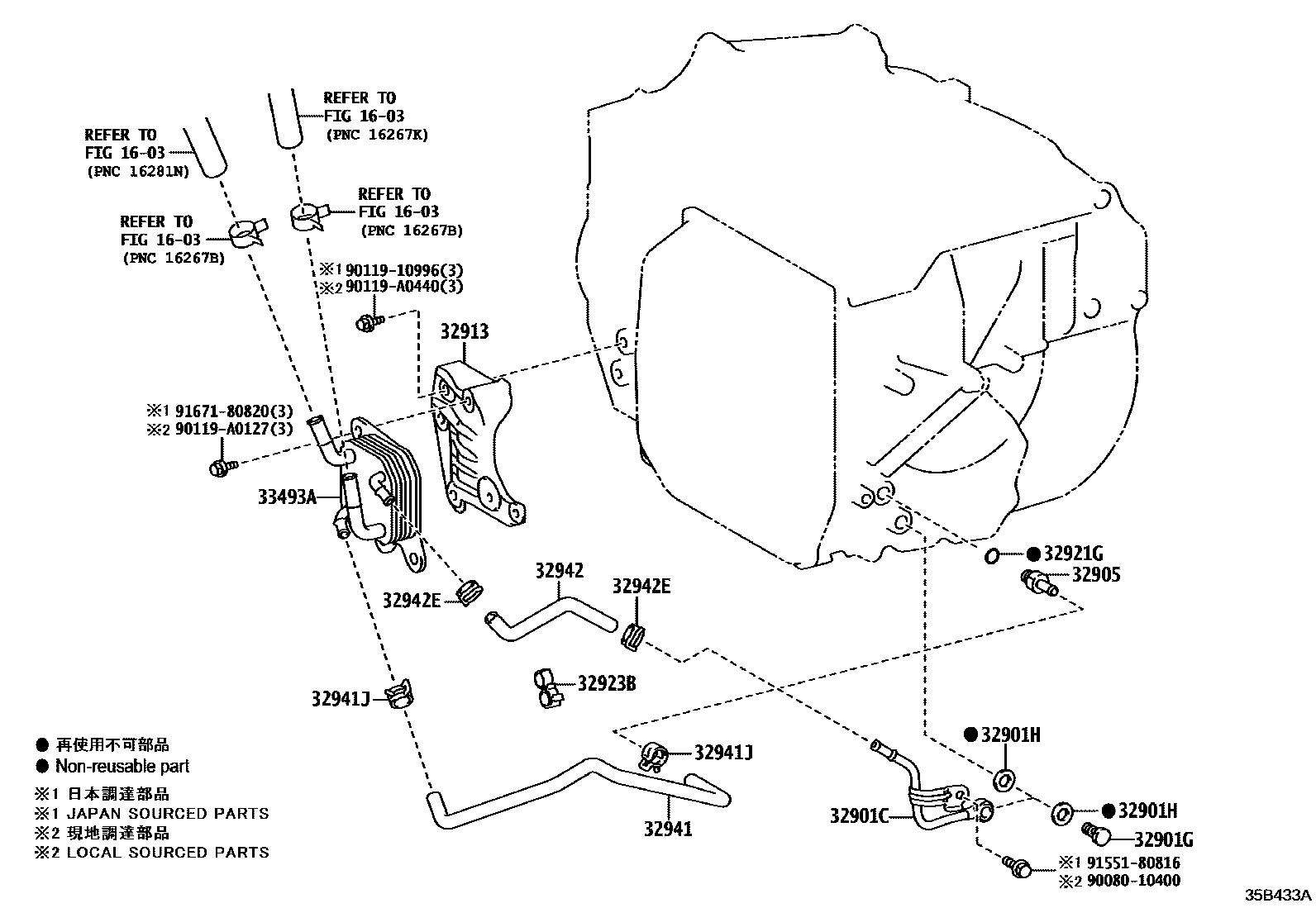

OIL COOLER & TUBE (ATM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iTASA1#202306

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iTASA1#202306

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iTASA15202306

(J)

main90430-A0007×2iTASA1#202306

(L)

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iTASA1#202306

32913BRACKET, OIL COOLER

main32913-0E100iTASA1#202306

(L)

main32913-78061iTASA1#202306

(J)

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iTASA1#202306

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-48100iTASA1#202306

32941HOSE, OIL COOLER INLET, NO.1

main32941-F6010iTASA1#202306

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iTASA1#202306

(J)

main90466-A0014×2iTASA1#202306

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-F6010iTASA1#202306

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iTASA1#202306

(J)

main90466-A0014×2iTASA1#202306

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-F6010iTASA1#202306

9008010400

main90080-10400

9011910996

main90119-10996

90119A0127

main90119-A0127

90119A0440

main90119-A0440

9155180816

main91551-80816

9167180820

main91671-80820

19 parts on this diagram · 1 diagram in section
