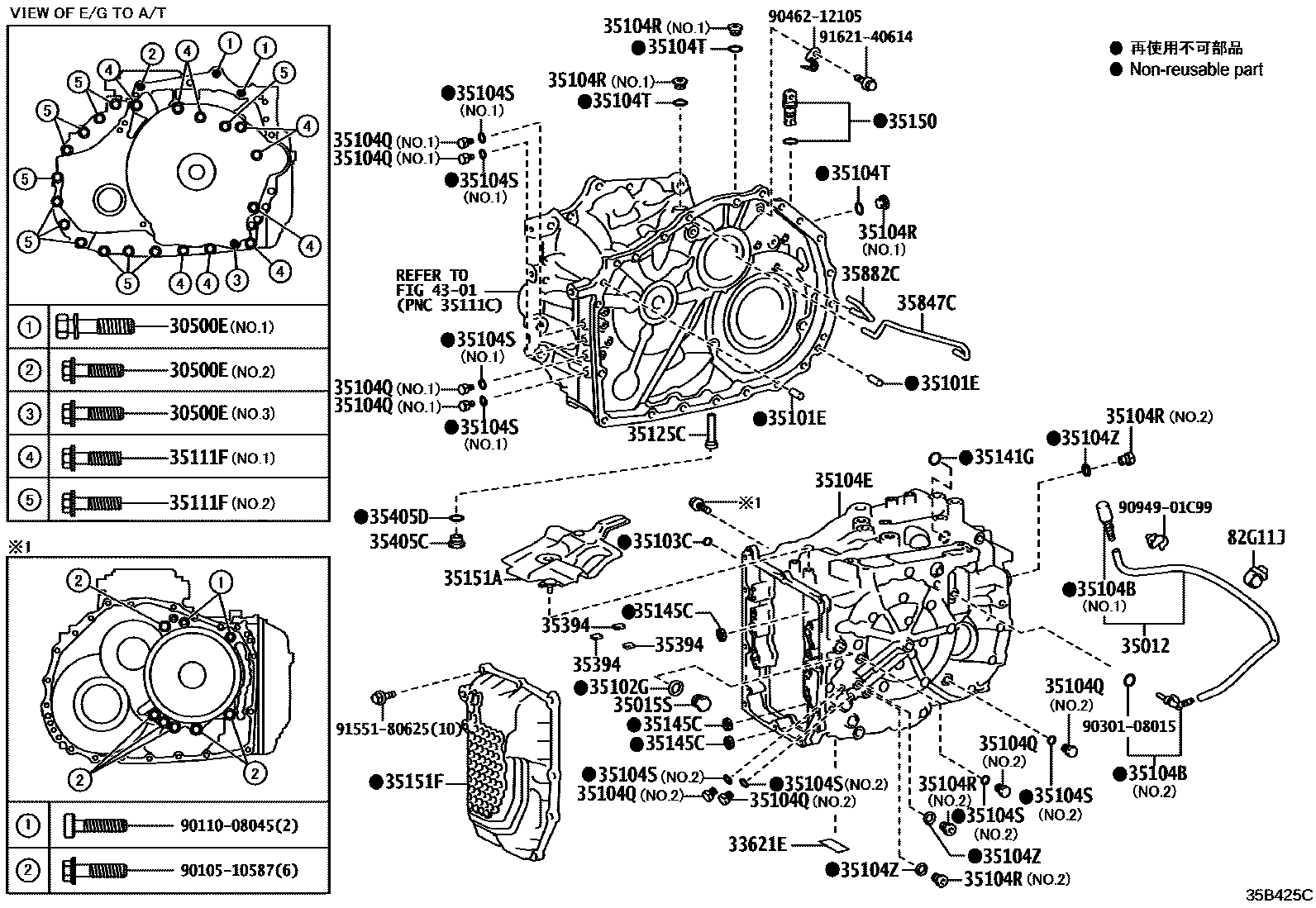

TRANSMISSION CASE & OIL PAN (ATM)

0001 1UA81F,(AISIN:REFER FIG 35-01)0002 1UA81E,UA81F,(TMMWV:REFER FIG

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10591iTASA1#202306

*10-1.25PX45-36,NO.2,(L)

main90105-A0225×2iTASA1#202306

*12-1.25PX50-30,NO.1,(L)

main90105-A0269iTASA1#202306

*8-1.25PX35-22,NO.3,(L)

main90105-A0393iTASA1#202306

*10-1.25PX45-36,NO.2,(J)

main91552-81250×2iTASA1#202306

*12-1.25PX50-30,NO.1,(J)

main91553-80830iTASA1#202306

*8-1.25PX35-22,NO.3,(J)

33621ELABEL, TRANSAXLE OIL NOTICE

main33621-28021iTASA10202306-202405

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-78010iTASA1#202306

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iTASA15202306

main90341-A0003iTASA1#202306

TMMWV:REFER 35-01

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iTASA1#202306

TMMWV:REFER 35-01

main90250-10021×2iTASA15202306

AISIN:REFER 35-01

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iTASA15202306

main90430-A0003iTASA1#202306

TMMWV:REFER 35-01

35103CRING, O

main90301-06021iTASA1#202306

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03216iTASA1#202306

NO.1

main90930-03230iTASA15202306

NO.2,AISIN:SEE 35-01

main90930-A3009iTASA1#202306

NO.2,TMMWV:SEE 35-01

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-0E010iTASA1#202306

TMMWV:REFER 35-01

main35104-78010iTASA15202306

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×4iTASA15202306

NO.1

main90341-A0001×4iTASA1#202306

NO.1,TMMWV:SEE 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iTASA15202306

NO.1

main90341-A0005×3iTASA1#202306

NO.1,TMMWV:SEE 35-01

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×4iTASA1#202306

NO.1,TMMWV:SEE 35-01

main90301-06196×4iTASA15202306

NO.1,AISIN:SEE 35-01

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008×3iTASA1#202306

NO.1

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iTASA1#202306

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×6iTASA1#202306

*8-1.25PX40-22,NO.1,TMMWV:SEE 35-01

main91551-00835×12iTASA15202306

*8-1.25PX35-22,NO.2,AISIN:SEE 35-01

main91551-00840×3iTASA1#; TASA15202306

*8-1.25PX40-22,NO.1,AISIN:SEE 35-01; *8-1.25PX40-22,NO.2,TMMWV:SEE 35-01

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06130iTASA1#202306

TMMWV:REFER 35-01

main35125-48090iTASA15202306

AISIN:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iTASA15202306

AISIN:REFER 35-01

main90301-A0016iTASA1#202306

TMMWV:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-33020×3iTASA1#202306

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iTASA1#202306

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-78010iTASA1#202306

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iTASA1#202306-202310

TMMWV:REFER 35-01

main35151-33161iTASA15202306

AISIN:REFER 35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iTASA1#202306

TMMWV:REFER 35-01

main35394-48010×3iTASA15202306

AISIN:REFER 35-01

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iTASA1#202306

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iTASA15202306

AISIN:REFER 35-01

main90430-A0003iTASA1#202306

TMMWV:REFER 35-01

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iTASA1#202306

TMMWV:REFER 35-01

main35847-48030iTASA15202306

AISIN:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iTASA1#202306

TMMWV:REFER 35-01

main35882-48030iTASA15202306

AISIN:REFER 35-01

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

82G11JCLAMP, WIRING HARNESS

main82711-2D350iTASA1#202306

9010510587

main90105-10587

9011008045

main90110-08045

9030108015

main90301-08015

9046212105

main90462-12105

9094901C99

main90949-01C99

9155180625

main91551-80625

9162140614

main91621-40614

35 parts on this diagram · 2 diagrams in section
