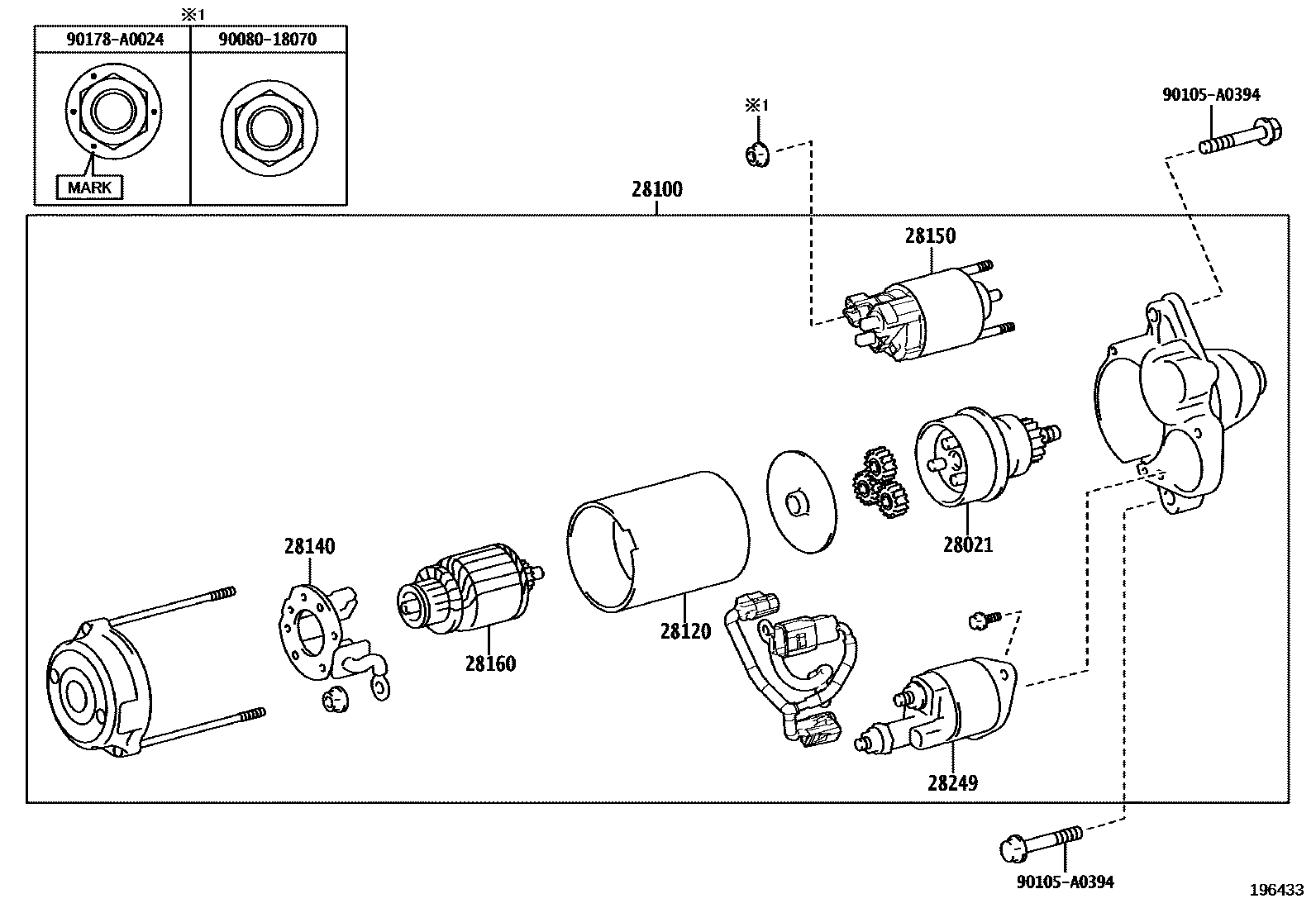

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25070iT24AFTS..TASA1#202306

28100STARTER ASSY

main28100-F0140iT24AFTS..TASA1#202306

12V 1.5KW

28120YOKE ASSY, STARTER

main28120-25070iT24AFTS..TASA1#202306

28140HOLDER ASSY, STARTER BRUSH

main28140-25120iT24AFTS..TASA1#202306

28150SWITCH ASSY, MAGNET STARTER

main28150-47250iT24AFTS..TASA1#202306

28160ARMATURE ASSY, STARTER

main28160-25120iT24AFTS..TASA1#202306

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iT24AFTS..TASA1#202306

9008018070

main90080-18070

90105A0394

main90105-A0394

90178A0024

main90178-A0024

10 parts on this diagram · 1 diagram in section
