STANDARD TOOL

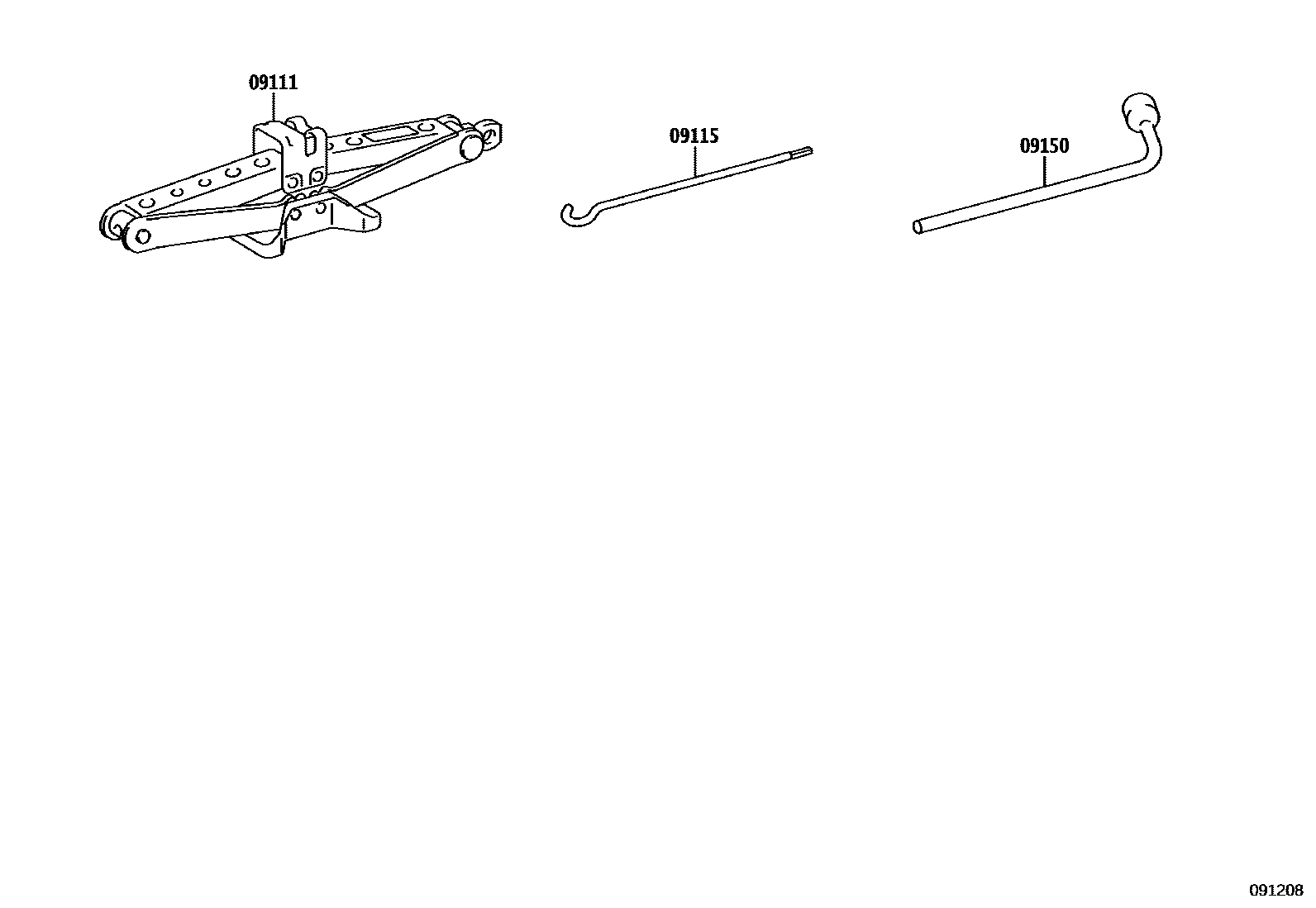

Parts diagram

09111JACK SUB-ASSY

main09111-0E052i202306

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010i202306

09150WRENCH, HUB NUT BOX

main09150-0E020i202306

3 parts on this diagram · 1 diagram in section
