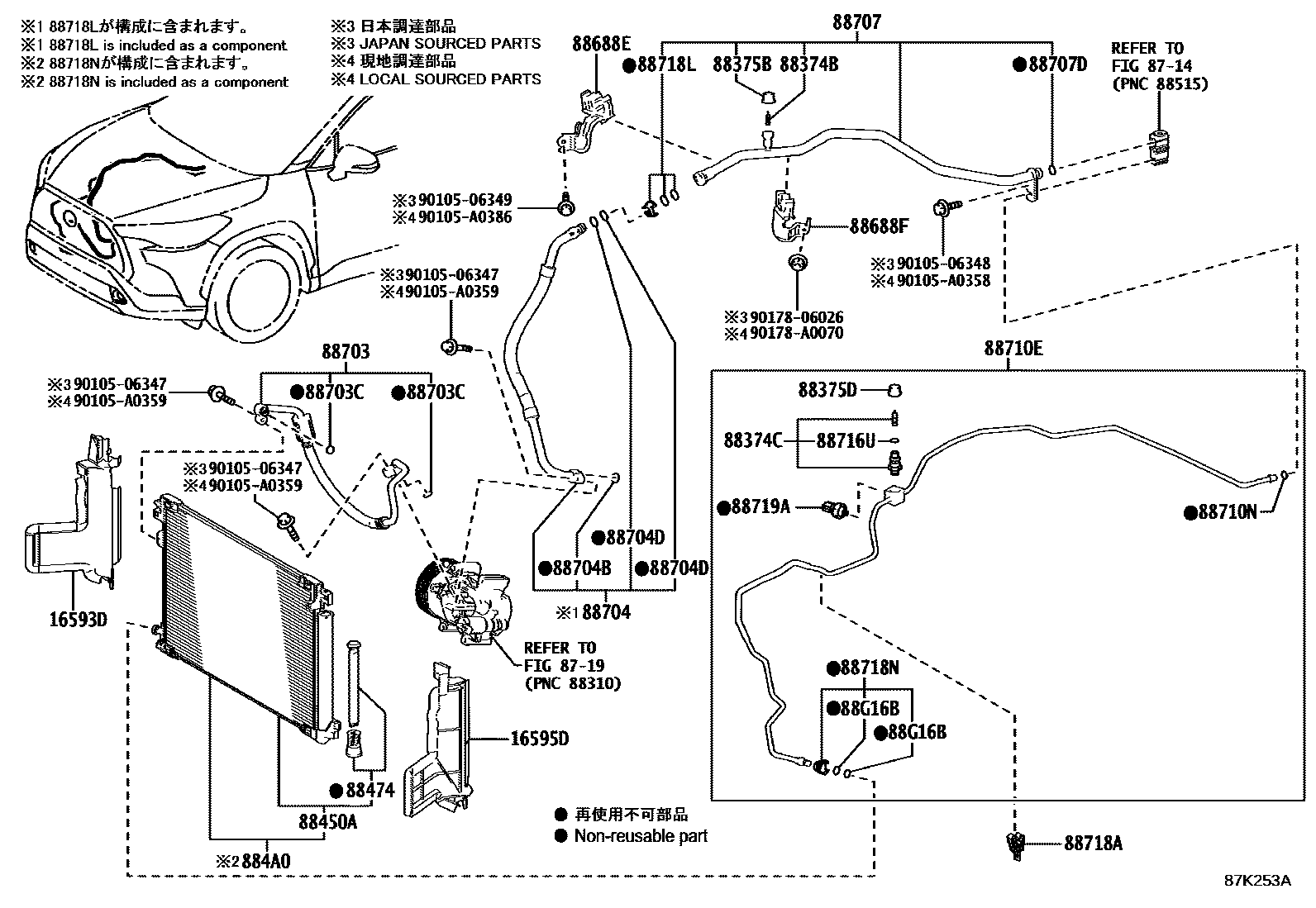

HEATING & AIR CONDITIONING - COOLER PIPING
16593DGUIDE, RADIATOR AIR, NO.1 RH
16595DGUIDE, RADIATOR AIR, NO.1 LH
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88450ASUB CONDENSER ASSY
884A0CONDENSER ASSY, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707PIPE SUB-ASSY, SUCTION
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=10.6,OD=14.16
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88G16BRING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3; ID=6.7,OD=10.3,MEXICO SPEC
9010506347
main90105-06347
9010506348
main90105-06348
9010506349
main90105-06349
90105A0358
main90105-A0358
90105A0359
main90105-A0359
90105A0386
main90105-A0386
9017806026
main90178-06026
90178A0070
main90178-A0070
36 parts on this diagram · 2 diagrams in section
