SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0A010iMXGA1#,MXGH15..LE,SE,XLE,XSE202412

AUDIO-ENTRY 8INCH & JBL 9SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-02B40×2iMXGA1#,MXGH15202211-202412

main86160-0WS00×2iMXGA1#..LE,XLE202109-202211

AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

86160BSPEAKER ASSY, REAR

main86160-02B40×2iMXGA1#,MXGH15202412

main86160-0WY50×2iMXGA1#..LE,XLE202109-202211

AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86150-06060×2iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

AUDIO-ENTRY 8INCH & JBL & 9SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-0R010×2iMXGA1#,MXGH15202211-202412

main86150-0W670×2iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

AUDIO-ENTRY 8INCH & JBL & 9SPEAKER

9008015074

main90080-15074

90119A0233

main90119-A0233

90159A0034

main90159-A0034

9018906227

main90189-06227

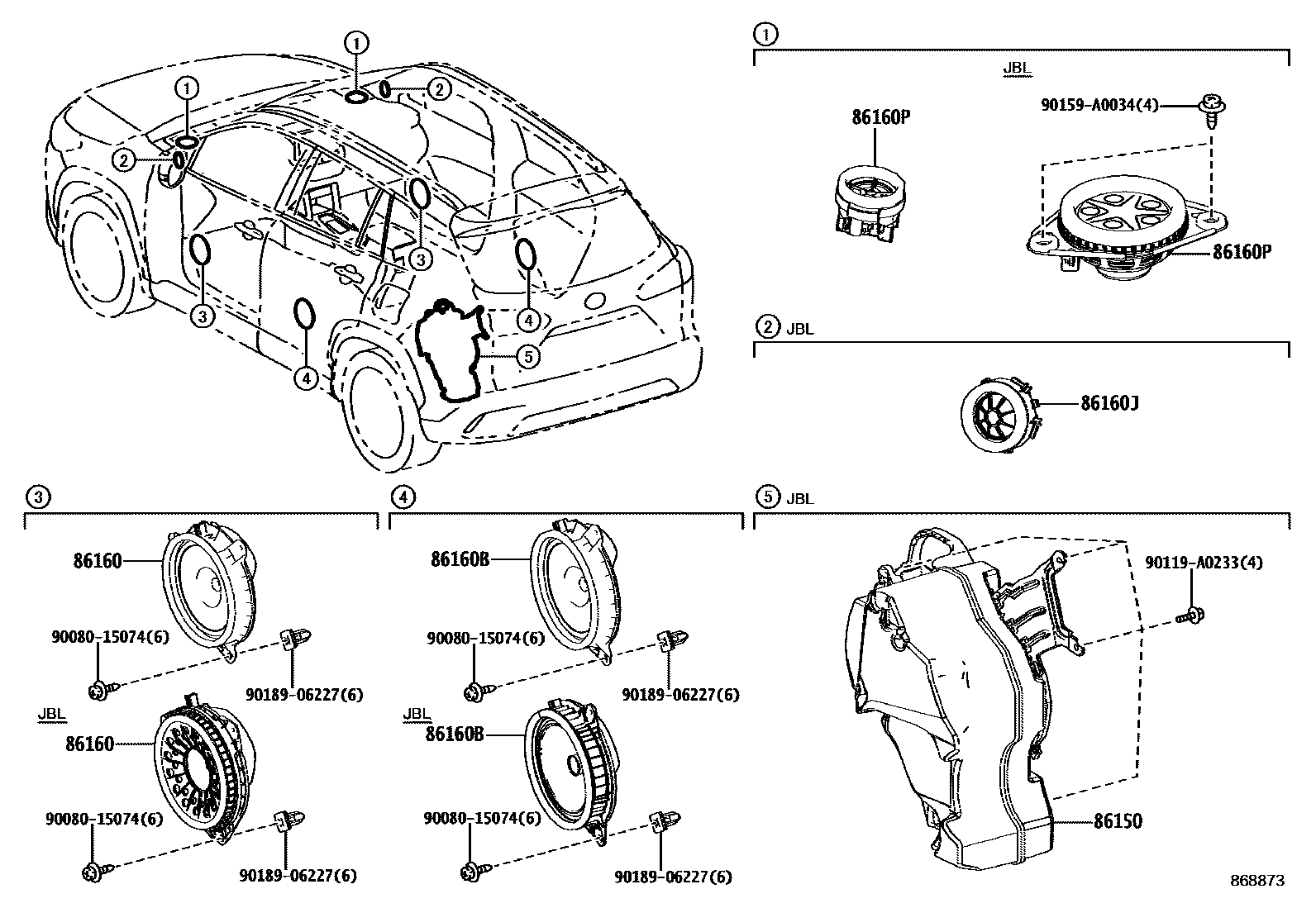

9 parts on this diagram · 1 diagram in section
