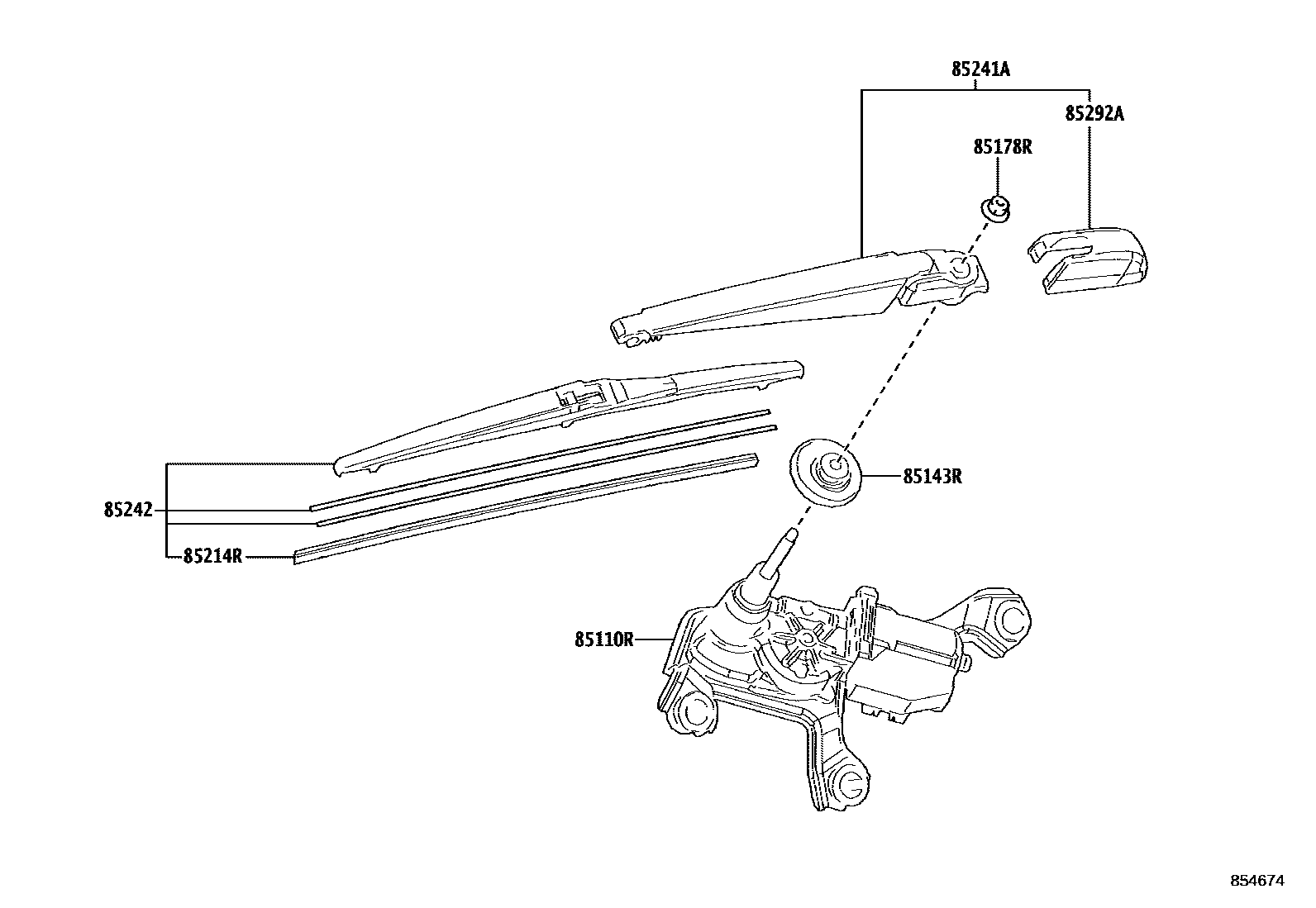

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0A040iMXGA1#..L202211-202412

CANADA SPEC

main85130-0A040iMXGA1#..LE,XLE202109-202211

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main85143-28070iMXGA1#..LE,XLE202109-202211

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main90179-06158iMXGA1#..LE,XLE202109-202211

main90182-A0012iMXGA1#..LE,XLE202109-202412

##

main90182-A0012iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC,##

85214RRUBBER, REAR WIPER

main85214-0A150iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main85214-0A150iMXGA1#..LE,XLE202109-202211

85241AARM, REAR WIPER

main85241-0A040iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main85241-0A040iMXGA1#..LE,XLE202109-202211

85242BLADE, RR WIPER

main85242-0A030iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main85242-0A030iMXGA1#..LE,XLE202109-202211

85292ACAP, REAR WIPER ARM HEAD

main85292-02060iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

CANADA SPEC

main85292-02060iMXGA1#..LE,XLE202109-202211

7 parts on this diagram · 1 diagram in section
