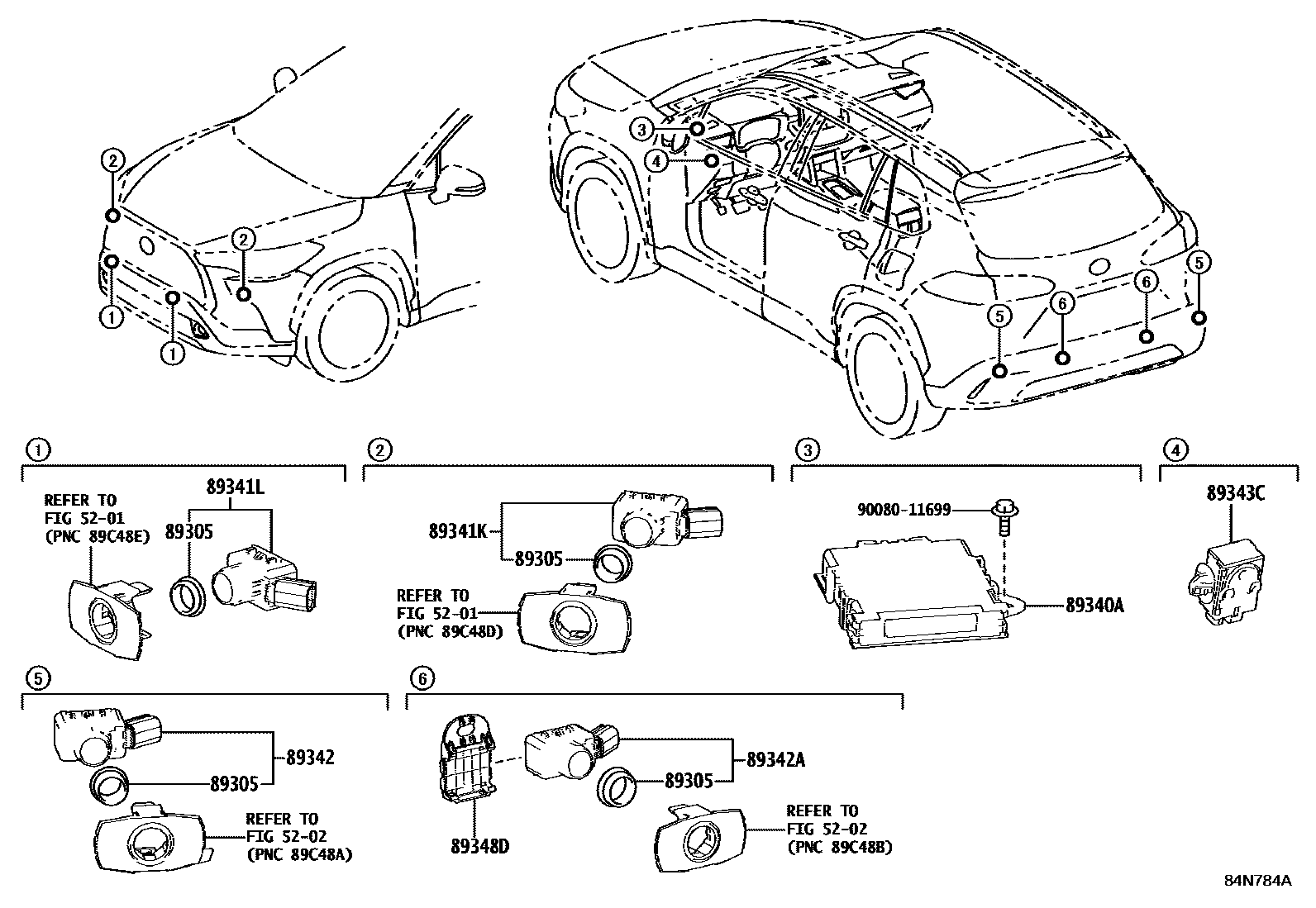

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iMXGA1#..XLE202109-202211

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0A020iMXGA1#..XLE202109-202211

*614

main89340-0A080iMXGA1#,MXGH15..XLE202211-202311

*614

main89340-0A090iMXGH15..XSE202305-202412

*614

main89340-0A190iMXGA1#,MXGH15..XLE202311-202412

*614

main89340-0A191iMXGA1#,MXGH15..XLE,XSE202412

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-49×2iMXGA1#,MXGH15..XLE; MXGH15..XSE202412

MZD-46V-SOUL RED CRYSTAL,D25; MZD-46V-SOUL RED CRYSTAL,D25 ,D28

main89341-K0060-A4×2iMXGA1#..XLE202109-202211

PLATINUM WHITE PEARL MC.,089

main89341-K0060-D5×2iMXGA1#..XLE202109-202211

RED M.M.,3R3

main89341-K0060-F0×2iMXGH15..XSE202305-202407

BRASS GOLD ME.,D18

main89341-K0060-G3×2iMXGA1#,MXGH15..XLE,XSE202211-202412

GREEN M.M.,6X5

main89341-K0060-J0×2iMXGA1#..XLE202109-202211

DK.BLUE M.M.,8W7

main89341-K0060-P1×2iMXGA1#,MXGH15..XLE,XSE202412

CELESTITE GRAY ME.,1K3

main89341-K0060-S3×2iMXGA1#..XLE202109-202211

MZD-45P-SONIC SILVER MET.,D10

main89341-K0060-S4×2iMXGA1#..XLE202109-202211

MZD-41W-JET BLACK MICA,D11

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0×2iMXGA1#,MXGH15..XLE,XSE202412

DUMMY-MAT BLACK

main89341-K0060-C0×2iMXGA1#..XLE202109-202211

DUMMY-MAT BLACK

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-50080-C0×2iMXGA1#,MXGH15..XLE,XSE202412

DUMMY-MAT BLACK

main89341-K0060-C0×2iMXGA1#..XLE202109-202211

DUMMY-MAT BLACK

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-50080-C0×2iMXGA1#,MXGH15..XLE,XSE202412

DUMMY-MAT BLACK

main89341-K0060-C0×2iMXGA1#..XLE202109-202211

DUMMY-MAT BLACK

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iMXGA1#..XLE202109-202211

89348DCLIP, ULTRASONIC SENSOR

main89348-50220×2iMXGA1#,MXGH15..XLE,XSE202211-202412

9008011699

main90080-11699

11 parts on this diagram · 1 diagram in section
