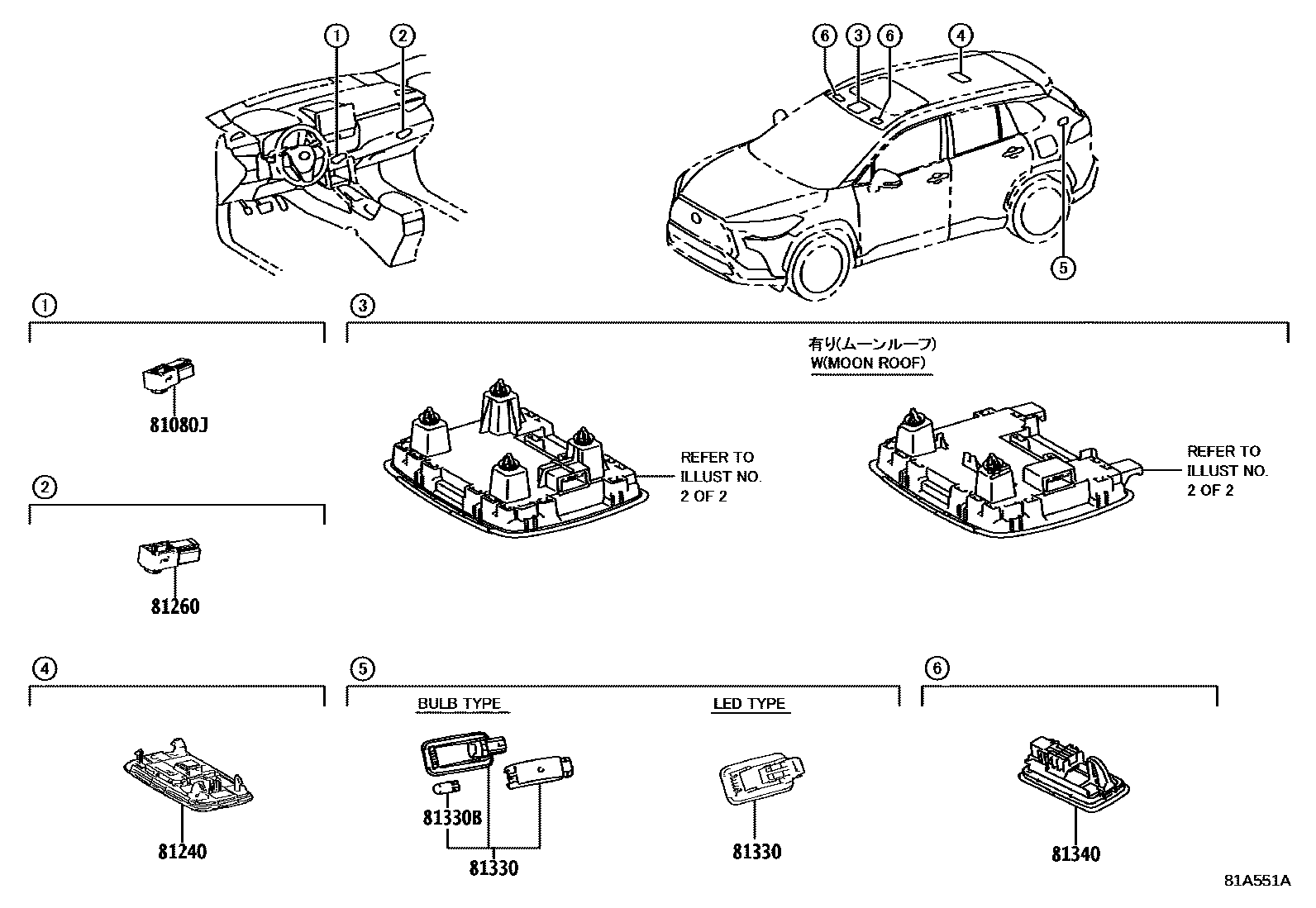

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iMXGA1#..XLE202109-202211

81240LAMP ASSY, ROOM, NO.1

main81240-48040-A0iMXGA1#,MXGH15..XLE202211-202412

FROMAGE,TRIM0#

main81240-48040-B0iMXGA1#..L; MXGA1#..LE; MXGA1#..XLE202109-202211

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#

main81240-48040-C1iMXGH15..S,SE; MXGH15..XSE202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

81260LAMP ASSY, GLOVE BOX

main81080-33290iMXGA1#,MXGH15..XLE,XSE202211-202412

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iMXGA1#202109-202211

main81330-11010iMXGA1#,MXGH15202211-202412

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iMXGA1#202109-202211

12V 5W

81340LAMP ASSY, VANITY

main81340-33170×2iMXGA1#,MXGH15..LE,SE,XLE,XSE202211-202412

6 parts on this diagram · 2 diagrams in section
