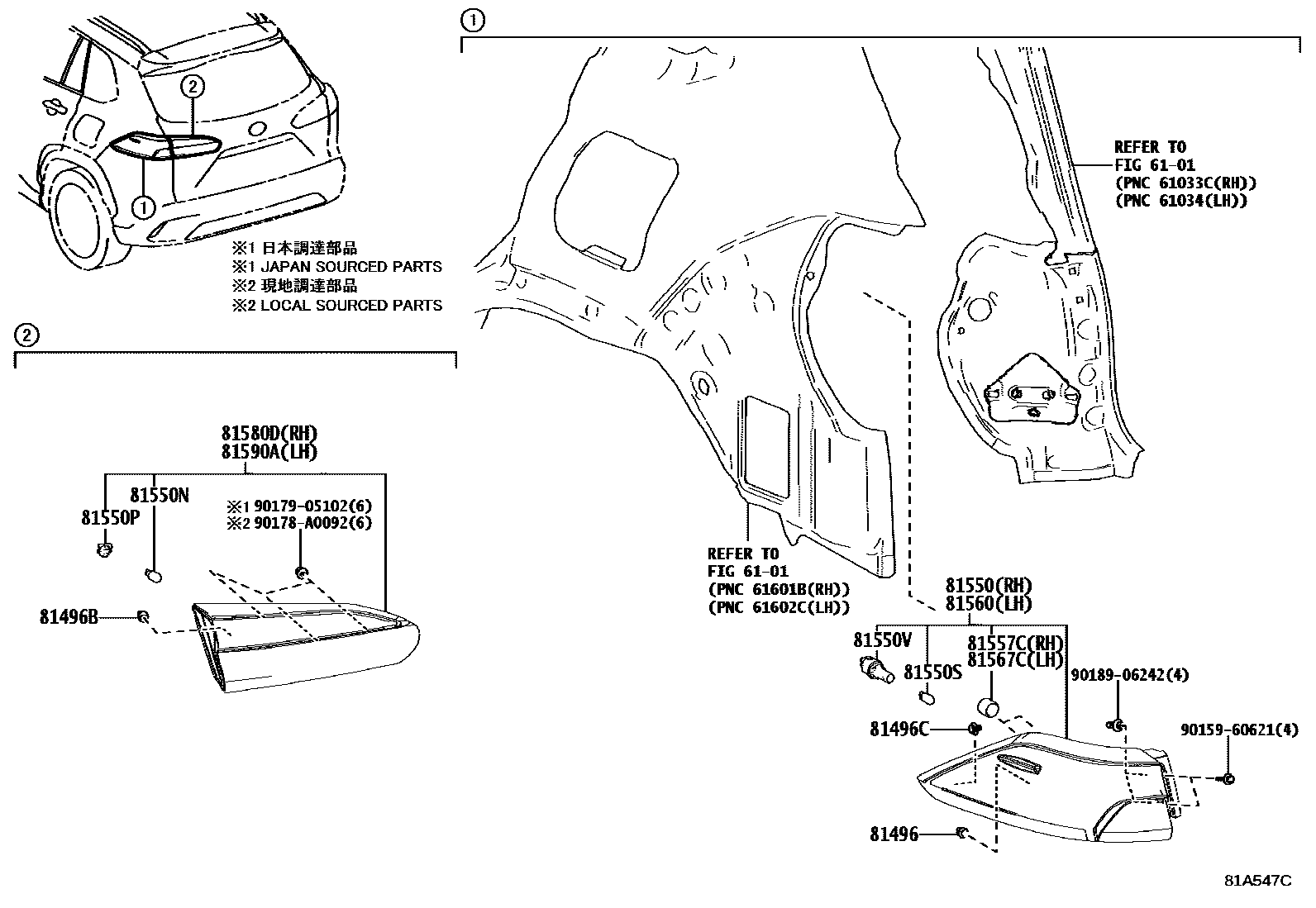

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-0E020×2iMXGA1#,MXGH15202412

(L)

main81496-52020×2iMXGA1#202109-202211

(J)

81496BGUIDE, REAR LAMP

main81496-0E020×2iMXGA1#,MXGH15202211-202412

(L)

main81496-52020×2iMXGA1#,MXGH15202211-202412

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iMXGA1#,MXGH15202211-202412

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0A160iMXGA1#,MXGH15..L,LE,S,SE202211-202412

main81550-0A170iMXGA1#,MXGH15..XLE,XSE202211-202412

main81550-0A260iMXGH15..SE202412

NIGHT SHADE EDITION

81550NBULB, BACK UP LAMP

main90981-11059×2iMXGA1#,MXGH15202412

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-99005×2iMXGA1#,MXGH15202412

81550SBULB, REAR SIDE MARKER LAMP

main90981-11069×2iMXGA1#,MXGH15..L,LE,S,SE202412

12V 5W

81550VSOCKET, REAR SIDE MARKER LAMP

main90075-60089×2iMXGA1#,MXGH15..L,LE,S,SE202412

81557CCOVER, REAR COMBINATION LAMP, RH

main90075-15512×2iMXGA1#,MXGH15..L,LE,S,SE; MXGA1#,MXGH15..XLE,XSE202211-202412

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0A160iMXGA1#..L,LE202109-202211

main81560-0A170iMXGA1#,MXGH15..XLE,XSE202412

main81560-0A260iMXGH15..SE202311-202412

NIGHT SHADE EDITION

81567CCOVER, REAR COMBINATION LAMP, LH

main90075-15512×2iMXGA1#,MXGH15202211-202412

81580DLAMP ASSY, REAR, RH

main81580-0A140iMXGA1#,MXGH15..L,LE,S,SE202211-202412

main81580-0A150iMXGA1#,MXGH15..XLE,XSE202211-202412

main81580-0A260iMXGH15..SE202412

NIGHT SHADE EDITION

81590ALAMP ASSY, REAR, LH

main81590-0A150iMXGA1#..L,LE202109-202211

main81590-0A160iMXGA1#..XLE202109-202211

main81590-0A270iMXGH15..SE202311-202412

NIGHT SHADE EDITION

9015960621

main90159-60621

90178A0092

main90178-A0092

9017905102

main90179-05102

9018906242

main90189-06242

18 parts on this diagram · 2 diagrams in section
