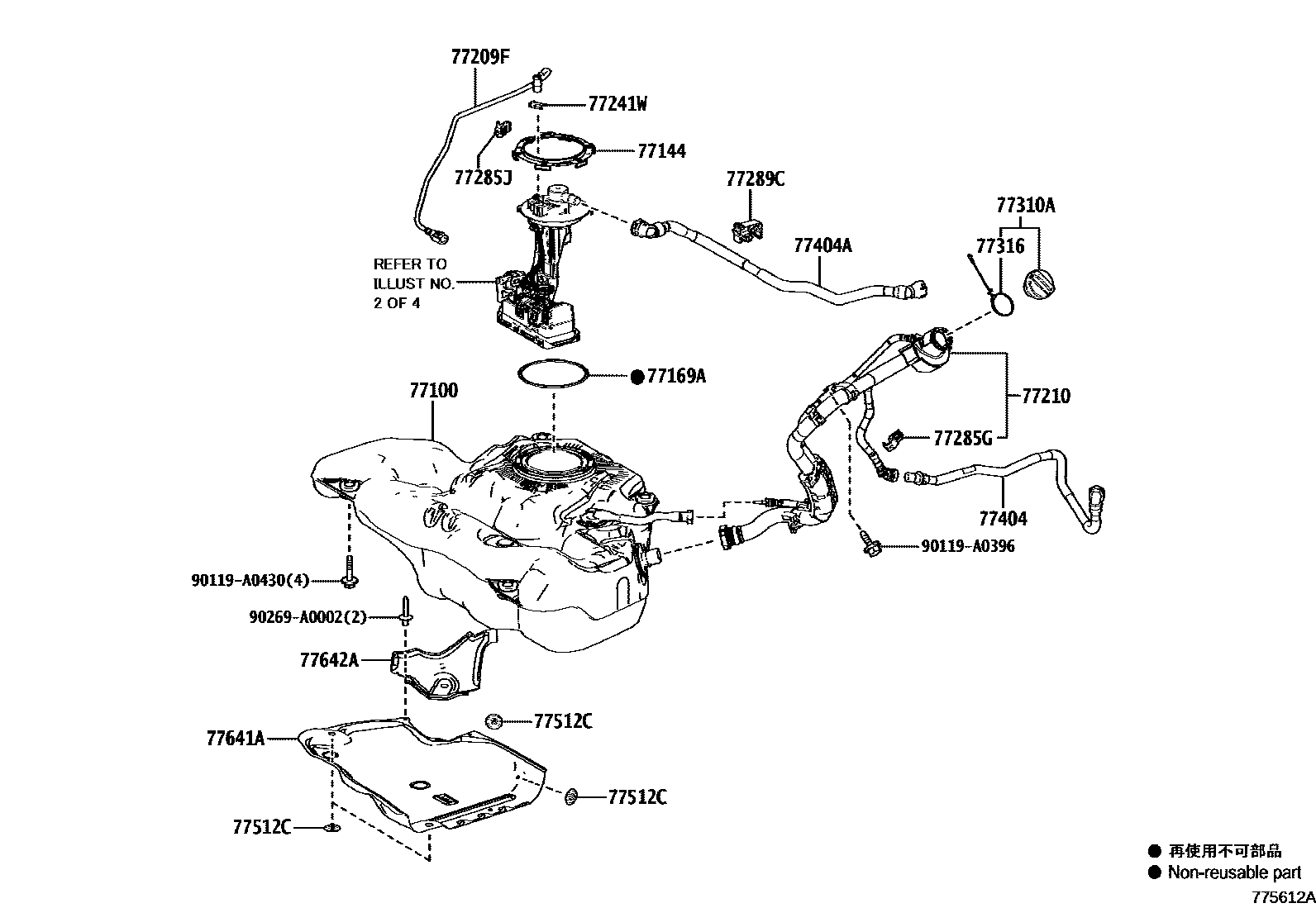

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK (MEXICO SPEC) 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL PUMP 0006 1FUEL PUMP (MEXICO SPEC) 0007 1FUEL PUMP 0008 1FUEL PUMP 0009 1FUEL TUBE 0010 1FUEL TUBE (MEXICO SPEC) 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL LID OPENER 0014 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-02C20iMXGA10202311-202412

main77001-0A120iMXGA10202109-202211

main77001-0A130iMXGA15202412

main77001-0A250iMXGH15202305-202412

main77001-0A210iMXGA10..LE,XLE202412

MEXICO SPEC

77144RETAINER, FUEL PUMP GAUGE

main77144-06040×2iMXGA10,MXGH15; MXGA15202412

77169AGASKET, FUEL SUCTION TUBE SET

main77169-06060iMXGA10; MXGA15202109-202211

main77169-02050iMXGA10..LE202109-202211

MEXICO SPEC

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0A120iMXGA10202109-202211

main77209-0A130iMXGA15202412

main77209-0A230iMXGH15202305-202412

77210PIPE ASSY, FUEL TANK FILLER

main77210-0A050iMXGA10202211-202311

main77210-0A130iMXGH15202305-202412

main77210-0A180iMXGA10202311-202412

main77210-0A100iMXGA10..LE,XLE202412

MEXICO SPEC

77241WCLIP, TUBE JOINT

main77241-02010×2iMXGA1#; MXGH15202412

77285GCLAMP, FUEL TUBE, NO.1

main77285-06510iMXGA1#,MXGH15202412

77285JCLAMP, FUEL TUBE, NO.1

main77285-06240iMXGA1#202109-202211

main77285-0A120iMXGH15202305-202412

77289CCLAMP, FUEL TUBE, NO.4

main77285-12210iMXGA15202109-202211

main77285-16130iMXGA10202211-202412

main77285-16170iMXGA15202412

main77285-76020iMXGH15202305-202412

77310ACAP ASSY, FUEL TANK

main77300-06090iMXGH15202305-202412

main77300-07040iMXGA1#202412

main77300-12020iMXGA10..LE202109-202211

MEXICO SPEC

77316GASKET, FUEL TANK CAP

main77316-06090iMXGA1#,MXGH15202412

main77316-52040iMXGA10..LE,XLE202412

MEXICO SPEC

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-0A060iMXGA1#202412

main77404-0A220iMXGH15202412

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-0A050iMXGA10202412

main77404-0A090iMXGA15202412

main77404-0A210iMXGH15202412

77512CBRACKET, FUEL TANK

main77512-06060×4iMXGA10,MXGH15; MXGA15202412

77641APROTECTOR, FUEL TANK, NO.1

main77606-0A020iMXGA15202109-202211

main77641-0A010iMXGA10202109-202211

main77641-0A120×2iMXGH15202412

(L)

main77641-47160×2iMXGH15202412

(J)

77642APROTECTOR, FUEL TANK, NO.2

main77642-0A010iMXGA10202211-202412

main77642-0A020iMXGA15202109-202211

90119A0396

main90119-A0396

90119A0430

main90119-A0430

90269A0002

main90269-A0002

19 parts on this diagram · 14 diagrams in section
